SDO HMI 2014-04-12 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.68 | 425.72 | 36.43 | 225.97 | 11.37 | 274.49 | -12.19 | 35.11 | 0.3603 | -776.4 | -366.2 | |
|
previous
or next observation for the same group /

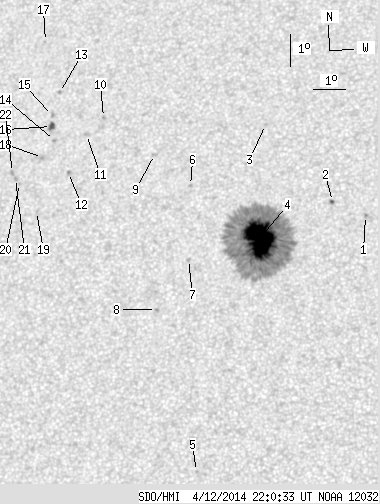

back to the solar disc SDO HMI 2014-04-12 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.65 | 11.84 | 278.18 | -8.50 | 25.60 | 0.3363 | -913.0 | -758.6 | |
| 0.79 | 1.77 | 0.42 | 0.93 | 12.30 | 277.14 | -9.54 | 27.64 | 0.3507 | 865.7 | 751.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 14.80 | 274.92 | -11.76 | 29.40 | 0.4032 | -765.0 | -586.6 | |
| 65.42 | 391.99 | 34.63 | 207.43 | 11.18 | 274.90 | -11.78 | 34.63 | 0.3539 | -1455.3 | -427.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 4.02 | 273.14 | -13.53 | 54.29 | 0.2888 | -734.0 | -533.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 12.91 | 272.64 | -14.04 | 36.65 | 0.3978 | -905.0 | -782.7 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 10.58 | 272.70 | -13.98 | 40.41 | 0.3680 | -813.0 | -651.8 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 9.04 | 271.75 | -14.92 | 45.17 | 0.3601 | -793.0 | -709.6 | |
| 0.00 | 2.38 | 0.00 | 1.30 | 13.93 | 271.43 | -15.25 | 37.39 | 0.4223 | -664.0 | -426.3 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 15.17 | 269.69 | -16.99 | 38.58 | 0.4542 | 938.0 | 780.0 | |
| 0.00 | 2.47 | 0.00 | 1.37 | 14.64 | 269.18 | -17.50 | 40.17 | 0.4529 | 742.0 | 608.9 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 13.44 | 268.68 | -17.99 | 42.77 | 0.4442 | 924.0 | 732.6 | |
| 0.00 | 1.59 | 0.00 | 0.90 | 16.02 | 268.17 | -18.51 | 39.76 | 0.4790 | 844.0 | 595.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 14.48 | 268.14 | -18.53 | 42.02 | 0.4616 | 875.0 | 748.6 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 15.29 | 268.01 | -18.67 | 41.05 | 0.4722 | 844.0 | 661.3 | |
| 2.47 | 4.24 | 1.38 | 2.37 | 14.93 | 268.01 | -18.67 | 41.56 | 0.4682 | 906.9 | 718.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 17.71 | 267.53 | -19.15 | 38.45 | 0.5045 | 649.0 | 485.2 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 13.95 | 267.80 | -18.88 | 43.36 | 0.4594 | 994.0 | 846.1 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 12.24 | 267.74 | -18.94 | 46.19 | 0.4414 | 646.0 | 558.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 13.15 | 267.11 | -19.57 | 45.63 | 0.4581 | 776.0 | 621.5 | |
| 0.00 | 1.77 | 0.00 | 0.98 | 13.31 | 266.96 | -19.71 | 45.58 | 0.4615 | 770.0 | 601.5 | |
| 0.00 | 2.21 | 0.00 | 1.23 | 13.51 | 266.85 | -19.83 | 45.44 | 0.4648 | 690.0 | 561.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
