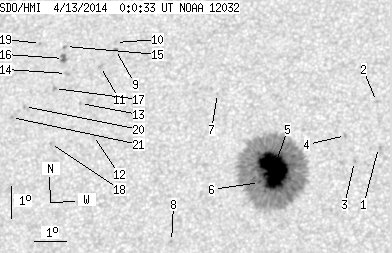

SDO HMI 2014-04-13 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.59 | 418.93 | 36.74 | 221.42 | 11.36 | 274.59 | -10.98 | 32.36 | 0.3493 | -796.7 | -356.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 00:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.46 | 11.83 | 278.16 | -7.42 | 22.71 | 0.3287 | -532.0 | -557.3 | |
| 0.00 | 1.41 | 0.00 | 0.75 | 13.29 | 278.05 | -7.52 | 21.34 | 0.3516 | -736.0 | -442.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 11.40 | 277.42 | -8.15 | 25.25 | 0.3272 | -809.0 | -703.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 12.23 | 277.12 | -8.45 | 24.99 | 0.3416 | 838.0 | 679.4 | |
| 66.85 | 391.84 | 35.25 | 206.58 | 11.20 | 274.91 | -10.66 | 31.99 | 0.3440 | -1418.8 | -417.6 | |
| 1.06 | -5.00 | 0.56 | -5.00 | 10.80 | 274.49 | -11.08 | 33.64 | 0.3422 | -839.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 13.64 | 273.05 | -12.53 | 32.54 | 0.3936 | -695.0 | -615.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 9.02 | 271.81 | -13.76 | 42.91 | 0.3466 | -764.0 | -606.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 15.14 | 269.68 | -15.89 | 36.78 | 0.4433 | 941.0 | 817.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 15.37 | 269.67 | -15.91 | 36.49 | 0.4462 | 551.0 | 518.8 | |
| 0.00 | 3.00 | 0.00 | 1.66 | 14.61 | 269.24 | -16.33 | 38.29 | 0.4410 | 892.0 | 665.2 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 12.42 | 269.17 | -16.41 | 41.81 | 0.4156 | 291.0 | 177.2 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 13.45 | 268.68 | -16.90 | 40.99 | 0.4327 | 794.0 | 616.8 | |
| 0.00 | 2.03 | 0.00 | 1.13 | 14.42 | 268.15 | -17.42 | 40.38 | 0.4495 | 884.0 | 736.1 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 15.29 | 268.05 | -17.53 | 39.28 | 0.4608 | 659.0 | 472.5 | |
| 1.68 | 4.06 | 0.93 | 2.26 | 14.90 | 268.01 | -17.56 | 39.88 | 0.4566 | 952.5 | 790.5 | |
| 0.00 | 1.77 | 0.00 | 0.98 | 13.95 | 267.80 | -17.78 | 41.65 | 0.4477 | 982.0 | 798.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 12.21 | 267.80 | -17.78 | 44.44 | 0.4280 | 725.0 | 602.3 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 15.41 | 267.21 | -18.36 | 40.40 | 0.4704 | 562.0 | 473.4 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 13.41 | 266.86 | -18.71 | 43.95 | 0.4515 | 695.0 | 618.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 13.08 | 266.46 | -19.11 | 45.08 | 0.4522 | 708.0 | 607.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
