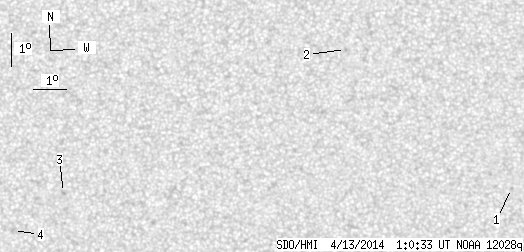

SDO HMI 2014-04-13 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.74 | 0.00 | 2.87 | -8.76 | 280.68 | -4.34 | 175.95 | 0.1291 | 8.8 | -159.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.12 | 290.94 | 5.92 | 240.06 | 0.1180 | 766.0 | 607.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -4.97 | 285.88 | 0.85 | 314.03 | 0.0208 | 869.0 | 683.9 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.20 | 277.27 | -7.75 | 114.42 | 0.1469 | -871.0 | -732.1 | |
| 0.00 | 2.12 | 0.00 | 1.07 | -10.32 | 275.70 | -9.32 | 116.75 | 0.1793 | -729.0 | -553.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
