SDO HMI 2014-04-13 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.17 | 421.89 | 33.19 | 221.97 | 11.46 | 274.50 | -9.42 | 28.39 | 0.3375 | -815.5 | -383.7 | |
|
previous
or next observation for the same group /

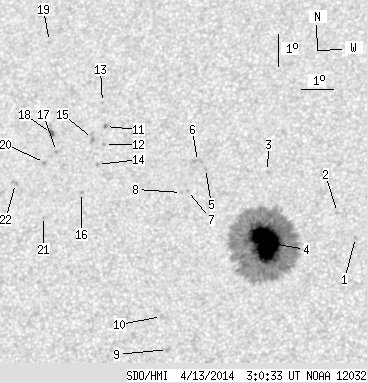

back to the solar disc SDO HMI 2014-04-13 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.36 | 277.71 | -6.21 | 19.83 | 0.3140 | -910.0 | -753.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 12.16 | 277.14 | -6.78 | 20.60 | 0.3297 | 614.0 | 426.3 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 13.49 | 274.92 | -9.00 | 24.83 | 0.3639 | -732.0 | -546.5 | |
| 61.49 | 382.29 | 32.26 | 200.56 | 11.25 | 274.93 | -8.99 | 27.73 | 0.3308 | -1491.3 | -451.1 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 13.63 | 272.97 | -10.96 | 29.20 | 0.3802 | -740.0 | -583.3 | |
| 0.00 | 4.77 | 0.00 | 2.56 | 13.86 | 272.70 | -11.22 | 29.48 | 0.3855 | -221.0 | -532.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 12.94 | 272.43 | -11.49 | 31.33 | 0.3750 | -772.0 | -617.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 12.88 | 272.24 | -11.68 | 31.83 | 0.3757 | -709.0 | -573.3 | |
| 0.00 | 2.30 | 0.00 | 1.20 | 7.97 | 271.99 | -11.93 | 41.00 | 0.3134 | -958.0 | -699.7 | |
| 0.00 | 2.39 | 0.00 | 1.25 | 9.00 | 271.77 | -12.15 | 39.43 | 0.3287 | -691.0 | -562.3 | |
| 0.00 | 1.77 | 0.00 | 0.97 | 15.05 | 269.71 | -14.22 | 33.93 | 0.4267 | 864.0 | 680.5 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 14.47 | 269.71 | -14.21 | 34.71 | 0.4192 | 814.0 | 595.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 15.83 | 269.55 | -14.37 | 33.17 | 0.4381 | 703.0 | 573.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.84 | 269.53 | -14.39 | 35.97 | 0.4127 | 802.0 | 681.9 | |
| 0.00 | 3.89 | 0.00 | 2.13 | 14.68 | 269.31 | -14.61 | 35.17 | 0.4254 | 937.0 | 762.0 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 12.96 | 269.07 | -14.85 | 38.15 | 0.4061 | 891.0 | 642.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 14.29 | 268.18 | -15.74 | 37.75 | 0.4312 | 850.0 | 814.5 | |
| 1.68 | 5.30 | 0.93 | 2.92 | 14.87 | 267.98 | -15.94 | 37.27 | 0.4403 | 904.4 | 647.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 17.87 | 267.66 | -16.26 | 33.86 | 0.4803 | 672.0 | 511.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 13.95 | 267.82 | -16.10 | 38.89 | 0.4306 | 971.0 | 871.8 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 12.23 | 267.90 | -16.02 | 41.45 | 0.4092 | 678.0 | 499.8 | |
| 0.00 | 3.09 | 0.00 | 1.70 | 13.31 | 266.93 | -16.99 | 41.39 | 0.4320 | 831.0 | 603.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
