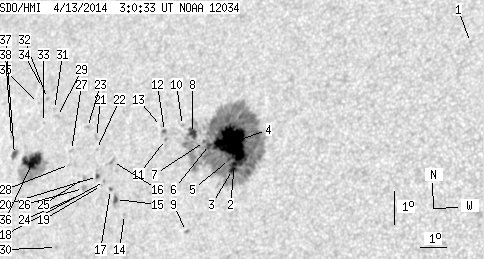

SDO HMI 2014-04-13 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.75 | 509.25 | 66.27 | 332.45 | 4.22 | 244.56 | -39.36 | 76.52 | 0.6517 | -304.9 | -228.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 03:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.72 | 6.83 | 254.71 | -29.21 | 67.02 | 0.5284 | 563.0 | 432.9 | |
| 1.86 | 405.44 | 1.18 | 258.87 | 3.61 | 246.34 | -37.58 | 76.85 | 0.6273 | -980.2 | -393.6 | |
| 3.80 | -2.00 | 2.41 | -2.00 | 3.43 | 246.27 | -37.65 | 77.15 | 0.6277 | -946.9 | 999999 | |
| 62.38 | -2.00 | 39.75 | -2.00 | 4.26 | 246.19 | -37.73 | 75.90 | 0.6315 | -1183.0 | 999999 | |
| 0.27 | -2.00 | 0.17 | -2.00 | 3.74 | 246.14 | -37.78 | 76.72 | 0.6304 | -754.3 | 999999 | |
| 1.33 | -2.00 | 0.85 | -2.00 | 4.25 | 245.35 | -38.58 | 76.25 | 0.6425 | -453.1 | 999999 | |
| 0.62 | -2.00 | 0.40 | -2.00 | 4.35 | 245.15 | -38.77 | 76.16 | 0.6454 | -435.0 | 999999 | |
| 5.57 | -2.00 | 3.63 | -2.00 | 4.63 | 244.66 | -39.26 | 75.94 | 0.6526 | -662.4 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.97 | 1.66 | 244.56 | -39.36 | 80.46 | 0.6451 | -750.0 | -570.4 | |
| 0.00 | 1.41 | 0.00 | 0.93 | 4.90 | 244.25 | -39.67 | 75.69 | 0.6587 | -414.0 | -360.1 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 4.52 | 243.61 | -40.32 | 76.50 | 0.6656 | 737.0 | 621.0 | |
| 0.80 | 1.77 | 0.53 | 1.17 | 4.77 | 243.55 | -40.37 | 76.16 | 0.6671 | -207.2 | -201.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 4.93 | 243.42 | -40.50 | 75.97 | 0.6693 | -177.0 | -196.7 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 2.34 | 242.07 | -41.85 | 80.17 | 0.6788 | 578.0 | 568.0 | |
| 1.77 | 5.12 | 1.20 | 3.47 | 2.82 | 241.69 | -42.23 | 79.58 | 0.6849 | 662.7 | 563.7 | |
| 0.00 | 2.65 | 0.00 | 1.81 | 3.99 | 241.50 | -42.42 | 77.97 | 0.6903 | 582.0 | 604.6 | |
| 0.44 | 1.41 | 0.30 | 0.96 | 3.14 | 241.47 | -42.45 | 79.19 | 0.6884 | 590.6 | 579.2 | |
| 0.00 | 1.15 | 0.00 | 0.79 | 3.40 | 241.21 | -42.71 | 78.90 | 0.6923 | 519.0 | 556.2 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 3.29 | 241.09 | -42.83 | 79.09 | 0.6935 | 565.0 | 530.7 | |
| 0.97 | 3.27 | 0.67 | 2.25 | 3.58 | 240.91 | -43.01 | 78.74 | 0.6965 | 503.9 | 477.8 | |
| 0.00 | 2.03 | 0.00 | 1.41 | 4.77 | 240.79 | -43.13 | 77.10 | 0.7013 | 558.0 | 490.7 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 4.40 | 240.82 | -43.10 | 77.61 | 0.6999 | 592.0 | 498.2 | |
| 0.00 | 1.33 | 0.00 | 0.93 | 5.11 | 240.39 | -43.53 | 76.77 | 0.7071 | 647.0 | 489.5 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 3.15 | 240.52 | -43.40 | 79.46 | 0.7002 | 533.0 | 461.5 | |
| 0.00 | 1.86 | 0.00 | 1.29 | 3.58 | 240.37 | -43.55 | 78.89 | 0.7031 | 529.0 | 486.7 | |
| 0.00 | 2.47 | 0.00 | 1.72 | 3.25 | 240.35 | -43.57 | 79.36 | 0.7025 | 657.0 | 562.2 | |
| 0.00 | 1.68 | 0.00 | 1.18 | 4.45 | 239.77 | -44.15 | 77.88 | 0.7127 | 520.0 | 507.9 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 4.03 | 239.71 | -44.21 | 78.47 | 0.7122 | 505.0 | 489.8 | |
| 0.00 | 2.21 | 0.00 | 1.58 | 5.54 | 239.08 | -44.84 | 76.61 | 0.7238 | 559.0 | 492.4 | |
| 0.00 | 0.80 | 0.00 | 0.56 | 1.54 | 239.28 | -44.64 | 82.04 | 0.7116 | 483.0 | 426.8 | |
| 0.00 | 1.59 | 0.00 | 1.14 | 5.76 | 238.93 | -44.99 | 76.36 | 0.7262 | 639.0 | 524.8 | |
| 0.00 | 1.41 | 0.00 | 1.02 | 6.13 | 238.59 | -45.33 | 75.98 | 0.7311 | 526.0 | 425.6 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 5.40 | 238.49 | -45.43 | 76.99 | 0.7302 | 467.0 | 412.4 | |
| 0.00 | 1.06 | 0.00 | 0.77 | 6.48 | 238.33 | -45.59 | 75.59 | 0.7351 | 423.0 | 416.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | 6.00 | 238.21 | -45.71 | 76.27 | 0.7351 | 580.0 | 520.0 | |
| 18.64 | 54.42 | 13.49 | 39.38 | 4.24 | 238.11 | -45.81 | 78.66 | 0.7316 | 913.6 | 385.5 | |
| 2.30 | 4.42 | 1.69 | 3.25 | 4.51 | 237.30 | -46.62 | 78.52 | 0.7416 | 554.7 | 340.2 | |
| 0.00 | 1.50 | 0.00 | 1.11 | 5.04 | 237.13 | -46.80 | 77.87 | 0.7450 | 524.0 | 409.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
