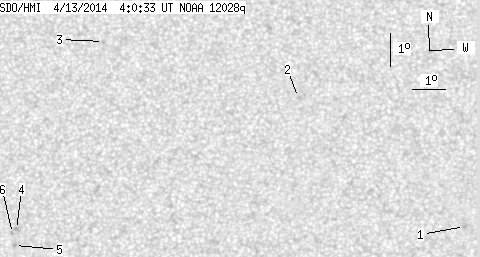

SDO HMI 2014-04-13 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.51 | 0.00 | 3.75 | -8.16 | 280.84 | -2.53 | 150.43 | 0.1100 | -322.3 | -357.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.23 | 291.04 | 7.67 | 245.05 | 0.1459 | 788.0 | 752.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -5.39 | 285.95 | 2.58 | 278.26 | 0.0454 | 893.0 | 683.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -3.70 | 280.07 | -3.30 | 57.96 | 0.0681 | -787.0 | -623.4 | |
| 0.00 | 2.03 | 0.00 | 1.01 | -9.33 | 277.37 | -6.01 | 121.21 | 0.1213 | -950.0 | -813.1 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.81 | 277.30 | -6.08 | 124.22 | 0.1267 | -961.0 | -766.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.45 | 277.24 | -6.13 | 121.54 | 0.1242 | -917.0 | -774.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
