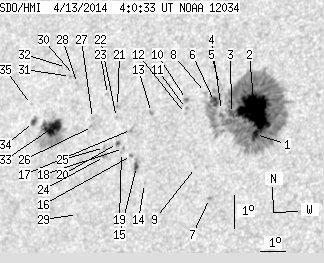

SDO HMI 2014-04-13 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.68 | 520.72 | 72.74 | 337.35 | 4.19 | 244.57 | -38.81 | 76.37 | 0.6445 | -313.3 | -195.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 04:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.48 | 409.82 | 3.45 | 259.55 | 3.49 | 246.33 | -37.04 | 76.84 | 0.6198 | -934.1 | -356.6 | |
| 70.60 | -1.00 | 44.61 | -1.00 | 4.22 | 246.26 | -37.12 | 75.71 | 0.6233 | -1165.2 | 999999 | |
| 4.42 | -1.00 | 2.82 | -1.00 | 4.19 | 245.38 | -37.99 | 76.12 | 0.6346 | -484.0 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.25 | 4.30 | 244.99 | -38.38 | 76.10 | 0.6401 | -425.0 | -324.4 | |
| 0.00 | 1.33 | 0.00 | 0.86 | 5.11 | 244.86 | -38.51 | 74.94 | 0.6446 | 182.0 | 143.3 | |
| 5.21 | -1.00 | 3.37 | -1.00 | 4.60 | 244.70 | -38.67 | 75.77 | 0.6448 | -679.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.08 | 1.65 | 244.63 | -38.74 | 80.29 | 0.6369 | -794.0 | -583.2 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 4.90 | 244.33 | -39.04 | 75.46 | 0.6506 | -468.0 | -345.5 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 2.63 | 244.06 | -39.31 | 78.97 | 0.6471 | -428.0 | -342.4 | |
| 0.35 | 2.21 | 0.23 | 1.45 | 4.73 | 243.60 | -39.77 | 75.99 | 0.6594 | -221.0 | -89.4 | |
| 0.00 | 1.15 | 0.00 | 0.75 | 4.45 | 243.62 | -39.75 | 76.39 | 0.6583 | 847.0 | 688.2 | |
| 0.00 | 0.71 | 0.00 | 0.46 | 4.30 | 243.59 | -39.78 | 76.62 | 0.6582 | 533.0 | 442.9 | |
| 0.00 | 1.86 | 0.00 | 1.24 | 4.43 | 242.23 | -41.14 | 76.93 | 0.6758 | 807.0 | 643.7 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 2.28 | 242.05 | -41.32 | 80.11 | 0.6720 | 737.0 | 669.2 | |
| 2.03 | 6.01 | 1.37 | 4.04 | 2.82 | 241.71 | -41.66 | 79.43 | 0.6777 | 773.3 | 561.0 | |
| 0.00 | 1.33 | 0.00 | 0.89 | 3.17 | 241.49 | -41.88 | 78.99 | 0.6814 | 854.0 | 719.9 | |
| 0.00 | 2.03 | 0.00 | 1.38 | 3.96 | 241.45 | -41.92 | 77.86 | 0.6841 | 785.0 | 725.3 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 3.40 | 241.16 | -42.22 | 78.75 | 0.6862 | 725.0 | 647.6 | |
| 0.00 | 0.80 | 0.00 | 0.54 | 3.29 | 241.08 | -42.29 | 78.94 | 0.6868 | 630.0 | 545.0 | |
| 0.88 | 2.03 | 0.60 | 1.39 | 3.57 | 240.90 | -42.47 | 78.59 | 0.6898 | 693.9 | 613.2 | |
| 0.00 | 1.24 | 0.00 | 0.85 | 4.71 | 240.83 | -42.55 | 77.01 | 0.6939 | 718.0 | 521.0 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 4.37 | 240.81 | -42.56 | 77.49 | 0.6932 | 673.0 | 558.8 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 5.10 | 240.38 | -42.99 | 76.60 | 0.7005 | 641.0 | 545.2 | |
| 0.00 | 2.92 | 0.00 | 2.00 | 3.21 | 240.39 | -42.99 | 79.25 | 0.6952 | 733.0 | 609.8 | |
| 0.00 | 1.59 | 0.00 | 1.09 | 3.49 | 240.37 | -43.00 | 78.87 | 0.6961 | 694.0 | 630.4 | |
| 0.00 | 3.62 | 0.00 | 2.52 | 4.17 | 239.83 | -43.54 | 78.08 | 0.7045 | 640.0 | 528.5 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 4.41 | 239.81 | -43.56 | 77.75 | 0.7054 | 685.0 | 595.6 | |
| 0.00 | 1.59 | 0.00 | 1.13 | 5.53 | 239.09 | -44.28 | 76.44 | 0.7172 | 707.0 | 633.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 1.53 | 239.32 | -44.05 | 81.91 | 0.7043 | 604.0 | 465.7 | |
| 0.00 | 1.68 | 0.00 | 1.19 | 5.79 | 238.94 | -44.44 | 76.15 | 0.7197 | 613.0 | 507.1 | |
| 0.00 | 1.50 | 0.00 | 1.07 | 5.77 | 238.77 | -44.60 | 76.23 | 0.7217 | 645.0 | 569.1 | |
| 0.00 | 0.44 | 0.00 | 0.32 | 6.06 | 238.57 | -44.80 | 75.90 | 0.7248 | 569.0 | 493.0 | |
| 20.59 | 60.79 | 14.75 | 43.59 | 4.26 | 238.13 | -45.24 | 78.47 | 0.7251 | 888.7 | 303.7 | |
| 2.12 | 4.24 | 1.54 | 3.09 | 4.47 | 237.29 | -46.08 | 78.42 | 0.7354 | 575.0 | 468.8 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 5.03 | 237.15 | -46.22 | 77.72 | 0.7384 | 506.0 | 372.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
