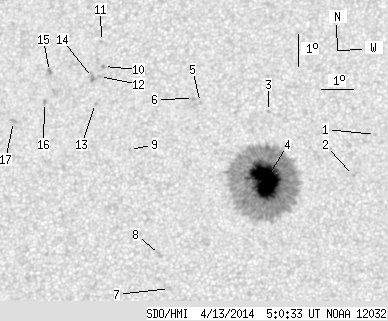

SDO HMI 2014-04-13 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.47 | 426.47 | 31.11 | 223.49 | 11.39 | 274.66 | -8.16 | 25.21 | 0.3270 | -965.4 | -398.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.42 | 12.68 | 278.32 | -4.50 | 13.62 | 0.3268 | -703.0 | -568.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.40 | 277.66 | -5.16 | 16.66 | 0.3089 | -940.0 | -731.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 13.46 | 274.98 | -7.84 | 22.01 | 0.3557 | -746.0 | -582.0 | |
| 59.47 | 399.69 | 31.11 | 209.09 | 11.27 | 274.95 | -7.87 | 24.70 | 0.3229 | -1541.2 | -449.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.78 | 272.84 | -9.99 | 26.82 | 0.3749 | -817.0 | -629.7 | |
| 0.00 | 1.59 | 0.00 | 0.85 | 13.91 | 272.61 | -10.21 | 27.17 | 0.3784 | -832.0 | -698.3 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 7.96 | 272.07 | -10.75 | 38.12 | 0.3007 | -745.0 | -623.4 | |
| 0.00 | 3.09 | 0.00 | 1.62 | 9.02 | 271.73 | -11.09 | 36.87 | 0.3181 | -609.0 | -572.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 12.34 | 270.67 | -12.15 | 33.69 | 0.3724 | 819.0 | 580.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 15.00 | 269.70 | -13.12 | 31.92 | 0.4165 | 952.0 | 730.1 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 15.81 | 269.59 | -13.24 | 31.10 | 0.4283 | 660.0 | 623.4 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 14.69 | 269.59 | -13.23 | 32.55 | 0.4132 | 861.0 | 631.3 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 13.82 | 269.52 | -13.31 | 33.90 | 0.4025 | 789.0 | 696.9 | |
| 0.00 | 3.80 | 0.00 | 2.07 | 14.66 | 269.37 | -13.45 | 33.02 | 0.4148 | 1023.0 | 828.7 | |
| 0.00 | 2.74 | 0.00 | 1.50 | 14.89 | 267.98 | -14.85 | 35.32 | 0.4301 | 916.0 | 761.7 | |
| 0.00 | 1.86 | 0.00 | 1.01 | 13.90 | 267.88 | -14.94 | 36.91 | 0.4185 | 1032.0 | 759.6 | |
| 0.00 | 2.39 | 0.00 | 1.30 | 13.32 | 266.93 | -15.90 | 39.51 | 0.4208 | 807.0 | 720.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
