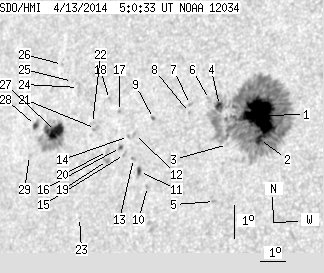

SDO HMI 2014-04-13 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95.71 | 531.37 | 61.80 | 340.90 | 4.16 | 244.80 | -38.03 | 76.11 | 0.6342 | -335.2 | -208.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 05:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.95 | 426.91 | 40.71 | 268.28 | 4.19 | 246.35 | -36.48 | 75.51 | 0.6146 | -1191.3 | -358.1 | |
| 4.42 | -1.00 | 2.76 | -1.00 | 3.46 | 246.35 | -36.48 | 76.67 | 0.6121 | -889.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.90 | 3.38 | 245.14 | -37.69 | 77.25 | 0.6280 | -357.0 | -232.9 | |
| 3.98 | -1.00 | 2.55 | -1.00 | 4.59 | 244.77 | -38.06 | 75.53 | 0.6369 | -730.6 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.18 | 1.68 | 244.70 | -38.13 | 80.06 | 0.6288 | -836.0 | -527.2 | |
| 0.00 | 2.83 | 0.00 | 1.82 | 4.80 | 244.37 | -38.46 | 75.38 | 0.6428 | -426.0 | -387.5 | |
| 0.00 | 1.77 | 0.00 | 1.15 | 4.70 | 243.64 | -39.19 | 75.82 | 0.6518 | -465.0 | -276.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 4.46 | 243.61 | -39.21 | 76.19 | 0.6513 | 703.0 | 627.3 | |
| 0.44 | 1.77 | 0.29 | 1.18 | 4.37 | 242.20 | -40.63 | 76.84 | 0.6690 | 736.8 | 628.8 | |
| 0.00 | 1.68 | 0.00 | 1.11 | 2.31 | 242.06 | -40.76 | 79.91 | 0.6650 | 738.0 | 616.5 | |
| 1.50 | 3.80 | 1.00 | 2.53 | 2.79 | 241.72 | -41.10 | 79.31 | 0.6705 | 721.1 | 561.0 | |
| 0.00 | 2.39 | 0.00 | 1.60 | 3.93 | 241.46 | -41.36 | 77.73 | 0.6770 | 775.0 | 664.8 | |
| 0.00 | 1.41 | 0.00 | 0.95 | 3.20 | 241.46 | -41.36 | 78.79 | 0.6749 | 840.0 | 735.2 | |
| 0.00 | 1.15 | 0.00 | 0.77 | 3.88 | 241.22 | -41.60 | 77.87 | 0.6798 | 726.0 | 639.8 | |
| 0.00 | 2.21 | 0.00 | 1.49 | 3.35 | 241.09 | -41.73 | 78.69 | 0.6800 | 696.0 | 591.6 | |
| 0.71 | 2.12 | 0.48 | 1.43 | 3.57 | 240.92 | -41.91 | 78.42 | 0.6828 | 687.6 | 542.1 | |
| 0.00 | 1.24 | 0.00 | 0.84 | 4.68 | 240.81 | -42.02 | 76.88 | 0.6873 | 694.0 | 581.6 | |
| 0.00 | 1.59 | 0.00 | 1.09 | 5.07 | 240.37 | -42.46 | 76.47 | 0.6939 | 660.0 | 484.7 | |
| 0.00 | 3.27 | 0.00 | 2.23 | 3.21 | 240.41 | -42.42 | 79.09 | 0.6882 | 709.0 | 581.5 | |
| 0.00 | 2.21 | 0.00 | 1.51 | 3.49 | 240.39 | -42.43 | 78.71 | 0.6891 | 613.0 | 549.2 | |
| 0.00 | 2.56 | 0.00 | 1.77 | 4.22 | 239.85 | -42.97 | 77.83 | 0.6977 | 702.0 | 567.8 | |
| 0.00 | 1.77 | 0.00 | 1.22 | 4.39 | 239.72 | -43.11 | 77.65 | 0.6998 | 578.0 | 443.6 | |
| 0.00 | 0.62 | 0.00 | 0.43 | 1.56 | 239.31 | -43.51 | 81.75 | 0.6977 | 588.0 | 514.7 | |
| 0.00 | 4.86 | 0.00 | 3.41 | 5.53 | 239.04 | -43.78 | 76.28 | 0.7113 | 810.0 | 587.3 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 5.74 | 238.77 | -44.06 | 76.09 | 0.7151 | 705.0 | 632.3 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 6.29 | 238.29 | -44.54 | 75.51 | 0.7224 | 521.0 | 426.5 | |
| 17.59 | 53.20 | 12.48 | 37.80 | 4.25 | 238.17 | -44.65 | 78.31 | 0.7180 | 922.3 | 336.3 | |
| 2.12 | 4.68 | 1.53 | 3.38 | 4.50 | 237.30 | -45.53 | 78.23 | 0.7290 | 601.8 | 419.2 | |
| 0.00 | 1.24 | 0.00 | 0.89 | 3.60 | 237.10 | -45.72 | 79.50 | 0.7290 | 297.0 | 230.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
