SDO HMI 2014-04-13 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.05 | 0.00 | 5.97 | -15.76 | 303.12 | 20.84 | 241.22 | 0.3904 | 19.2 | 5.9 | |
|
previous
or next observation for the same group /

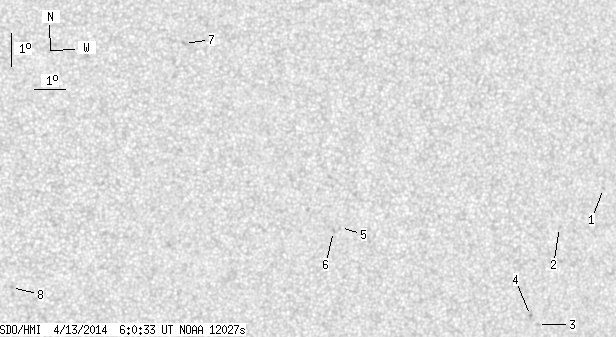

back to the solar disc SDO HMI 2014-04-13 06:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.55 | -14.57 | 310.38 | 28.10 | 250.15 | 0.4867 | 697.0 | 556.0 | |
| 0.00 | 1.50 | 0.00 | 0.84 | -15.82 | 309.01 | 26.73 | 246.86 | 0.4726 | 784.0 | 558.6 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -18.82 | 308.70 | 26.42 | 240.75 | 0.4847 | 469.0 | 420.5 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -18.55 | 308.40 | 26.13 | 241.03 | 0.4792 | 956.0 | 812.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -16.09 | 301.59 | 19.31 | 239.82 | 0.3692 | -513.0 | -480.8 | |
| 0.00 | 1.68 | 0.00 | 0.89 | -16.22 | 301.37 | 19.09 | 239.25 | 0.3671 | -681.0 | -543.4 | |
| 0.00 | 2.39 | 0.00 | 1.22 | -10.65 | 296.17 | 13.90 | 249.52 | 0.2531 | -837.0 | -688.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -18.17 | 291.06 | 8.79 | 213.89 | 0.2614 | -721.0 | -488.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
