SDO HMI 2014-04-13 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.60 | 0.00 | 4.17 | -16.17 | 304.45 | 22.72 | 241.19 | 0.4180 | 236.8 | 151.5 | |
|
previous
or next observation for the same group /

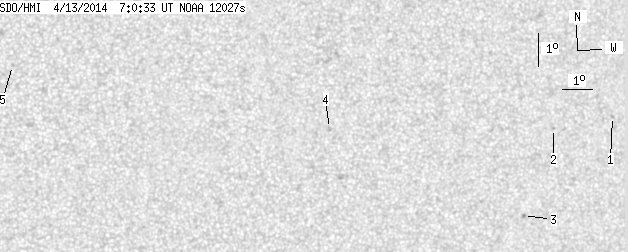

back to the solar disc SDO HMI 2014-04-13 07:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.86 | -15.39 | 311.05 | 29.32 | 249.15 | 0.5073 | 771.0 | 576.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -15.85 | 309.03 | 27.30 | 247.14 | 0.4807 | 847.0 | 649.6 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -18.55 | 308.39 | 26.66 | 241.43 | 0.4863 | 893.0 | 786.1 | |
| 0.00 | 2.21 | 0.00 | 1.18 | -16.13 | 301.41 | 19.68 | 240.13 | 0.3747 | -673.0 | -554.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -14.45 | 291.07 | 9.34 | 225.87 | 0.2201 | -654.0 | -479.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
