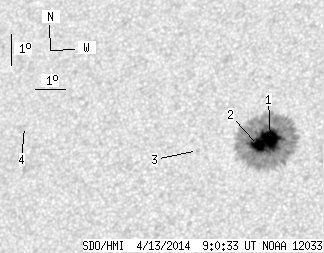

SDO HMI 2014-04-13 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.42 | 262.20 | 23.09 | 142.78 | 12.05 | 263.64 | -16.99 | 43.48 | 0.4170 | -1318.8 | -399.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.22 | 259.90 | 14.81 | 141.49 | 12.11 | 263.82 | -16.82 | 43.09 | 0.4158 | -1461.7 | -401.7 | |
| 15.20 | -1.00 | 8.28 | -1.00 | 11.93 | 263.45 | -17.19 | 44.02 | 0.4179 | -1359.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 11.84 | 261.48 | -19.16 | 47.27 | 0.4390 | -871.0 | -590.9 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 12.83 | 255.64 | -25.00 | 53.09 | 0.5173 | 688.0 | 604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
