SDO HMI 2014-04-13 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.48 | 375.27 | 72.08 | 360.16 | -17.15 | 221.51 | -59.12 | 106.59 | 0.8548 | 122.3 | 72.5 | |
|
previous
or next observation for the same group /

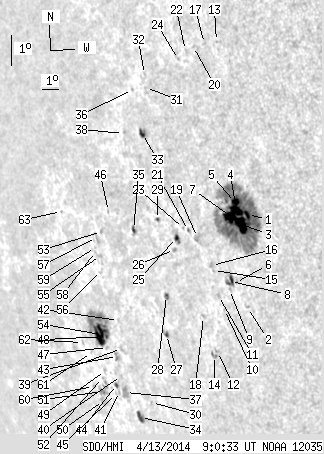

back to the solar disc SDO HMI 2014-04-13 09:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 207.76 | 2.78 | 178.79 | -15.94 | 226.16 | -54.48 | 105.52 | 0.8144 | 1130.1 | 280.1 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -18.73 | 224.89 | -55.74 | 108.78 | 0.8289 | -587.0 | -484.2 | |
| 12.90 | -1.00 | 11.08 | -1.00 | -16.21 | 225.72 | -54.92 | 105.82 | 0.8189 | 939.3 | 999999 | |
| 8.57 | -1.00 | 7.37 | -1.00 | -15.77 | 225.63 | -55.01 | 105.27 | 0.8194 | 844.0 | 999999 | |
| 4.86 | -1.00 | 4.17 | -1.00 | -15.53 | 225.67 | -54.96 | 104.97 | 0.8188 | 787.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.17 | -17.93 | 224.61 | -56.03 | 107.78 | 0.8308 | -639.0 | -523.6 | |
| 10.16 | -1.00 | 8.83 | -1.00 | -15.92 | 225.23 | -55.40 | 105.42 | 0.8233 | 534.9 | 999999 | |
| 3.53 | 6.10 | 3.15 | 5.43 | -17.87 | 224.35 | -56.29 | 107.69 | 0.8331 | -458.5 | -354.4 | |
| 0.00 | 1.33 | 0.00 | 1.19 | -18.11 | 224.17 | -56.46 | 107.96 | 0.8349 | -383.0 | -333.2 | |
| 0.00 | 0.80 | 0.00 | 0.72 | -18.69 | 223.59 | -57.05 | 108.58 | 0.8407 | 342.0 | 318.1 | |
| 0.00 | 1.94 | 0.00 | 1.77 | -18.24 | 223.47 | -57.17 | 108.04 | 0.8414 | -105.0 | -63.2 | |
| 0.00 | 1.41 | 0.00 | 1.33 | -19.92 | 222.48 | -58.15 | 109.92 | 0.8515 | 652.0 | 615.5 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -10.64 | 226.27 | -54.36 | 98.99 | 0.8109 | 583.0 | 533.4 | |
| 0.00 | 3.09 | 0.00 | 2.93 | -20.03 | 222.23 | -58.40 | 110.01 | 0.8537 | 607.0 | 512.2 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -17.47 | 223.56 | -57.07 | 107.13 | 0.8399 | 298.0 | 308.2 | |
| 0.00 | 2.47 | 0.00 | 2.25 | -17.31 | 223.53 | -57.11 | 106.94 | 0.8402 | -370.0 | -260.7 | |
| 0.00 | 1.41 | 0.00 | 1.21 | -10.65 | 225.63 | -55.00 | 98.99 | 0.8173 | 532.0 | 427.7 | |
| 0.00 | 1.86 | 0.00 | 1.75 | -18.80 | 222.27 | -58.37 | 108.58 | 0.8524 | 349.0 | 309.0 | |
| 0.00 | 4.86 | 0.00 | 4.45 | -16.40 | 223.14 | -57.50 | 105.83 | 0.8431 | 546.0 | 342.6 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -10.69 | 225.02 | -55.61 | 99.04 | 0.8233 | 497.0 | 455.4 | |
| 0.00 | 1.15 | 0.00 | 1.06 | -16.15 | 222.72 | -57.91 | 105.50 | 0.8466 | 553.0 | 497.5 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -10.77 | 224.56 | -56.07 | 99.14 | 0.8278 | 586.0 | 504.4 | |
| 0.00 | 0.80 | 0.00 | 0.74 | -16.07 | 222.46 | -58.17 | 105.39 | 0.8489 | 438.0 | 382.8 | |
| 0.00 | 0.97 | 0.00 | 0.86 | -11.01 | 224.10 | -56.53 | 99.42 | 0.8322 | 340.0 | 291.5 | |
| 1.94 | 5.04 | 1.84 | 4.76 | -16.30 | 221.93 | -58.70 | 105.63 | 0.8537 | 528.7 | 440.3 | |
| 0.00 | 1.77 | 0.00 | 1.68 | -16.65 | 221.64 | -59.00 | 106.02 | 0.8564 | 396.0 | 324.9 | |
| 1.06 | 2.47 | 1.07 | 2.50 | -19.15 | 219.71 | -60.92 | 108.76 | 0.8739 | 393.7 | 291.1 | |
| 0.80 | 3.09 | 0.79 | 3.06 | -17.98 | 220.42 | -60.22 | 107.48 | 0.8675 | 565.1 | 397.8 | |
| 0.71 | 1.68 | 0.68 | 1.62 | -15.67 | 221.07 | -59.57 | 104.84 | 0.8609 | 235.1 | 152.6 | |
| 0.00 | 0.88 | 0.00 | 0.97 | -21.10 | 217.31 | -63.32 | 110.77 | 0.8935 | -509.0 | -436.9 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.69 | 221.98 | -58.65 | 100.21 | 0.8519 | 331.0 | 365.0 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.29 | 222.05 | -58.58 | 99.75 | 0.8512 | 500.0 | 427.7 | |
| 2.47 | 5.13 | 2.37 | 4.91 | -13.04 | 221.30 | -59.33 | 101.78 | 0.8581 | 495.5 | 407.8 | |
| 3.71 | 5.39 | 4.22 | 6.12 | -21.48 | 216.19 | -64.45 | 111.11 | 0.9017 | -546.2 | -424.8 | |
| 1.50 | 3.27 | 1.52 | 3.31 | -15.84 | 219.45 | -61.18 | 104.96 | 0.8744 | -421.2 | -420.9 | |
| 0.00 | 0.88 | 0.00 | 0.85 | -11.68 | 221.20 | -59.43 | 100.19 | 0.8588 | 255.0 | 235.8 | |
| 0.00 | 7.33 | 0.00 | 8.44 | -20.64 | 215.74 | -64.90 | 110.15 | 0.9045 | -552.0 | -532.7 | |
| 0.00 | 0.80 | 0.00 | 0.79 | -12.94 | 220.16 | -60.47 | 101.64 | 0.8679 | 448.0 | 366.1 | |
| 0.00 | 1.86 | 0.00 | 2.08 | -19.31 | 216.47 | -64.17 | 108.72 | 0.8987 | -409.0 | -420.0 | |
| 0.00 | 1.06 | 0.00 | 1.22 | -20.11 | 215.86 | -64.78 | 109.57 | 0.9034 | -477.0 | -471.3 | |
| 0.00 | 1.68 | 0.00 | 1.96 | -20.57 | 215.33 | -65.30 | 110.05 | 0.9073 | -514.0 | -529.2 | |
| 0.00 | 1.15 | 0.00 | 1.27 | -18.46 | 216.85 | -63.78 | 107.79 | 0.8956 | -281.0 | -225.4 | |
| 0.00 | 4.24 | 0.00 | 4.83 | -19.52 | 216.01 | -64.62 | 108.93 | 0.9021 | -692.0 | -615.9 | |
| 0.88 | 2.39 | 1.03 | 2.79 | -20.34 | 215.28 | -65.35 | 109.80 | 0.9075 | -626.0 | -595.4 | |
| 0.00 | 0.27 | 0.00 | 0.31 | -20.61 | 215.06 | -65.57 | 110.08 | 0.9091 | -396.0 | -408.0 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -15.17 | 218.14 | -62.50 | 104.15 | 0.8848 | -288.0 | -349.4 | |
| 0.00 | 1.33 | 0.00 | 1.54 | -19.19 | 215.50 | -65.13 | 108.54 | 0.9055 | -522.0 | -457.5 | |
| 0.88 | 54.17 | 1.02 | 63.05 | -18.86 | 215.68 | -64.96 | 108.18 | 0.9042 | -771.2 | -149.6 | |
| 0.00 | 1.50 | 0.00 | 1.78 | -19.86 | 214.82 | -65.81 | 109.24 | 0.9105 | -549.0 | -424.4 | |
| 0.00 | 3.45 | 0.00 | 4.24 | -20.73 | 213.92 | -66.72 | 110.15 | 0.9168 | 75.0 | 106.5 | |
| 1.24 | 9.19 | 1.51 | 11.14 | -20.46 | 214.07 | -66.56 | 109.86 | 0.9157 | -279.2 | -299.9 | |
| 0.00 | 0.71 | 0.00 | 0.85 | -20.04 | 214.43 | -66.21 | 109.42 | 0.9132 | -343.0 | -295.5 | |
| 0.00 | 1.77 | 0.00 | 1.91 | -15.72 | 217.35 | -63.28 | 104.74 | 0.8910 | -543.0 | -483.8 | |
| 16.00 | -48.00 | 18.65 | -48.00 | -18.76 | 215.29 | -65.35 | 108.05 | 0.9069 | -395.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.95 | -16.42 | 216.87 | -63.77 | 105.52 | 0.8948 | -540.0 | -491.8 | |
| 0.00 | 0.35 | 0.00 | 0.39 | -16.87 | 216.59 | -64.04 | 106.01 | 0.8970 | -407.0 | -362.8 | |
| 0.00 | 3.98 | 0.00 | 4.37 | -15.87 | 216.91 | -63.72 | 104.90 | 0.8944 | -502.0 | -386.9 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -16.28 | 216.60 | -64.04 | 105.34 | 0.8968 | -319.0 | -333.7 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -16.16 | 216.67 | -63.97 | 105.21 | 0.8962 | -465.0 | -476.3 | |
| 0.00 | 0.97 | 0.00 | 1.21 | -20.25 | 213.52 | -67.12 | 109.60 | 0.9193 | -112.0 | -53.5 | |
| 0.00 | 1.15 | 0.00 | 1.39 | -19.23 | 214.21 | -66.42 | 108.53 | 0.9144 | -340.0 | -287.5 | |
| 0.00 | 1.06 | 0.00 | 1.30 | -18.88 | 213.77 | -66.86 | 108.12 | 0.9172 | -70.0 | -84.8 | |
| 0.00 | 0.62 | 0.00 | 0.73 | -14.88 | 214.91 | -65.72 | 103.76 | 0.9088 | -300.0 | -294.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
