SDO HMI 2014-04-13 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.87 | 0.00 | 7.06 | -22.47 | 317.39 | 37.30 | 240.31 | 0.6435 | -410.1 | -368.5 | |
|
previous
or next observation for the same group /

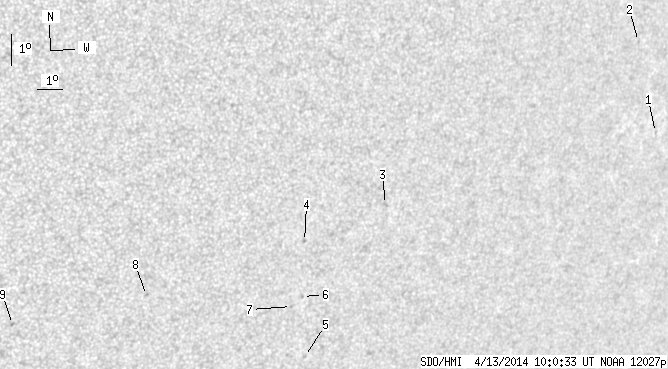

back to the solar disc SDO HMI 2014-04-13 10:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.69 | -18.08 | 330.31 | 50.22 | 251.25 | 0.7738 | 438.0 | 406.0 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.39 | 328.54 | 48.46 | 254.49 | 0.7512 | 459.0 | 365.2 | |
| 0.00 | 1.77 | 0.00 | 1.16 | -21.08 | 319.18 | 39.09 | 244.11 | 0.6563 | -755.0 | -617.0 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -22.42 | 316.27 | 36.18 | 240.81 | 0.6274 | -720.0 | -573.1 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -26.03 | 317.48 | 37.40 | 236.20 | 0.6590 | -485.0 | -430.2 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -24.14 | 316.73 | 36.65 | 238.50 | 0.6411 | -609.0 | -572.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -24.48 | 316.39 | 36.31 | 237.83 | 0.6389 | -602.0 | -519.2 | |
| 0.00 | 1.59 | 0.00 | 0.96 | -24.43 | 310.63 | 30.54 | 234.25 | 0.5723 | -712.0 | -533.4 | |
| 0.00 | 1.50 | 0.00 | 0.87 | -25.56 | 305.86 | 25.77 | 228.41 | 0.5265 | -705.0 | -545.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
