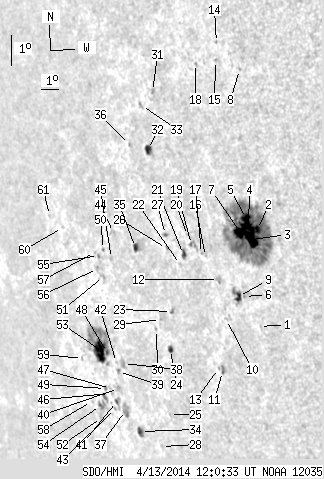

SDO HMI 2014-04-13 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.25 | 408.29 | 73.48 | 375.00 | -17.05 | 221.52 | -57.47 | 106.60 | 0.8403 | 125.2 | 63.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 12:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.60 | -18.84 | 225.04 | -53.95 | 109.15 | 0.8122 | -489.0 | -492.0 | |
| 3.71 | 220.87 | 3.04 | 182.79 | -15.91 | 226.18 | -52.81 | 105.65 | 0.7979 | 1079.3 | 264.0 | |
| 12.99 | -2.00 | 10.72 | -2.00 | -16.18 | 225.76 | -53.23 | 105.95 | 0.8023 | 884.3 | 999999 | |
| 8.83 | -2.00 | 7.29 | -2.00 | -15.78 | 225.76 | -53.23 | 105.45 | 0.8020 | 904.2 | 999999 | |
| 5.21 | -2.00 | 4.30 | -2.00 | -15.53 | 225.75 | -53.24 | 105.14 | 0.8019 | 817.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -17.87 | 224.68 | -54.32 | 107.91 | 0.8146 | -594.0 | -547.7 | |
| 9.72 | -2.00 | 8.11 | -2.00 | -15.93 | 225.28 | -53.71 | 105.59 | 0.8069 | 567.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -11.05 | 226.80 | -52.19 | 99.56 | 0.7886 | 696.0 | 587.4 | |
| 3.36 | 9.54 | 2.87 | 8.18 | -17.84 | 224.36 | -54.63 | 107.84 | 0.8177 | -565.8 | -218.9 | |
| 0.00 | 1.15 | 0.00 | 1.01 | -18.49 | 223.39 | -55.61 | 108.51 | 0.8275 | 328.0 | 289.1 | |
| 0.35 | 3.00 | 0.32 | 2.71 | -20.04 | 222.34 | -56.65 | 110.24 | 0.8386 | 623.2 | 551.0 | |
| 0.00 | 3.45 | 0.00 | 3.00 | -17.25 | 223.52 | -55.47 | 107.03 | 0.8250 | -279.0 | -111.1 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -19.93 | 222.16 | -56.83 | 110.09 | 0.8400 | 419.0 | 455.0 | |
| 0.00 | 1.24 | 0.00 | 1.01 | -10.15 | 225.86 | -53.14 | 98.41 | 0.7983 | 455.0 | 394.9 | |
| 0.00 | 1.33 | 0.00 | 1.09 | -10.68 | 225.67 | -53.32 | 99.07 | 0.8003 | 547.0 | 435.9 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -16.50 | 223.13 | -55.86 | 106.09 | 0.8281 | 621.0 | 487.3 | |
| 0.00 | 0.88 | 0.00 | 0.78 | -16.39 | 222.95 | -56.04 | 105.94 | 0.8297 | 492.0 | 422.6 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -10.69 | 224.63 | -54.37 | 99.07 | 0.8109 | 590.0 | 493.4 | |
| 0.35 | 5.21 | 0.32 | 4.63 | -16.08 | 222.52 | -56.47 | 105.53 | 0.8335 | 487.5 | 523.5 | |
| 0.00 | 1.33 | 0.00 | 1.18 | -15.79 | 222.42 | -56.57 | 105.18 | 0.8342 | 412.0 | 437.5 | |
| 2.03 | 3.89 | 1.84 | 3.52 | -16.34 | 221.94 | -57.05 | 105.80 | 0.8390 | 538.8 | 421.5 | |
| 0.00 | 2.21 | 0.00 | 2.02 | -16.63 | 221.64 | -57.35 | 106.11 | 0.8419 | 408.0 | 299.4 | |
| 0.00 | 2.12 | 0.00 | 2.00 | -17.99 | 220.41 | -58.58 | 107.62 | 0.8537 | 562.0 | 418.2 | |
| 2.03 | 3.71 | 1.96 | 3.58 | -19.12 | 219.71 | -59.28 | 108.88 | 0.8605 | 398.8 | 242.9 | |
| 0.00 | 0.71 | 0.00 | 0.71 | -21.07 | 218.40 | -60.59 | 111.00 | 0.8727 | 391.0 | 273.0 | |
| 0.00 | 1.41 | 0.00 | 1.31 | -16.08 | 221.07 | -57.92 | 105.43 | 0.8467 | 245.0 | 215.3 | |
| 0.00 | 2.03 | 0.00 | 1.87 | -15.66 | 221.20 | -57.79 | 104.94 | 0.8453 | 481.0 | 309.2 | |
| 0.00 | 0.62 | 0.00 | 0.65 | -21.99 | 217.19 | -61.80 | 111.92 | 0.8828 | -370.0 | -389.0 | |
| 0.00 | 1.15 | 0.00 | 1.11 | -18.17 | 219.63 | -59.36 | 107.77 | 0.8605 | 461.0 | 382.6 | |
| 0.00 | 1.15 | 0.00 | 1.12 | -18.45 | 219.22 | -59.77 | 108.06 | 0.8641 | 219.0 | 168.9 | |
| 0.00 | 2.30 | 0.00 | 2.06 | -11.34 | 222.09 | -56.90 | 99.82 | 0.8357 | 583.0 | 399.0 | |
| 3.89 | 7.33 | 3.56 | 6.72 | -13.04 | 221.28 | -57.71 | 101.84 | 0.8436 | 497.5 | 280.4 | |
| 0.00 | 2.92 | 0.00 | 2.67 | -11.70 | 221.34 | -57.65 | 100.24 | 0.8427 | 367.0 | 301.2 | |
| 3.36 | 5.57 | 3.62 | 6.00 | -21.42 | 216.15 | -62.84 | 111.18 | 0.8902 | -562.7 | -468.0 | |
| 2.74 | 5.48 | 2.66 | 5.31 | -15.90 | 219.27 | -59.73 | 105.10 | 0.8623 | -565.1 | -430.4 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -12.80 | 220.25 | -58.75 | 101.53 | 0.8528 | 468.0 | 422.7 | |
| 0.00 | 8.39 | 0.00 | 9.18 | -20.70 | 215.62 | -63.37 | 110.34 | 0.8936 | -644.0 | -550.7 | |
| 0.00 | 4.68 | 0.00 | 4.97 | -19.29 | 216.50 | -62.49 | 108.81 | 0.8863 | -352.0 | -376.2 | |
| 0.00 | 2.12 | 0.00 | 2.29 | -19.50 | 216.01 | -62.99 | 109.01 | 0.8901 | -654.0 | -605.3 | |
| 0.00 | 2.92 | 0.00 | 3.19 | -20.01 | 215.64 | -63.35 | 109.56 | 0.8931 | -486.0 | -529.4 | |
| 0.97 | 4.59 | 1.08 | 5.08 | -20.38 | 215.22 | -63.78 | 109.95 | 0.8964 | -641.6 | -603.6 | |
| 0.00 | 0.71 | 0.00 | 0.76 | -19.22 | 216.06 | -62.93 | 108.70 | 0.8896 | -612.0 | -560.9 | |
| 0.00 | 1.33 | 0.00 | 1.48 | -20.58 | 214.99 | -64.01 | 110.16 | 0.8982 | -439.0 | -413.6 | |
| 0.00 | 3.45 | 0.00 | 3.46 | -15.34 | 218.15 | -60.84 | 104.40 | 0.8715 | -429.0 | -303.4 | |
| 0.00 | 1.50 | 0.00 | 1.53 | -16.10 | 217.62 | -61.37 | 105.25 | 0.8761 | -99.0 | -122.5 | |
| 0.00 | 0.53 | 0.00 | 0.59 | -20.11 | 214.98 | -64.01 | 109.62 | 0.8980 | -466.0 | -501.7 | |
| 0.00 | 0.71 | 0.00 | 0.79 | -19.96 | 215.10 | -63.90 | 109.47 | 0.8971 | -573.0 | -513.8 | |
| 1.33 | 57.07 | 1.44 | 62.98 | -18.87 | 215.66 | -63.33 | 108.28 | 0.8924 | -755.3 | -153.8 | |
| 0.00 | 1.50 | 0.00 | 1.69 | -19.93 | 214.75 | -64.24 | 109.41 | 0.8996 | -515.0 | -462.2 | |
| 0.00 | 1.06 | 0.00 | 1.09 | -15.79 | 217.26 | -61.73 | 104.88 | 0.8789 | -468.0 | -450.9 | |
| 0.00 | 2.56 | 0.00 | 2.68 | -16.59 | 216.82 | -62.17 | 105.77 | 0.8827 | -602.0 | -557.6 | |
| 0.00 | 3.09 | 0.00 | 3.60 | -20.76 | 213.78 | -65.21 | 110.28 | 0.9068 | 204.0 | 172.7 | |
| 17.76 | -48.00 | 19.64 | -48.00 | -18.77 | 215.23 | -63.76 | 108.15 | 0.8956 | -462.4 | 999999 | |
| 0.62 | 9.98 | 0.71 | 11.40 | -20.40 | 214.00 | -64.99 | 109.89 | 0.9051 | -246.4 | -345.3 | |
| 0.00 | 1.33 | 0.00 | 1.38 | -15.94 | 216.84 | -62.15 | 105.04 | 0.8822 | -474.0 | -446.8 | |
| 0.00 | 1.86 | 0.00 | 1.96 | -16.32 | 216.56 | -62.43 | 105.45 | 0.8846 | -518.0 | -378.7 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -15.83 | 216.63 | -62.36 | 104.90 | 0.8839 | -273.0 | -291.1 | |
| 0.00 | 0.53 | 0.00 | 0.62 | -20.22 | 213.45 | -65.55 | 109.66 | 0.9088 | -109.0 | -102.0 | |
| 0.00 | 0.88 | 0.00 | 1.02 | -18.89 | 213.80 | -65.20 | 108.21 | 0.9059 | -176.0 | -151.8 | |
| 0.00 | 0.27 | 0.00 | 0.29 | -14.90 | 214.91 | -64.08 | 103.81 | 0.8969 | -382.0 | -288.3 | |
| 0.00 | 0.27 | 0.00 | 0.30 | -14.46 | 214.20 | -64.79 | 103.32 | 0.9021 | -260.0 | -257.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
