SDO HMI 2014-04-13 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.67 | 271.90 | 22.97 | 146.54 | 12.06 | 263.57 | -14.88 | 39.63 | 0.3948 | -1209.7 | -387.2 | |
|
previous
or next observation for the same group /

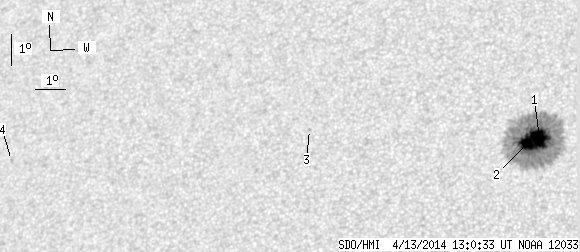

back to the solar disc SDO HMI 2014-04-13 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.56 | 269.69 | 14.83 | 145.22 | 12.11 | 263.84 | -14.61 | 39.12 | 0.3925 | -1409.4 | -397.3 | |
| 15.11 | -1.00 | 8.14 | -1.00 | 11.97 | 263.43 | -15.01 | 40.13 | 0.3949 | -1306.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 12.65 | 256.33 | -22.11 | 50.00 | 0.4814 | 653.0 | 534.9 | |
| 0.00 | 1.33 | 0.00 | 0.82 | 12.17 | 246.04 | -32.41 | 60.85 | 0.6021 | 674.0 | 564.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
