SDO HMI 2014-04-13 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.62 | 0.00 | 12.05 | -9.91 | 242.13 | -36.32 | 98.96 | 0.5928 | 592.0 | 533.8 | |
|
previous
or next observation for the same group /

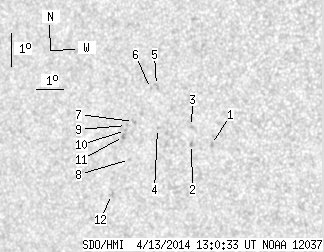

back to the solar disc SDO HMI 2014-04-13 13:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 1.05 | -10.31 | 244.49 | -33.95 | 99.98 | 0.5600 | 793.0 | 670.2 | |
| 0.00 | 1.77 | 0.00 | 1.06 | -10.27 | 243.76 | -34.69 | 99.79 | 0.5704 | 630.0 | 504.6 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -9.73 | 243.82 | -34.62 | 98.85 | 0.5689 | 656.0 | 538.7 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -9.72 | 242.55 | -35.89 | 98.68 | 0.5867 | -609.0 | -408.0 | |
| 0.00 | 2.21 | 0.00 | 1.35 | -8.42 | 242.67 | -35.78 | 96.48 | 0.5842 | 581.0 | 497.7 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -8.50 | 242.43 | -36.01 | 96.60 | 0.5876 | 738.0 | 552.8 | |
| 0.00 | 2.39 | 0.00 | 1.47 | -9.45 | 241.68 | -36.77 | 98.15 | 0.5987 | 753.0 | 623.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.59 | 241.37 | -37.07 | 100.00 | 0.6039 | 673.0 | 580.3 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -9.56 | 241.39 | -37.05 | 98.30 | 0.6026 | 704.0 | 619.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -9.71 | 241.34 | -37.11 | 98.54 | 0.6035 | 803.0 | 672.5 | |
| 0.00 | 2.56 | 0.00 | 1.59 | -9.88 | 241.24 | -37.21 | 98.82 | 0.6051 | 690.0 | 659.3 | |
| 0.00 | 3.00 | 0.00 | 1.89 | -11.59 | 240.52 | -37.92 | 101.53 | 0.6167 | 692.0 | 474.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
