SDO HMI 2014-04-13 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.15 | 0.00 | 6.77 | -22.12 | 315.89 | 37.99 | 239.54 | 0.6518 | -202.1 | -160.7 | |
|
previous
or next observation for the same group /

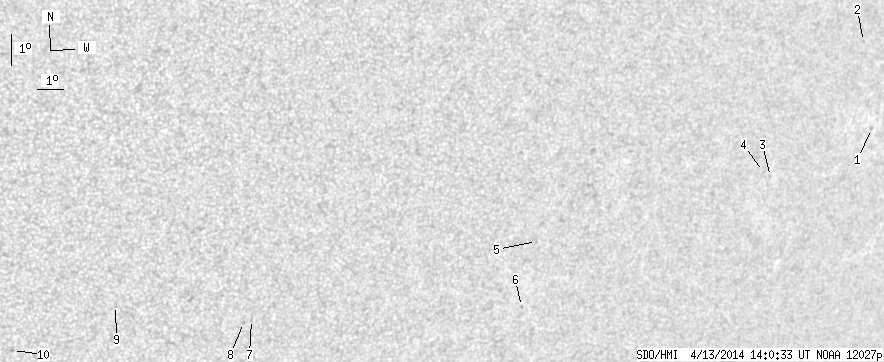

back to the solar disc SDO HMI 2014-04-13 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.08 | -17.95 | 330.13 | 52.23 | 251.71 | 0.7943 | 577.0 | 423.5 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -15.36 | 328.75 | 50.85 | 254.83 | 0.7771 | 493.0 | 440.4 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -19.77 | 325.84 | 47.95 | 248.62 | 0.7528 | 555.0 | 483.5 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -19.64 | 325.46 | 47.56 | 248.70 | 0.7484 | 216.0 | 287.0 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -22.43 | 316.41 | 38.51 | 241.89 | 0.6549 | -446.0 | -436.1 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -24.50 | 316.49 | 38.60 | 238.96 | 0.6649 | -591.0 | -537.8 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -25.45 | 306.03 | 28.13 | 230.73 | 0.5521 | -734.0 | -624.4 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -25.56 | 305.75 | 27.86 | 230.33 | 0.5499 | -681.0 | -551.2 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -25.20 | 300.95 | 23.06 | 226.13 | 0.4935 | -583.0 | -487.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -26.76 | 297.55 | 19.65 | 219.51 | 0.4739 | -827.0 | -734.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
