SDO HMI 2014-04-13 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.95 | 434.17 | 79.95 | 389.05 | -17.10 | 221.41 | -56.48 | 106.75 | 0.8313 | 114.6 | 71.4 | |
|
previous
or next observation for the same group /

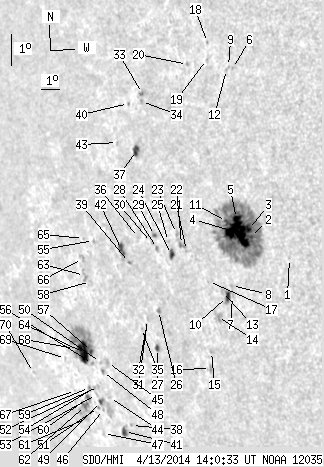

back to the solar disc SDO HMI 2014-04-13 14:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.20 | -16.93 | 227.90 | -50.00 | 107.30 | 0.7698 | -232.0 | -283.3 | |
| 1.32 | 228.86 | 1.06 | 184.74 | -16.12 | 226.25 | -51.65 | 106.05 | 0.7862 | 1011.9 | 263.3 | |
| 3.27 | -2.00 | 2.61 | -2.00 | -15.90 | 226.23 | -51.67 | 105.77 | 0.7862 | 1092.7 | 999999 | |
| 32.50 | -2.00 | 26.26 | -2.00 | -15.95 | 225.65 | -52.25 | 105.77 | 0.7922 | 836.9 | 999999 | |
| 4.33 | -2.00 | 3.48 | -2.00 | -15.52 | 225.75 | -52.14 | 105.24 | 0.7907 | 843.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -11.02 | 226.91 | -50.98 | 99.56 | 0.7757 | 703.0 | 633.9 | |
| 0.00 | 1.41 | 0.00 | 1.17 | -17.86 | 224.62 | -53.28 | 108.03 | 0.8045 | -703.0 | -495.4 | |
| 0.00 | 1.41 | 0.00 | 1.17 | -17.52 | 224.71 | -53.19 | 107.62 | 0.8033 | -369.0 | -293.1 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -10.94 | 226.73 | -51.16 | 99.46 | 0.7776 | 638.0 | 563.7 | |
| 3.00 | 7.15 | 2.51 | 5.97 | -17.83 | 224.36 | -53.53 | 107.97 | 0.8070 | -565.5 | -385.4 | |
| 1.24 | -2.00 | 1.01 | -2.00 | -15.58 | 225.22 | -52.67 | 105.25 | 0.7962 | 316.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -11.03 | 226.61 | -51.28 | 99.56 | 0.7789 | 570.0 | 487.8 | |
| 0.00 | 1.41 | 0.00 | 1.18 | -17.66 | 224.17 | -53.73 | 107.73 | 0.8087 | 147.0 | 46.6 | |
| 0.00 | 7.33 | 0.00 | 6.24 | -18.40 | 223.56 | -54.33 | 108.56 | 0.8154 | 234.0 | 112.3 | |
| 0.00 | 1.68 | 0.00 | 1.46 | -19.43 | 222.72 | -55.17 | 109.70 | 0.8244 | 397.0 | 394.5 | |
| 0.00 | 2.38 | 0.00 | 2.09 | -19.94 | 222.40 | -55.49 | 110.27 | 0.8280 | 732.0 | 583.3 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -17.30 | 223.57 | -54.33 | 107.22 | 0.8142 | 296.0 | 366.3 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -10.15 | 225.88 | -52.01 | 98.42 | 0.7865 | 472.0 | 466.3 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -10.65 | 225.71 | -52.18 | 99.06 | 0.7884 | 634.0 | 558.4 | |
| 0.00 | 1.32 | 0.00 | 1.09 | -10.72 | 224.73 | -53.17 | 99.13 | 0.7987 | 628.0 | 562.9 | |
| 0.00 | 1.68 | 0.00 | 1.45 | -16.28 | 222.81 | -55.09 | 105.89 | 0.8206 | 537.0 | 526.0 | |
| 0.00 | 4.24 | 0.00 | 3.67 | -16.08 | 222.61 | -55.28 | 105.63 | 0.8223 | 607.0 | 572.9 | |
| 0.00 | 1.94 | 0.00 | 1.69 | -15.73 | 222.48 | -55.41 | 105.19 | 0.8233 | 578.0 | 452.6 | |
| 2.91 | 4.86 | 2.56 | 4.27 | -16.33 | 221.95 | -55.95 | 105.88 | 0.8288 | 525.3 | 344.5 | |
| 0.00 | 1.50 | 0.00 | 1.32 | -15.93 | 221.95 | -55.94 | 105.40 | 0.8285 | 537.0 | 397.8 | |
| 0.35 | 2.38 | 0.32 | 2.19 | -17.95 | 220.43 | -57.47 | 107.68 | 0.8439 | 576.5 | 454.0 | |
| 1.68 | 2.74 | 1.57 | 2.56 | -19.09 | 219.75 | -58.14 | 108.95 | 0.8507 | 470.5 | 346.1 | |
| 0.00 | 1.77 | 0.00 | 1.58 | -16.09 | 221.26 | -56.64 | 105.53 | 0.8350 | 406.0 | 280.2 | |
| 0.79 | 2.21 | 0.71 | 1.98 | -15.69 | 221.26 | -56.63 | 105.05 | 0.8347 | 424.9 | 285.9 | |
| 0.00 | 0.88 | 0.00 | 0.79 | -15.89 | 221.00 | -56.89 | 105.27 | 0.8372 | 157.0 | 126.1 | |
| 0.00 | 1.06 | 0.00 | 0.99 | -18.17 | 219.65 | -58.24 | 107.87 | 0.8509 | 380.0 | 326.0 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -18.35 | 219.50 | -58.40 | 108.06 | 0.8523 | 501.0 | 435.1 | |
| 0.00 | 2.56 | 0.00 | 2.23 | -11.40 | 222.15 | -55.74 | 99.91 | 0.8246 | 557.0 | 444.3 | |
| 0.00 | 1.68 | 0.00 | 1.47 | -11.63 | 222.03 | -55.87 | 100.20 | 0.8259 | 609.0 | 495.7 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -18.41 | 219.16 | -58.74 | 108.10 | 0.8553 | 272.0 | 216.3 | |
| 0.00 | 1.50 | 0.00 | 1.37 | -15.68 | 220.34 | -57.55 | 104.97 | 0.8431 | -229.0 | -185.8 | |
| 3.97 | 6.01 | 3.55 | 5.36 | -13.07 | 221.27 | -56.62 | 101.91 | 0.8335 | 531.4 | 318.1 | |
| 0.00 | 1.06 | 0.00 | 1.09 | -21.27 | 216.71 | -61.19 | 111.17 | 0.8775 | -528.0 | -521.1 | |
| 0.44 | 1.41 | 0.41 | 1.33 | -16.38 | 219.48 | -58.41 | 105.75 | 0.8512 | 110.2 | 37.3 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -11.64 | 221.30 | -56.59 | 100.18 | 0.8328 | 323.0 | 288.4 | |
| 3.09 | 5.56 | 3.23 | 5.80 | -21.41 | 216.13 | -61.77 | 111.27 | 0.8821 | -547.3 | -492.4 | |
| 4.33 | 8.13 | 4.09 | 7.68 | -15.95 | 219.20 | -58.69 | 105.23 | 0.8534 | -634.4 | -471.5 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -12.75 | 220.30 | -57.59 | 101.49 | 0.8424 | 420.0 | 406.0 | |
| 0.00 | 1.06 | 0.00 | 1.11 | -20.31 | 215.89 | -62.01 | 110.00 | 0.8832 | -345.0 | -380.1 | |
| 0.00 | 3.18 | 0.00 | 3.27 | -19.25 | 216.47 | -61.43 | 108.85 | 0.8780 | -352.0 | -323.4 | |
| 0.00 | 0.71 | 0.00 | 0.76 | -20.63 | 215.24 | -62.66 | 110.32 | 0.8883 | -557.0 | -544.9 | |
| 0.00 | 1.59 | 0.00 | 1.73 | -21.35 | 214.69 | -63.20 | 111.08 | 0.8928 | -339.0 | -243.9 | |
| 0.00 | 2.21 | 0.00 | 2.30 | -19.49 | 215.97 | -61.92 | 109.08 | 0.8821 | -649.0 | -606.4 | |
| 1.85 | 12.01 | 1.98 | 12.74 | -20.38 | 215.28 | -62.62 | 110.04 | 0.8879 | -659.0 | -557.0 | |
| 0.00 | 1.06 | 0.00 | 1.10 | -19.21 | 216.02 | -61.87 | 108.77 | 0.8815 | -615.0 | -473.3 | |
| 0.00 | 1.06 | 0.00 | 1.14 | -20.55 | 214.95 | -62.95 | 110.19 | 0.8904 | -453.0 | -430.7 | |
| 0.00 | 1.41 | 0.00 | 1.50 | -19.92 | 215.40 | -62.49 | 109.52 | 0.8867 | -592.0 | -561.2 | |
| 0.00 | 1.41 | 0.00 | 1.52 | -20.15 | 215.10 | -62.80 | 109.75 | 0.8891 | -625.0 | -555.2 | |
| 0.00 | 1.15 | 0.00 | 1.23 | -19.93 | 215.11 | -62.78 | 109.51 | 0.8888 | -555.0 | -543.7 | |
| 0.00 | 0.88 | 0.00 | 0.87 | -15.54 | 217.66 | -60.23 | 104.67 | 0.8665 | -600.0 | -493.0 | |
| 0.00 | 1.15 | 0.00 | 1.22 | -19.20 | 215.48 | -62.41 | 108.71 | 0.8857 | -567.0 | -549.2 | |
| 2.21 | 60.95 | 2.33 | 65.05 | -18.84 | 215.65 | -62.24 | 108.32 | 0.8842 | -718.9 | -139.0 | |
| 0.00 | 1.24 | 0.00 | 1.25 | -16.75 | 216.84 | -61.05 | 106.01 | 0.8737 | -652.0 | -506.4 | |
| 0.44 | 2.30 | 0.48 | 2.49 | -19.90 | 214.78 | -63.11 | 109.45 | 0.8913 | -440.6 | -416.2 | |
| 1.41 | 13.78 | 1.55 | 15.28 | -20.19 | 214.49 | -63.40 | 109.76 | 0.8936 | -496.7 | -109.7 | |
| 0.00 | 2.56 | 0.00 | 2.86 | -20.80 | 213.88 | -64.02 | 110.40 | 0.8984 | 64.0 | 76.5 | |
| 2.74 | -60.00 | 3.04 | -60.00 | -20.41 | 214.11 | -63.78 | 109.98 | 0.8965 | -360.1 | 999999 | |
| 0.00 | 4.33 | 0.00 | 4.41 | -16.53 | 216.56 | -61.33 | 105.75 | 0.8759 | -536.0 | -518.5 | |
| 16.08 | -57.00 | 17.20 | -57.00 | -18.82 | 215.11 | -62.79 | 108.26 | 0.8883 | -495.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.71 | -15.43 | 217.08 | -60.81 | 104.51 | 0.8713 | -379.0 | -358.1 | |
| 0.00 | 3.36 | 0.00 | 3.40 | -16.02 | 216.71 | -61.18 | 105.17 | 0.8745 | -704.0 | -428.4 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -19.90 | 213.76 | -64.13 | 109.39 | 0.8988 | -192.0 | -201.0 | |
| 0.00 | 0.97 | 0.00 | 1.06 | -18.65 | 214.59 | -63.31 | 108.04 | 0.8922 | 428.0 | 393.2 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -18.89 | 213.76 | -64.13 | 108.26 | 0.8983 | -179.0 | -165.7 | |
| 0.00 | 0.97 | 0.00 | 1.19 | -19.10 | 211.13 | -66.76 | 108.37 | 0.9166 | -187.0 | -176.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
