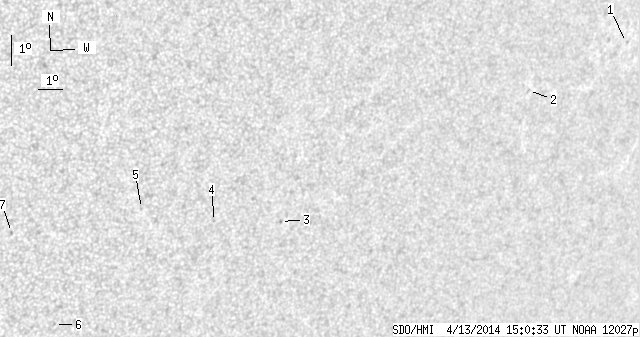

SDO HMI 2014-04-13 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.80 | 0.00 | 4.60 | -23.27 | 316.88 | 39.54 | 239.96 | 0.6725 | -344.0 | -196.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.65 | -17.95 | 330.04 | 52.70 | 251.78 | 0.7989 | 512.0 | 443.6 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -19.76 | 325.86 | 48.52 | 248.75 | 0.7588 | 382.0 | 378.1 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -24.53 | 316.50 | 39.16 | 239.19 | 0.6713 | -614.0 | -549.7 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -24.68 | 313.79 | 36.45 | 237.60 | 0.6416 | -628.0 | -484.7 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -24.43 | 310.76 | 33.42 | 236.20 | 0.6057 | -694.0 | -477.7 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -28.30 | 308.51 | 31.17 | 228.97 | 0.6063 | -581.0 | -386.7 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -25.43 | 306.00 | 28.66 | 231.21 | 0.5578 | -785.0 | -691.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
