SDO HMI 2014-04-13 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.95 | 418.19 | 36.29 | 217.20 | 11.53 | 274.77 | -2.57 | 8.34 | 0.3014 | -1121.4 | -402.8 | |
|
previous
or next observation for the same group /

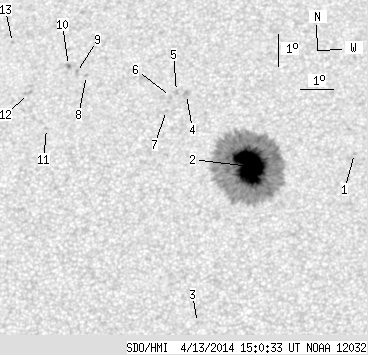

back to the solar disc SDO HMI 2014-04-13 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | 11.81 | 278.20 | 0.86 | 357.21 | 0.3030 | -790.0 | -644.1 | |
| 69.95 | 395.50 | 36.29 | 205.21 | 11.41 | 274.98 | -2.36 | 7.81 | 0.2986 | -1501.9 | -433.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.57 | 273.43 | -3.91 | 17.67 | 0.2243 | -787.0 | -489.1 | |
| 0.00 | 4.50 | 0.00 | 2.37 | 13.70 | 273.01 | -4.33 | 12.45 | 0.3419 | -668.0 | -647.7 | |
| 0.00 | 1.94 | 0.00 | 1.02 | 13.80 | 272.70 | -4.64 | 13.25 | 0.3446 | -776.0 | -648.5 | |
| 0.00 | 2.03 | 0.00 | 1.07 | 13.64 | 272.51 | -4.83 | 13.87 | 0.3428 | -686.0 | -497.2 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 13.20 | 272.40 | -4.94 | 14.52 | 0.3361 | -842.0 | -664.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 14.35 | 269.88 | -7.46 | 20.18 | 0.3664 | 836.0 | 718.8 | |
| 0.00 | 2.30 | 0.00 | 1.22 | 14.45 | 269.56 | -7.78 | 20.86 | 0.3697 | 834.0 | 626.2 | |
| 0.00 | 2.56 | 0.00 | 1.37 | 14.68 | 269.30 | -8.04 | 21.26 | 0.3747 | 893.0 | 769.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 12.68 | 268.69 | -8.66 | 25.02 | 0.3487 | 797.0 | 621.2 | |
| 0.00 | 3.09 | 0.00 | 1.65 | 13.80 | 268.08 | -9.26 | 25.14 | 0.3694 | 934.0 | 659.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 15.45 | 267.51 | -9.83 | 24.59 | 0.3974 | 606.0 | 533.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
