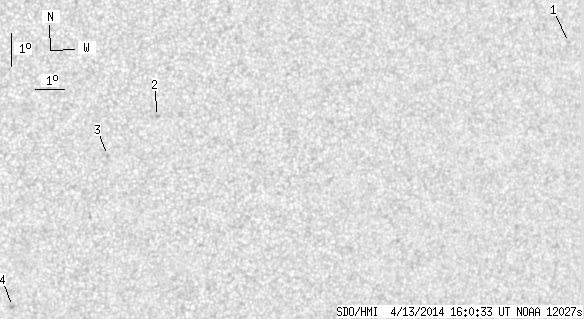

SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.64 | 0.00 | 3.17 | -12.44 | 302.95 | 26.16 | 251.60 | 0.4547 | -434.8 | -345.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.88 | -8.56 | 314.67 | 37.88 | 263.40 | 0.6135 | 595.0 | 394.5 | |
| 0.00 | 1.85 | 0.00 | 1.01 | -11.50 | 300.32 | 23.53 | 254.46 | 0.4078 | -741.0 | -514.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -12.74 | 298.77 | 21.97 | 250.51 | 0.3888 | -729.0 | -604.4 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -17.44 | 296.07 | 19.28 | 236.52 | 0.3793 | -864.0 | -784.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
