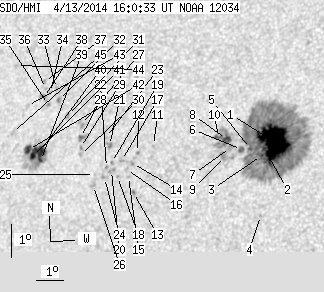

SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.29 | 534.72 | 58.44 | 316.93 | 4.09 | 245.06 | -31.73 | 73.36 | 0.5486 | -249.4 | -200.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.30 | 390.97 | 39.08 | 227.08 | 4.03 | 246.83 | -29.96 | 72.59 | 0.5241 | -1237.8 | -412.7 | |
| 1.41 | -1.00 | 0.82 | -1.00 | 3.83 | 246.53 | -30.26 | 73.13 | 0.5276 | -774.1 | 999999 | |
| 0.79 | -1.00 | 0.46 | -1.00 | 3.62 | 246.43 | -30.36 | 73.56 | 0.5280 | -711.3 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 1.80 | 246.44 | -30.35 | 76.92 | 0.5205 | -728.0 | -502.4 | |
| 1.32 | -1.00 | 0.78 | -1.00 | 3.86 | 246.04 | -30.76 | 73.36 | 0.5346 | -529.8 | 999999 | |
| 1.59 | 3.44 | 0.93 | 2.02 | 3.84 | 245.72 | -31.07 | 73.55 | 0.5390 | -659.9 | -457.9 | |
| 0.00 | 3.18 | 0.00 | 1.88 | 3.93 | 245.33 | -31.46 | 73.62 | 0.5449 | -651.0 | -587.1 | |
| 4.06 | 23.58 | 2.40 | 13.96 | 4.18 | 245.18 | -31.62 | 73.26 | 0.5481 | -865.2 | -246.7 | |
| 0.00 | 7.33 | 0.00 | 4.33 | 3.66 | 245.16 | -31.63 | 74.17 | 0.5461 | 166.0 | 13.0 | |
| 1.77 | -8.00 | 1.05 | -8.00 | 4.26 | 244.89 | -31.90 | 73.28 | 0.5524 | -554.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 4.14 | 242.55 | -34.24 | 74.64 | 0.5842 | 706.0 | 581.6 | |
| 0.00 | 1.24 | 0.00 | 0.76 | 3.96 | 241.97 | -34.82 | 75.20 | 0.5914 | 951.0 | 797.9 | |
| 0.00 | 1.94 | 0.00 | 1.19 | 2.75 | 241.87 | -34.92 | 77.23 | 0.5884 | 856.0 | 692.5 | |
| 0.00 | 1.68 | 0.00 | 1.03 | 3.64 | 241.80 | -34.99 | 75.80 | 0.5925 | 816.0 | 704.2 | |
| 0.00 | 1.41 | 0.00 | 0.87 | 3.25 | 241.67 | -35.12 | 76.50 | 0.5929 | 621.0 | 500.4 | |
| 0.00 | 1.77 | 0.00 | 1.09 | 3.47 | 241.59 | -35.20 | 76.17 | 0.5948 | 768.0 | 653.5 | |
| 0.00 | 1.94 | 0.00 | 1.20 | 3.76 | 241.39 | -35.40 | 75.79 | 0.5985 | 674.0 | 656.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 3.28 | 241.26 | -35.53 | 76.62 | 0.5985 | 848.0 | 690.2 | |
| 0.00 | 1.24 | 0.00 | 0.77 | 3.72 | 241.02 | -35.77 | 76.01 | 0.6033 | 726.0 | 692.8 | |
| 0.00 | 2.56 | 0.00 | 1.59 | 3.47 | 241.03 | -35.76 | 76.40 | 0.6023 | 790.0 | 735.9 | |
| 0.00 | 3.97 | 0.00 | 2.47 | 4.24 | 240.92 | -35.87 | 75.22 | 0.6066 | 871.0 | 727.0 | |
| 0.00 | 1.15 | 0.00 | 0.71 | 3.58 | 240.84 | -35.95 | 76.31 | 0.6053 | 721.0 | 586.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | 4.49 | 240.76 | -36.03 | 74.88 | 0.6097 | 656.0 | 571.4 | |
| 0.00 | 2.38 | 0.00 | 1.48 | 3.27 | 240.78 | -36.01 | 76.82 | 0.6051 | 697.0 | 650.4 | |
| 0.00 | 0.62 | 0.00 | 0.39 | 3.39 | 240.40 | -36.39 | 76.79 | 0.6106 | 606.0 | 519.7 | |
| 0.00 | 2.56 | 0.00 | 1.60 | 3.06 | 240.38 | -36.41 | 77.33 | 0.6098 | 786.0 | 621.1 | |
| 0.00 | 3.53 | 0.00 | 2.23 | 4.95 | 239.83 | -36.96 | 74.58 | 0.6237 | 750.0 | 563.0 | |
| 0.88 | 4.15 | 0.56 | 2.62 | 4.55 | 239.82 | -36.98 | 75.20 | 0.6224 | 730.4 | 672.3 | |
| 0.00 | 1.50 | 0.00 | 0.95 | 4.25 | 239.83 | -36.96 | 75.67 | 0.6211 | 702.0 | 666.5 | |
| 0.00 | 1.77 | 0.00 | 1.11 | 4.03 | 239.84 | -36.95 | 76.00 | 0.6202 | 730.0 | 544.7 | |
| 0.00 | 2.83 | 0.00 | 1.80 | 5.26 | 239.28 | -37.52 | 74.34 | 0.6321 | 733.0 | 610.2 | |
| 0.00 | 2.65 | 0.00 | 1.70 | 5.74 | 238.90 | -37.90 | 73.77 | 0.6388 | 774.0 | 627.4 | |
| 0.00 | 1.85 | 0.00 | 1.19 | 6.12 | 238.79 | -38.00 | 73.25 | 0.6416 | 696.0 | 577.4 | |
| 0.00 | 1.41 | 0.00 | 0.91 | 6.01 | 238.57 | -38.22 | 73.52 | 0.6440 | 437.0 | 458.2 | |
| 0.00 | 1.24 | 0.00 | 0.80 | 5.64 | 238.52 | -38.27 | 74.08 | 0.6433 | 763.0 | 555.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 6.14 | 238.36 | -38.43 | 73.40 | 0.6471 | 635.0 | 539.2 | |
| 0.00 | 1.50 | 0.00 | 0.97 | 6.36 | 238.31 | -38.49 | 73.10 | 0.6487 | 536.0 | 440.2 | |
| 0.00 | 3.53 | 0.00 | 2.29 | 5.87 | 238.31 | -38.48 | 73.83 | 0.6468 | 706.0 | 650.1 | |
| 1.77 | 46.01 | 1.14 | 29.70 | 3.95 | 238.32 | -38.47 | 76.73 | 0.6399 | 848.0 | 418.1 | |
| 9.54 | -39.00 | 6.14 | -39.00 | 4.22 | 238.27 | -38.52 | 76.32 | 0.6416 | 978.6 | 999999 | |
| 3.80 | -39.00 | 2.45 | -39.00 | 4.12 | 238.00 | -38.79 | 76.58 | 0.6447 | 928.5 | 999999 | |
| 4.06 | -39.00 | 2.63 | -39.00 | 4.31 | 237.84 | -38.96 | 76.35 | 0.6474 | 611.5 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.04 | 5.66 | 237.70 | -39.09 | 74.39 | 0.6538 | 387.0 | 315.5 | |
| 0.00 | 1.59 | 0.00 | 1.05 | 6.93 | 237.16 | -39.63 | 72.78 | 0.6653 | 215.0 | 234.6 | |
| 0.00 | 1.85 | 0.00 | 1.22 | 4.87 | 237.17 | -39.62 | 75.77 | 0.6578 | 464.0 | 374.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
