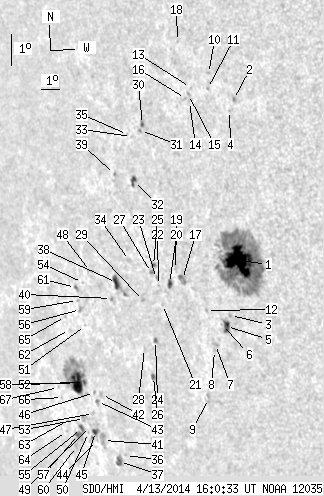

SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.93 | 420.64 | 81.32 | 365.25 | -16.96 | 221.58 | -55.21 | 106.71 | 0.8194 | 85.3 | 90.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 16:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.98 | 224.32 | 34.62 | 176.43 | -15.89 | 225.78 | -51.01 | 105.84 | 0.7793 | 925.9 | 301.9 | |
| 0.00 | 1.77 | 0.00 | 1.35 | -11.04 | 226.91 | -49.88 | 99.64 | 0.7635 | 708.0 | 647.5 | |
| 0.00 | 1.59 | 0.00 | 1.28 | -17.51 | 224.71 | -52.08 | 107.76 | 0.7922 | -435.0 | -354.4 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -11.36 | 226.65 | -50.14 | 100.04 | 0.7666 | 441.0 | 400.5 | |
| 3.97 | 6.71 | 3.24 | 5.47 | -17.83 | 224.37 | -52.42 | 108.11 | 0.7960 | -630.5 | -385.0 | |
| 0.00 | 1.32 | 0.00 | 1.08 | -17.75 | 224.19 | -52.60 | 107.99 | 0.7977 | -200.0 | -232.3 | |
| 0.00 | 2.91 | 0.00 | 2.42 | -18.33 | 223.57 | -53.22 | 108.62 | 0.8045 | 164.0 | 77.7 | |
| 0.00 | 1.32 | 0.00 | 1.10 | -18.51 | 223.44 | -53.35 | 108.82 | 0.8060 | 329.0 | 287.4 | |
| 0.00 | 3.18 | 0.00 | 2.72 | -19.93 | 222.42 | -54.37 | 110.43 | 0.8175 | 672.0 | 453.8 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -10.18 | 225.91 | -50.88 | 98.48 | 0.7744 | 614.0 | 521.5 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -10.62 | 225.76 | -51.03 | 99.05 | 0.7761 | 516.0 | 388.6 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -17.27 | 223.56 | -53.24 | 107.30 | 0.8035 | 318.0 | 265.8 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -10.53 | 224.94 | -51.85 | 98.91 | 0.7849 | 512.0 | 481.2 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -10.94 | 224.79 | -52.00 | 99.43 | 0.7866 | 475.0 | 491.3 | |
| 0.00 | 1.41 | 0.00 | 1.13 | -10.73 | 224.79 | -52.00 | 99.16 | 0.7865 | 599.0 | 511.1 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -10.84 | 224.62 | -52.18 | 99.29 | 0.7884 | 428.0 | 411.6 | |
| 0.00 | 6.36 | 0.00 | 5.35 | -16.24 | 222.70 | -54.09 | 105.94 | 0.8109 | 836.0 | 565.1 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -9.10 | 224.61 | -52.18 | 97.09 | 0.7882 | 419.0 | 342.8 | |
| 0.00 | 1.24 | 0.00 | 1.05 | -15.91 | 222.46 | -54.33 | 105.51 | 0.8130 | 567.0 | 507.6 | |
| 2.30 | 3.80 | 1.97 | 3.25 | -16.30 | 221.97 | -54.82 | 105.95 | 0.8181 | 590.3 | 443.4 | |
| 0.00 | 1.06 | 0.00 | 0.92 | -16.90 | 221.32 | -55.47 | 106.61 | 0.8247 | 194.0 | 244.7 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -16.32 | 221.36 | -55.43 | 105.90 | 0.8239 | 156.0 | 114.3 | |
| 0.00 | 1.68 | 0.00 | 1.46 | -16.10 | 221.34 | -55.45 | 105.64 | 0.8239 | 324.0 | 265.0 | |
| 0.88 | 1.85 | 0.79 | 1.65 | -17.95 | 220.44 | -56.36 | 107.79 | 0.8339 | 519.6 | 398.2 | |
| 0.62 | 1.68 | 0.54 | 1.46 | -15.69 | 221.34 | -55.45 | 105.15 | 0.8236 | 497.1 | 375.6 | |
| 1.15 | 2.38 | 1.04 | 2.17 | -19.03 | 219.77 | -57.02 | 109.00 | 0.8409 | 517.2 | 314.9 | |
| 0.35 | 1.94 | 0.31 | 1.70 | -15.90 | 221.15 | -55.64 | 105.38 | 0.8256 | 329.8 | 236.3 | |
| 0.00 | 1.06 | 0.00 | 0.96 | -18.14 | 219.70 | -57.09 | 107.94 | 0.8407 | 341.0 | 335.3 | |
| 0.00 | 1.41 | 0.00 | 1.26 | -16.70 | 220.34 | -56.45 | 106.28 | 0.8337 | -250.0 | -232.2 | |
| 0.88 | 2.38 | 0.75 | 2.02 | -11.44 | 222.23 | -54.56 | 99.98 | 0.8130 | 584.3 | 528.4 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -11.61 | 222.08 | -54.72 | 100.19 | 0.8146 | 512.0 | 525.6 | |
| 2.56 | 5.21 | 2.22 | 4.52 | -13.07 | 221.23 | -55.56 | 101.95 | 0.8233 | 540.0 | 379.2 | |
| 0.00 | 0.79 | 0.00 | 0.68 | -11.75 | 221.55 | -55.24 | 100.35 | 0.8199 | 440.0 | 373.7 | |
| 0.00 | 2.38 | 0.00 | 2.14 | -15.44 | 220.10 | -56.69 | 104.75 | 0.8352 | -313.0 | -276.7 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -11.67 | 221.35 | -55.44 | 100.25 | 0.8217 | 282.0 | 296.7 | |
| 0.00 | 0.79 | 0.00 | 0.79 | -21.27 | 216.67 | -60.12 | 111.27 | 0.8691 | -691.0 | -636.4 | |
| 3.09 | 6.18 | 3.12 | 6.23 | -21.42 | 216.17 | -60.62 | 111.39 | 0.8732 | -646.1 | -514.8 | |
| 5.30 | 11.75 | 4.88 | 10.79 | -16.04 | 219.08 | -57.71 | 105.39 | 0.8448 | -668.3 | -306.0 | |
| 0.00 | 1.06 | 0.00 | 0.94 | -12.81 | 220.27 | -56.53 | 101.59 | 0.8325 | 393.0 | 315.7 | |
| 0.00 | 1.77 | 0.00 | 1.65 | -16.49 | 218.57 | -58.22 | 105.89 | 0.8496 | -581.0 | -421.8 | |
| 0.00 | 7.15 | 0.00 | 7.33 | -20.70 | 215.61 | -61.18 | 110.52 | 0.8771 | -596.0 | -554.2 | |
| 0.00 | 2.30 | 0.00 | 2.29 | -19.31 | 216.39 | -60.40 | 109.00 | 0.8699 | -436.0 | -427.4 | |
| 0.44 | 1.15 | 0.45 | 1.16 | -19.50 | 216.01 | -60.78 | 109.18 | 0.8731 | -700.2 | -627.4 | |
| 0.00 | 0.71 | 0.00 | 0.73 | -20.67 | 215.22 | -61.57 | 110.44 | 0.8800 | -590.0 | -568.4 | |
| 2.56 | 6.80 | 2.65 | 7.03 | -20.39 | 215.28 | -61.51 | 110.13 | 0.8794 | -763.2 | -516.3 | |
| 0.00 | 0.97 | 0.00 | 0.98 | -19.21 | 215.99 | -60.80 | 108.85 | 0.8730 | -496.0 | -476.7 | |
| 0.00 | 1.32 | 0.00 | 1.36 | -19.84 | 215.52 | -61.27 | 109.53 | 0.8771 | -682.0 | -595.3 | |
| 0.00 | 2.47 | 0.00 | 2.36 | -15.58 | 217.73 | -59.06 | 104.77 | 0.8565 | -688.0 | -560.9 | |
| 0.00 | 1.32 | 0.00 | 1.38 | -20.21 | 215.07 | -61.72 | 109.91 | 0.8810 | -623.0 | -566.1 | |
| 0.00 | 0.26 | 0.00 | 0.28 | -20.38 | 214.81 | -61.98 | 110.08 | 0.8830 | -341.0 | -349.0 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -17.16 | 216.61 | -60.18 | 106.54 | 0.8667 | -395.0 | -384.2 | |
| 2.30 | 59.17 | 2.35 | 61.19 | -18.86 | 215.55 | -61.24 | 108.42 | 0.8763 | -812.5 | -120.6 | |
| 0.00 | 4.33 | 0.00 | 4.52 | -19.94 | 214.84 | -61.95 | 109.58 | 0.8825 | -530.0 | -512.3 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -15.87 | 217.10 | -59.70 | 105.07 | 0.8621 | -491.0 | -455.3 | |
| 1.85 | 9.71 | 1.96 | 10.35 | -20.22 | 214.44 | -62.35 | 109.87 | 0.8858 | -532.5 | -289.8 | |
| 0.00 | 2.91 | 0.00 | 2.87 | -16.66 | 216.56 | -60.23 | 105.96 | 0.8669 | -631.0 | -577.5 | |
| 2.21 | -55.00 | 2.36 | -55.00 | -20.38 | 214.11 | -62.68 | 110.03 | 0.8883 | -394.1 | 999999 | |
| 16.87 | -52.00 | 17.46 | -52.00 | -18.82 | 215.11 | -61.68 | 108.34 | 0.8798 | -570.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.78 | -16.38 | 216.52 | -60.27 | 105.63 | 0.8671 | -542.0 | -527.3 | |
| 0.00 | 1.85 | 0.00 | 2.01 | -20.73 | 213.71 | -63.08 | 110.38 | 0.8915 | 278.0 | 212.4 | |
| 0.62 | 2.65 | 0.61 | 2.61 | -15.98 | 216.60 | -60.19 | 105.18 | 0.8663 | -519.9 | -461.7 | |
| 0.00 | 1.06 | 0.00 | 1.08 | -17.20 | 215.56 | -61.24 | 106.52 | 0.8754 | -430.0 | -354.8 | |
| 0.00 | 0.35 | 0.00 | 0.38 | -19.90 | 213.68 | -63.11 | 109.45 | 0.8913 | -274.0 | -235.2 | |
| 0.00 | 0.79 | 0.00 | 0.87 | -20.22 | 213.37 | -63.42 | 109.79 | 0.8937 | -170.0 | -113.6 | |
| 0.00 | 0.79 | 0.00 | 0.81 | -16.79 | 215.52 | -61.27 | 106.05 | 0.8755 | -305.0 | -279.9 | |
| 0.00 | 0.53 | 0.00 | 0.57 | -19.18 | 213.83 | -62.96 | 108.66 | 0.8898 | -264.0 | -231.3 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -18.86 | 213.77 | -63.02 | 108.30 | 0.8901 | -259.0 | -273.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
