SDO HMI 2014-04-13 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.69 | 419.12 | 39.25 | 217.47 | 11.51 | 274.86 | -1.38 | 4.48 | 0.2988 | -1248.6 | -400.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

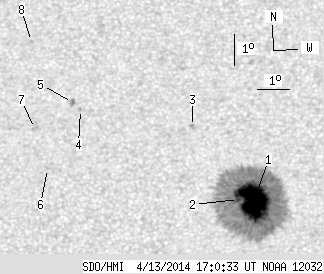

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.92 | 408.26 | 38.33 | 211.70 | 11.43 | 275.01 | -1.23 | 4.07 | 0.2971 | -1517.2 | -425.9 | |
| 1.77 | -1.00 | 0.92 | -1.00 | 11.50 | 274.55 | -1.69 | 5.57 | 0.2988 | -993.9 | 999999 | |
| 0.00 | 1.94 | 0.00 | 1.02 | 13.82 | 273.11 | -3.13 | 8.99 | 0.3401 | -1002.0 | -797.4 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 14.40 | 269.62 | -6.62 | 18.01 | 0.3627 | 668.0 | 581.2 | |
| 0.00 | 3.09 | 0.00 | 1.65 | 14.63 | 269.36 | -6.88 | 18.46 | 0.3675 | 914.0 | 681.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.53 | 268.65 | -7.59 | 22.43 | 0.3396 | 539.0 | 470.8 | |
| 0.00 | 2.56 | 0.00 | 1.36 | 13.81 | 268.20 | -8.04 | 22.16 | 0.3617 | 737.0 | 685.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 16.62 | 268.00 | -8.24 | 19.91 | 0.4050 | 713.0 | 570.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
