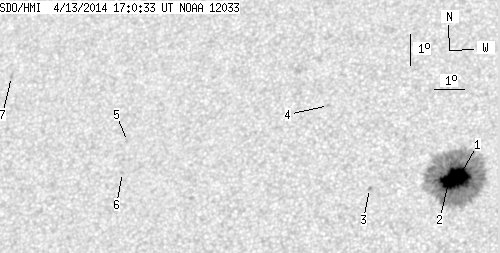

SDO HMI 2014-04-13 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.92 | 268.38 | 22.89 | 143.39 | 12.12 | 263.43 | -12.81 | 35.37 | 0.3752 | -1206.5 | -398.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.11 | 262.02 | 14.46 | 139.77 | 12.15 | 263.78 | -12.45 | 34.68 | 0.3722 | -1483.6 | -412.9 | |
| 15.81 | -1.00 | 8.43 | -1.00 | 11.94 | 263.45 | -12.79 | 35.73 | 0.3725 | -1458.7 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 11.82 | 260.95 | -15.29 | 40.89 | 0.3959 | -797.0 | -691.1 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 14.50 | 259.46 | -16.78 | 39.29 | 0.4432 | -682.0 | -536.2 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 13.59 | 252.90 | -23.34 | 50.02 | 0.5045 | 131.0 | 223.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 12.61 | 252.83 | -23.41 | 51.66 | 0.4963 | 819.0 | 650.8 | |
| 0.00 | 1.59 | 0.00 | 0.96 | 15.87 | 248.62 | -27.62 | 51.31 | 0.5735 | 631.0 | 527.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
