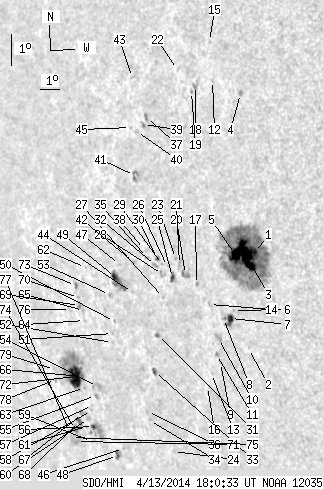

SDO HMI 2014-04-13 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.40 | 467.90 | 68.16 | 397.80 | -16.98 | 221.38 | -54.31 | 106.81 | 0.8109 | 76.7 | 97.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 230.66 | 1.01 | 177.41 | -15.86 | 226.32 | -49.37 | 106.00 | 0.7617 | 1328.7 | 335.8 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -18.74 | 224.94 | -50.75 | 109.51 | 0.7802 | -642.0 | -530.0 | |
| 26.40 | -1.00 | 20.27 | -1.00 | -15.92 | 225.91 | -49.78 | 106.03 | 0.7662 | 1075.0 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.58 | -11.04 | 227.00 | -48.69 | 99.69 | 0.7502 | 759.0 | 608.4 | |
| 8.92 | -1.00 | 6.92 | -1.00 | -15.85 | 225.40 | -50.29 | 105.87 | 0.7717 | 684.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -17.53 | 224.68 | -51.01 | 107.93 | 0.7813 | -580.0 | -426.4 | |
| 3.36 | 7.77 | 2.67 | 6.18 | -17.76 | 224.43 | -51.25 | 108.19 | 0.7841 | -664.5 | -472.7 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -17.74 | 224.09 | -51.60 | 108.11 | 0.7876 | -297.0 | -297.3 | |
| 0.00 | 2.30 | 0.00 | 1.87 | -19.05 | 223.37 | -52.32 | 109.65 | 0.7966 | 371.0 | 334.3 | |
| 0.00 | 3.97 | 0.00 | 3.22 | -18.32 | 223.58 | -52.10 | 108.77 | 0.7934 | 205.0 | 93.9 | |
| 0.00 | 1.41 | 0.00 | 1.15 | -18.80 | 223.27 | -52.42 | 109.32 | 0.7972 | 548.0 | 479.9 | |
| 0.00 | 1.50 | 0.00 | 1.15 | -10.55 | 225.79 | -49.90 | 99.00 | 0.7636 | 328.0 | 364.1 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -19.35 | 222.75 | -52.93 | 109.93 | 0.8030 | 572.0 | 511.0 | |
| 0.00 | 1.68 | 0.00 | 1.36 | -17.26 | 223.56 | -52.13 | 107.43 | 0.7924 | 400.0 | 332.8 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -9.38 | 225.89 | -49.79 | 97.45 | 0.7622 | 442.0 | 361.8 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -19.73 | 222.36 | -53.33 | 110.33 | 0.8074 | 608.0 | 563.0 | |
| 0.00 | 1.68 | 0.00 | 1.37 | -16.61 | 223.15 | -52.54 | 106.56 | 0.7958 | 642.0 | 565.6 | |
| 0.00 | 2.83 | 0.00 | 2.20 | -10.64 | 224.95 | -50.74 | 99.08 | 0.7729 | 630.0 | 493.0 | |
| 0.00 | 1.06 | 0.00 | 0.83 | -10.81 | 224.72 | -50.97 | 99.29 | 0.7755 | 510.0 | 434.8 | |
| 0.00 | 6.01 | 0.00 | 4.93 | -16.26 | 222.71 | -52.98 | 106.08 | 0.7999 | 848.0 | 595.3 | |
| 0.00 | 4.06 | 0.00 | 3.35 | -15.94 | 222.52 | -53.16 | 105.66 | 0.8015 | 605.0 | 496.5 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -10.10 | 224.19 | -51.49 | 98.36 | 0.7810 | 402.0 | 340.1 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -15.74 | 222.39 | -53.30 | 105.40 | 0.8027 | 553.0 | 444.7 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -21.56 | 219.47 | -56.22 | 112.11 | 0.8365 | -378.0 | -333.9 | |
| 1.94 | 4.15 | 1.62 | 3.46 | -16.30 | 222.01 | -53.68 | 106.05 | 0.8069 | 612.2 | 455.5 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -15.95 | 221.88 | -53.80 | 105.61 | 0.8078 | 679.0 | 615.2 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -16.86 | 221.29 | -54.39 | 106.67 | 0.8144 | 345.0 | 290.8 | |
| 0.00 | 2.91 | 0.00 | 2.46 | -16.17 | 221.53 | -54.16 | 105.84 | 0.8115 | 336.0 | 291.2 | |
| 0.00 | 0.71 | 0.00 | 0.59 | -15.87 | 221.65 | -54.04 | 105.48 | 0.8101 | 513.0 | 449.4 | |
| 0.71 | 1.94 | 0.60 | 1.64 | -15.67 | 221.46 | -54.23 | 105.22 | 0.8118 | 554.8 | 432.2 | |
| 0.79 | 2.03 | 0.69 | 1.76 | -17.98 | 220.46 | -55.23 | 107.94 | 0.8234 | 539.1 | 410.4 | |
| 0.00 | 2.21 | 0.00 | 1.87 | -15.87 | 221.27 | -54.41 | 105.45 | 0.8138 | 353.0 | 216.4 | |
| 1.59 | 2.91 | 1.41 | 2.58 | -19.05 | 219.76 | -55.93 | 109.15 | 0.8310 | 414.0 | 241.5 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -20.51 | 218.67 | -57.02 | 110.75 | 0.8423 | 310.0 | 242.9 | |
| 0.00 | 1.41 | 0.00 | 1.21 | -15.60 | 220.95 | -54.74 | 105.09 | 0.8167 | 285.0 | 212.4 | |
| 0.00 | 1.94 | 0.00 | 1.77 | -20.23 | 218.72 | -56.97 | 110.42 | 0.8416 | 205.0 | 219.3 | |
| 0.00 | 2.21 | 0.00 | 1.82 | -11.41 | 222.30 | -53.39 | 99.98 | 0.8011 | 537.0 | 511.4 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -15.34 | 220.89 | -54.80 | 104.77 | 0.8172 | 26.0 | 99.5 | |
| 0.00 | 2.03 | 0.00 | 1.68 | -11.60 | 222.09 | -53.60 | 100.22 | 0.8034 | 514.0 | 451.7 | |
| 0.00 | 1.77 | 0.00 | 1.48 | -11.78 | 221.67 | -54.02 | 100.43 | 0.8076 | 487.0 | 403.2 | |
| 0.00 | 4.68 | 0.00 | 3.96 | -13.09 | 221.16 | -54.53 | 102.02 | 0.8132 | 449.0 | 484.6 | |
| 0.00 | 1.85 | 0.00 | 1.61 | -15.69 | 220.14 | -55.55 | 105.13 | 0.8245 | -334.0 | -269.0 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -10.16 | 221.90 | -53.79 | 98.41 | 0.8050 | 517.0 | 442.9 | |
| 0.00 | 1.06 | 0.00 | 0.93 | -16.58 | 219.70 | -55.99 | 106.17 | 0.8293 | -142.0 | -95.8 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -11.64 | 221.40 | -54.29 | 100.24 | 0.8104 | 440.0 | 347.4 | |
| 0.00 | 1.06 | 0.00 | 1.02 | -21.23 | 216.63 | -59.05 | 111.35 | 0.8604 | -718.0 | -619.5 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -15.68 | 219.36 | -56.33 | 105.07 | 0.8319 | -300.0 | -278.9 | |
| 1.85 | 4.95 | 1.82 | 4.83 | -21.41 | 216.13 | -59.56 | 111.50 | 0.8647 | -628.8 | -548.6 | |
| 4.59 | 19.69 | 4.12 | 17.61 | -16.05 | 218.97 | -56.72 | 105.48 | 0.8358 | -723.9 | -383.0 | |
| 0.00 | 0.97 | 0.00 | 0.89 | -17.37 | 218.29 | -57.39 | 106.99 | 0.8428 | -552.0 | -500.5 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -17.72 | 218.00 | -57.69 | 107.38 | 0.8457 | 222.0 | 210.0 | |
| 0.00 | 0.79 | 0.00 | 0.74 | -17.99 | 217.86 | -57.83 | 107.68 | 0.8471 | 296.0 | 252.4 | |
| 0.00 | 1.41 | 0.00 | 1.29 | -16.53 | 218.40 | -57.29 | 106.01 | 0.8413 | -555.0 | -489.4 | |
| 0.00 | 5.92 | 0.00 | 5.74 | -19.23 | 216.24 | -59.44 | 108.99 | 0.8619 | -424.0 | -441.1 | |
| 0.35 | 2.47 | 0.35 | 2.42 | -19.49 | 215.96 | -59.73 | 109.27 | 0.8645 | -686.0 | -549.2 | |
| 1.68 | 14.57 | 1.68 | 14.52 | -20.41 | 215.24 | -60.44 | 110.26 | 0.8710 | -813.4 | -618.0 | |
| 0.00 | 0.26 | 0.00 | 0.26 | -19.78 | 215.59 | -60.10 | 109.56 | 0.8677 | -499.0 | -503.7 | |
| 0.00 | 1.06 | 0.00 | 1.05 | -19.92 | 215.43 | -60.26 | 109.71 | 0.8691 | -696.0 | -628.8 | |
| 0.00 | 0.53 | 0.00 | 0.54 | -20.85 | 214.81 | -60.88 | 110.72 | 0.8748 | -263.0 | -267.0 | |
| 0.00 | 2.47 | 0.00 | 2.48 | -20.14 | 215.09 | -60.60 | 109.94 | 0.8720 | -623.0 | -581.0 | |
| 0.00 | 0.88 | 0.00 | 0.90 | -20.37 | 214.80 | -60.88 | 110.17 | 0.8745 | -334.0 | -317.0 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -15.61 | 217.41 | -58.28 | 104.85 | 0.8496 | -680.0 | -606.8 | |
| 0.00 | 0.97 | 0.00 | 0.96 | -19.19 | 215.43 | -60.25 | 108.88 | 0.8686 | -641.0 | -576.9 | |
| 0.00 | 1.24 | 0.00 | 1.18 | -17.19 | 216.57 | -59.11 | 106.65 | 0.8578 | -466.0 | -336.4 | |
| 0.00 | 1.32 | 0.00 | 1.26 | -16.89 | 216.67 | -59.02 | 106.30 | 0.8568 | -586.0 | -519.8 | |
| 1.94 | 62.26 | 1.93 | 62.39 | -18.85 | 215.51 | -60.17 | 108.49 | 0.8677 | -831.4 | -98.8 | |
| 0.00 | 3.44 | 0.00 | 3.48 | -19.96 | 214.81 | -60.87 | 109.70 | 0.8741 | -606.0 | -560.9 | |
| 2.12 | 8.92 | 2.17 | 9.19 | -20.19 | 214.46 | -61.22 | 109.93 | 0.8770 | -571.0 | -366.3 | |
| 0.00 | 2.56 | 0.00 | 2.45 | -16.72 | 216.51 | -59.18 | 106.09 | 0.8580 | -643.0 | -566.8 | |
| 0.00 | 1.06 | 0.00 | 1.01 | -16.47 | 216.57 | -59.12 | 105.81 | 0.8574 | -659.0 | -571.5 | |
| 0.00 | 3.00 | 0.00 | 3.13 | -20.77 | 213.85 | -61.83 | 110.54 | 0.8822 | 46.0 | 61.1 | |
| 18.81 | -66.00 | 18.86 | -66.00 | -18.82 | 215.08 | -60.61 | 108.42 | 0.8712 | -603.6 | 999999 | |
| 0.71 | 2.21 | 0.67 | 2.11 | -16.10 | 216.57 | -59.12 | 105.38 | 0.8572 | -566.0 | -451.1 | |
| 1.32 | -68.00 | 1.37 | -68.00 | -20.40 | 214.04 | -61.64 | 110.14 | 0.8804 | -335.7 | 999999 | |
| 0.00 | 2.21 | 0.00 | 2.32 | -20.62 | 213.62 | -62.07 | 110.35 | 0.8839 | 257.0 | 159.8 | |
| 0.00 | 1.77 | 0.00 | 1.72 | -16.79 | 215.91 | -59.78 | 106.14 | 0.8632 | -371.0 | -355.8 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -20.40 | 213.64 | -62.05 | 110.10 | 0.8836 | 323.0 | 266.8 | |
| 0.00 | 1.50 | 0.00 | 1.56 | -18.80 | 213.76 | -61.93 | 108.30 | 0.8817 | -205.0 | -228.9 | |
| 0.00 | 1.68 | 0.00 | 1.74 | -18.50 | 213.89 | -61.80 | 107.96 | 0.8805 | -195.0 | -220.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
