SDO HMI 2014-04-13 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.09 | 32.75 | 1.83 | 19.53 | -9.84 | 241.89 | -33.80 | 99.13 | 0.5571 | 490.6 | 410.8 | |
|
previous
or next observation for the same group /

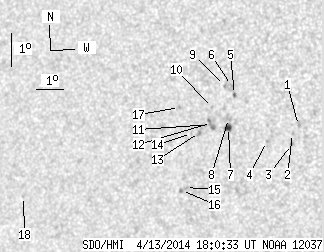

back to the solar disc SDO HMI 2014-04-13 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.82 | 244.99 | -30.70 | 99.60 | 0.5122 | 770.0 | 568.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.05 | 244.75 | -30.94 | 100.01 | 0.5161 | 842.0 | 640.3 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -10.38 | 244.68 | -31.01 | 100.63 | 0.5176 | 940.0 | 794.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -10.24 | 243.80 | -31.89 | 100.20 | 0.5303 | 643.0 | 552.0 | |
| 0.44 | 1.59 | 0.26 | 0.94 | -8.77 | 242.80 | -32.89 | 97.31 | 0.5432 | 700.8 | 571.6 | |
| 0.00 | 1.59 | 0.00 | 0.94 | -8.49 | 242.72 | -32.97 | 96.79 | 0.5441 | 802.0 | 710.5 | |
| 2.65 | 4.33 | 1.57 | 2.56 | -9.75 | 242.48 | -33.21 | 99.07 | 0.5488 | -830.7 | -615.8 | |
| 0.00 | 4.15 | 0.00 | 2.45 | -9.48 | 242.51 | -33.18 | 98.58 | 0.5480 | -199.0 | -224.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -8.48 | 242.47 | -33.22 | 96.75 | 0.5478 | 602.0 | 530.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -9.11 | 241.96 | -33.73 | 97.86 | 0.5556 | 583.0 | 522.2 | |
| 0.00 | 5.03 | 0.00 | 3.00 | -9.62 | 241.87 | -33.82 | 98.76 | 0.5574 | 798.0 | 713.1 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -9.61 | 241.65 | -34.04 | 98.71 | 0.5605 | 687.0 | 651.8 | |
| 0.00 | 2.83 | 0.00 | 1.69 | -9.84 | 241.40 | -34.29 | 99.08 | 0.5643 | 825.0 | 649.9 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -9.85 | 241.10 | -34.59 | 99.07 | 0.5685 | 423.0 | 395.5 | |
| 0.00 | 1.94 | 0.00 | 1.18 | -11.46 | 240.66 | -35.02 | 101.81 | 0.5768 | 175.0 | 246.6 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -11.54 | 240.50 | -35.19 | 101.92 | 0.5792 | 768.0 | 657.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -9.04 | 240.75 | -34.94 | 97.62 | 0.5728 | 726.0 | 615.9 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -11.34 | 234.34 | -41.34 | 100.69 | 0.6614 | 275.0 | 301.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
