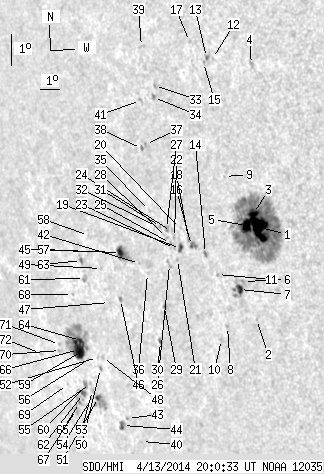

SDO HMI 2014-04-13 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.96 | 444.18 | 71.37 | 365.32 | -16.86 | 221.72 | -52.86 | 106.84 | 0.7965 | 116.0 | 122.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.23 | 236.42 | 19.66 | 177.61 | -15.95 | 226.04 | -48.54 | 106.24 | 0.7528 | 1159.7 | 352.2 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -18.72 | 224.88 | -49.70 | 109.67 | 0.7693 | -654.0 | -515.4 | |
| 4.95 | -1.00 | 3.71 | -1.00 | -15.51 | 225.90 | -48.68 | 105.63 | 0.7538 | 977.1 | 999999 | |
| 0.00 | 3.62 | 0.00 | 2.65 | -11.03 | 227.00 | -47.58 | 99.73 | 0.7375 | 765.0 | 479.7 | |
| 10.16 | -1.00 | 7.70 | -1.00 | -15.84 | 225.45 | -49.13 | 106.02 | 0.7591 | 707.7 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.77 | -17.52 | 224.71 | -49.87 | 108.10 | 0.7693 | -374.0 | -316.6 | |
| 3.89 | 10.95 | 3.02 | 8.52 | -17.75 | 224.43 | -50.15 | 108.35 | 0.7726 | -683.5 | -319.4 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -18.83 | 223.39 | -51.19 | 109.55 | 0.7850 | 698.0 | 587.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -14.29 | 224.89 | -49.69 | 103.92 | 0.7636 | 484.0 | 468.0 | |
| 0.00 | 1.68 | 0.00 | 1.35 | -19.20 | 222.92 | -51.66 | 109.94 | 0.7903 | 470.0 | 391.9 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -17.22 | 223.54 | -51.04 | 107.53 | 0.7812 | 377.0 | 380.9 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -10.72 | 225.26 | -49.32 | 99.23 | 0.7572 | 556.0 | 373.9 | |
| 0.35 | 1.68 | 0.27 | 1.27 | -10.67 | 224.99 | -49.60 | 99.15 | 0.7603 | 727.0 | 579.7 | |
| 0.53 | 2.12 | 0.42 | 1.68 | -16.54 | 223.19 | -51.39 | 106.62 | 0.7840 | 502.2 | 398.0 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -10.80 | 224.81 | -49.77 | 99.33 | 0.7623 | 550.0 | 513.0 | |
| 1.06 | 4.15 | 0.85 | 3.33 | -16.24 | 222.59 | -51.99 | 106.17 | 0.7899 | 753.2 | 698.2 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -10.13 | 224.29 | -50.29 | 98.43 | 0.7678 | 480.0 | 416.6 | |
| 0.00 | 2.30 | 0.00 | 1.85 | -16.02 | 222.52 | -52.06 | 105.88 | 0.7904 | 705.0 | 619.1 | |
| 2.21 | 3.89 | 1.80 | 3.16 | -16.29 | 222.01 | -52.58 | 106.16 | 0.7959 | 706.0 | 484.1 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -15.69 | 222.23 | -52.35 | 105.43 | 0.7930 | 584.0 | 507.9 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -16.61 | 221.72 | -52.86 | 106.53 | 0.7990 | 369.0 | 370.5 | |
| 0.00 | 1.32 | 0.00 | 1.08 | -15.94 | 221.83 | -52.75 | 105.70 | 0.7973 | 541.0 | 503.2 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -16.27 | 221.70 | -52.88 | 106.10 | 0.7989 | 402.0 | 346.9 | |
| 0.00 | 1.68 | 0.00 | 1.37 | -15.75 | 221.75 | -52.83 | 105.45 | 0.7980 | 600.0 | 481.8 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -16.10 | 221.56 | -53.02 | 105.88 | 0.8002 | 437.0 | 368.8 | |
| 0.00 | 2.83 | 0.00 | 2.34 | -16.73 | 221.26 | -53.32 | 106.62 | 0.8038 | 246.0 | 221.1 | |
| 0.00 | 3.18 | 0.00 | 2.61 | -15.64 | 221.53 | -53.05 | 105.29 | 0.8001 | 599.0 | 522.5 | |
| 0.00 | 1.41 | 0.00 | 1.16 | -15.91 | 221.42 | -53.16 | 105.62 | 0.8014 | 379.0 | 275.3 | |
| 0.53 | 1.77 | 0.45 | 1.49 | -17.97 | 220.45 | -54.13 | 108.06 | 0.8130 | 541.0 | 448.7 | |
| 0.62 | 2.56 | 0.53 | 2.21 | -19.01 | 219.74 | -54.84 | 109.24 | 0.8209 | 421.3 | 330.0 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -15.55 | 221.24 | -53.34 | 105.16 | 0.8029 | 341.0 | 316.5 | |
| 0.00 | 1.68 | 0.00 | 1.39 | -15.54 | 221.04 | -53.54 | 105.12 | 0.8049 | 197.0 | 172.5 | |
| 0.00 | 1.41 | 0.00 | 1.14 | -11.31 | 222.29 | -52.29 | 99.89 | 0.7897 | 635.0 | 539.3 | |
| 0.00 | 2.03 | 0.00 | 1.64 | -11.66 | 222.14 | -52.44 | 100.34 | 0.7914 | 599.0 | 521.5 | |
| 0.00 | 1.32 | 0.00 | 1.10 | -15.03 | 220.86 | -53.72 | 104.47 | 0.8063 | 260.0 | 216.4 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -16.91 | 220.00 | -54.58 | 106.71 | 0.8163 | -375.0 | -280.7 | |
| 0.00 | 1.50 | 0.00 | 1.23 | -13.04 | 221.33 | -53.25 | 102.02 | 0.8003 | 607.0 | 545.8 | |
| 0.44 | 1.68 | 0.36 | 1.39 | -13.14 | 221.09 | -53.49 | 102.14 | 0.8028 | 480.4 | 406.3 | |
| 0.00 | 2.56 | 0.00 | 2.07 | -10.09 | 221.93 | -52.65 | 98.34 | 0.7932 | 410.0 | 364.0 | |
| 0.00 | 0.88 | 0.00 | 0.82 | -21.95 | 216.98 | -57.60 | 112.37 | 0.8490 | -159.0 | -141.5 | |
| 0.00 | 1.85 | 0.00 | 1.52 | -11.70 | 221.47 | -53.11 | 100.36 | 0.7984 | 472.0 | 394.0 | |
| 0.00 | 0.79 | 0.00 | 0.68 | -16.57 | 219.71 | -54.88 | 106.27 | 0.8188 | -380.0 | -357.8 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -21.19 | 216.61 | -57.98 | 111.43 | 0.8513 | -581.0 | -556.7 | |
| 2.38 | 4.06 | 2.27 | 3.86 | -21.38 | 216.18 | -58.40 | 111.60 | 0.8551 | -646.4 | -553.9 | |
| 3.97 | 16.25 | 3.48 | 14.19 | -16.16 | 218.83 | -55.75 | 105.69 | 0.8268 | -865.4 | -526.5 | |
| 0.44 | 2.03 | 0.39 | 1.81 | -17.57 | 218.19 | -56.39 | 107.33 | 0.8339 | -631.4 | -511.2 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -17.61 | 217.53 | -57.05 | 107.31 | 0.8399 | -453.0 | -391.7 | |
| 0.00 | 1.32 | 0.00 | 1.25 | -19.23 | 216.25 | -58.33 | 109.10 | 0.8525 | -387.0 | -374.8 | |
| 0.00 | 1.15 | 0.00 | 1.04 | -16.56 | 217.57 | -57.01 | 106.06 | 0.8388 | -541.0 | -482.3 | |
| 0.00 | 1.50 | 0.00 | 1.43 | -19.55 | 215.94 | -58.64 | 109.44 | 0.8554 | -665.0 | -556.8 | |
| 2.21 | 12.54 | 2.14 | 12.14 | -20.41 | 215.29 | -59.29 | 110.37 | 0.8616 | -842.6 | -661.2 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -19.20 | 215.96 | -58.62 | 109.04 | 0.8550 | -562.0 | -553.4 | |
| 0.00 | 1.77 | 0.00 | 1.72 | -20.17 | 215.06 | -59.52 | 110.07 | 0.8633 | -671.0 | -610.3 | |
| 0.00 | 0.79 | 0.00 | 0.78 | -20.41 | 214.85 | -59.73 | 110.32 | 0.8652 | -357.0 | -383.9 | |
| 0.00 | 0.88 | 0.00 | 0.86 | -19.95 | 215.07 | -59.51 | 109.82 | 0.8630 | -669.0 | -610.7 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -19.22 | 215.39 | -59.19 | 109.00 | 0.8598 | -569.0 | -520.3 | |
| 0.00 | 1.15 | 0.00 | 1.05 | -15.99 | 217.07 | -57.51 | 105.35 | 0.8429 | -462.0 | -384.8 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -15.51 | 217.29 | -57.29 | 104.79 | 0.8407 | -453.0 | -431.3 | |
| 0.62 | 57.41 | 0.59 | 55.84 | -18.88 | 215.46 | -59.12 | 108.61 | 0.8589 | -854.3 | -128.0 | |
| 1.15 | 3.71 | 1.13 | 3.64 | -19.98 | 214.73 | -59.85 | 109.82 | 0.8659 | -619.3 | -509.8 | |
| 0.00 | 3.62 | 0.00 | 3.37 | -16.77 | 216.46 | -58.12 | 106.23 | 0.8488 | -639.0 | -573.2 | |
| 2.03 | 5.03 | 2.01 | 5.00 | -20.21 | 214.45 | -60.13 | 110.06 | 0.8683 | -589.5 | -417.1 | |
| 0.97 | 3.09 | 0.90 | 2.87 | -16.22 | 216.55 | -58.03 | 105.59 | 0.8478 | -605.2 | -455.8 | |
| 3.18 | -59.00 | 3.07 | -59.00 | -18.61 | 215.24 | -59.34 | 108.28 | 0.8606 | -765.2 | 999999 | |
| 0.44 | 2.91 | 0.44 | 2.93 | -20.46 | 214.03 | -60.55 | 110.31 | 0.8719 | -375.6 | -250.9 | |
| 16.60 | -59.00 | 16.18 | -59.00 | -18.87 | 214.97 | -59.61 | 108.56 | 0.8631 | -576.8 | 999999 | |
| 0.00 | 5.56 | 0.00 | 5.64 | -20.66 | 213.70 | -60.88 | 110.50 | 0.8747 | 275.0 | 143.4 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -17.19 | 215.52 | -59.06 | 106.65 | 0.8573 | -555.0 | -489.8 | |
| 0.00 | 0.26 | 0.00 | 0.27 | -19.86 | 213.64 | -60.94 | 109.58 | 0.8746 | -301.0 | -251.0 | |
| 0.00 | 1.68 | 0.00 | 1.69 | -18.81 | 213.85 | -60.74 | 108.39 | 0.8722 | -529.0 | -290.5 | |
| 0.00 | 0.97 | 0.00 | 0.98 | -18.62 | 213.89 | -60.69 | 108.18 | 0.8717 | -387.0 | -298.5 | |
| 0.00 | 1.41 | 0.00 | 1.48 | -18.79 | 212.52 | -62.06 | 108.27 | 0.8827 | -247.0 | -203.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
