SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.11 | 273.05 | 24.36 | 144.78 | 12.11 | 263.04 | -10.44 | 29.69 | 0.3556 | -938.7 | -372.1 | |
|
previous
or next observation for the same group /

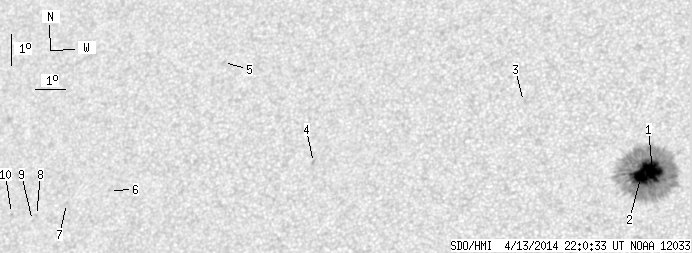

back to the solar disc SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.62 | 263.86 | 15.12 | 139.40 | 12.16 | 263.78 | -9.70 | 28.31 | 0.3488 | -1417.0 | -409.7 | |
| 17.49 | -1.00 | 9.24 | -1.00 | 11.95 | 263.41 | -10.07 | 29.51 | 0.3487 | -1387.5 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 14.45 | 259.59 | -13.88 | 34.18 | 0.4153 | -513.0 | -559.5 | |
| 0.00 | 1.68 | 0.00 | 0.94 | 12.72 | 252.91 | -20.56 | 47.83 | 0.4641 | 819.0 | 645.8 | |
| 0.00 | 1.94 | 0.00 | 1.14 | 16.06 | 249.54 | -23.93 | 47.05 | 0.5346 | 584.0 | 332.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 12.14 | 246.09 | -27.39 | 56.67 | 0.5404 | 465.0 | 412.1 | |
| 0.00 | 1.86 | 0.00 | 1.10 | 11.80 | 244.63 | -28.85 | 58.54 | 0.5558 | 550.0 | 422.5 | |
| 0.00 | 1.15 | 0.00 | 0.69 | 11.47 | 243.61 | -29.87 | 59.92 | 0.5662 | 676.0 | 566.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 11.32 | 243.48 | -29.99 | 60.26 | 0.5667 | 675.0 | 576.3 | |
| 0.00 | 0.71 | 0.00 | 0.43 | 11.59 | 242.70 | -30.77 | 60.48 | 0.5782 | 614.0 | 411.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
