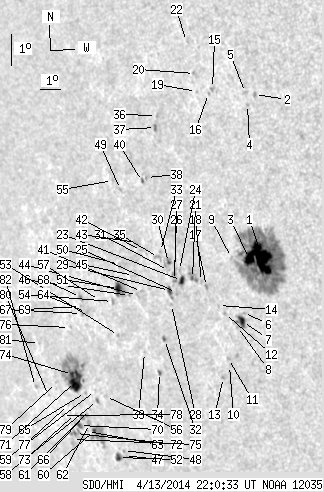

SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.78 | 485.17 | 72.16 | 391.57 | -16.92 | 221.48 | -52.00 | 107.01 | 0.7878 | 121.8 | 90.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.74 | 236.21 | 24.77 | 173.64 | -15.88 | 226.08 | -47.40 | 106.32 | 0.7400 | 1135.9 | 357.6 | |
| 0.00 | 1.59 | 0.00 | 1.14 | -10.96 | 226.98 | -46.49 | 99.70 | 0.7247 | 782.0 | 668.3 | |
| 10.07 | -1.00 | 7.47 | -1.00 | -15.87 | 225.47 | -48.00 | 106.21 | 0.7468 | 652.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -11.23 | 226.61 | -46.86 | 100.06 | 0.7292 | 604.0 | 499.6 | |
| 0.00 | 2.47 | 0.00 | 1.78 | -10.87 | 226.60 | -46.88 | 99.55 | 0.7292 | 681.0 | 539.2 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -17.48 | 224.64 | -48.84 | 108.21 | 0.7582 | -485.0 | -450.0 | |
| 4.68 | 8.13 | 3.56 | 6.18 | -17.75 | 224.49 | -48.98 | 108.54 | 0.7602 | -662.4 | -421.7 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -17.88 | 224.20 | -49.28 | 108.66 | 0.7636 | -448.0 | -408.6 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -15.77 | 224.65 | -48.82 | 105.97 | 0.7557 | 328.0 | 210.5 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -19.03 | 223.35 | -50.13 | 110.00 | 0.7744 | 581.0 | 539.4 | |
| 0.00 | 1.77 | 0.00 | 1.38 | -18.82 | 223.39 | -50.09 | 109.73 | 0.7736 | 564.0 | 460.6 | |
| 0.00 | 1.24 | 0.00 | 0.95 | -17.44 | 223.73 | -49.75 | 108.01 | 0.7679 | 629.0 | 518.9 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -19.38 | 222.90 | -50.58 | 110.36 | 0.7795 | 624.0 | 651.4 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -17.18 | 223.53 | -49.94 | 107.64 | 0.7696 | 304.0 | 310.8 | |
| 0.00 | 2.12 | 0.00 | 1.57 | -10.64 | 225.14 | -48.33 | 99.17 | 0.7460 | 769.0 | 598.7 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -10.78 | 224.93 | -48.55 | 99.34 | 0.7485 | 623.0 | 497.6 | |
| 0.00 | 1.94 | 0.00 | 1.51 | -16.56 | 223.17 | -50.31 | 106.79 | 0.7727 | 581.0 | 469.4 | |
| 0.00 | 1.41 | 0.00 | 1.10 | -16.39 | 222.98 | -50.49 | 106.55 | 0.7744 | 681.0 | 577.3 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -10.67 | 224.39 | -49.09 | 99.19 | 0.7546 | 402.0 | 317.8 | |
| 0.00 | 1.94 | 0.00 | 1.46 | -10.13 | 224.41 | -49.06 | 98.46 | 0.7541 | 517.0 | 435.8 | |
| 0.62 | 10.51 | 0.49 | 8.25 | -16.27 | 222.58 | -50.90 | 106.34 | 0.7785 | 714.9 | 629.0 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -9.14 | 224.23 | -49.24 | 97.15 | 0.7560 | 540.0 | 501.8 | |
| 3.09 | 5.30 | 2.46 | 4.21 | -16.29 | 222.02 | -51.46 | 106.29 | 0.7844 | 600.7 | 279.2 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -15.98 | 222.03 | -51.44 | 105.90 | 0.7839 | 704.0 | 526.8 | |
| 0.00 | 2.12 | 0.00 | 1.70 | -16.63 | 221.64 | -51.84 | 106.68 | 0.7887 | 471.0 | 386.3 | |
| 0.00 | 3.36 | 0.00 | 2.68 | -16.02 | 221.76 | -51.71 | 105.92 | 0.7868 | 611.0 | 535.9 | |
| 0.00 | 1.77 | 0.00 | 1.41 | -16.26 | 221.67 | -51.80 | 106.21 | 0.7879 | 451.0 | 457.8 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -16.97 | 221.25 | -52.23 | 107.06 | 0.7931 | 299.0 | 221.3 | |
| 2.03 | 5.21 | 1.64 | 4.21 | -16.54 | 221.31 | -52.16 | 106.53 | 0.7920 | 283.0 | 174.9 | |
| 0.97 | 5.12 | 0.78 | 4.11 | -15.70 | 221.58 | -51.90 | 105.49 | 0.7884 | 606.1 | 415.0 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -15.94 | 221.49 | -51.99 | 105.78 | 0.7895 | 358.0 | 267.8 | |
| 0.71 | 2.21 | 0.58 | 1.82 | -18.00 | 220.45 | -53.02 | 108.24 | 0.8022 | 495.2 | 377.3 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -15.33 | 221.30 | -52.18 | 105.00 | 0.7909 | 420.0 | 375.8 | |
| 0.71 | 1.77 | 0.59 | 1.49 | -18.98 | 219.74 | -53.73 | 109.35 | 0.8103 | 407.8 | 324.1 | |
| 0.00 | 3.62 | 0.00 | 2.93 | -15.51 | 221.13 | -52.34 | 105.20 | 0.7928 | 283.0 | 232.4 | |
| 0.00 | 1.68 | 0.00 | 1.32 | -11.25 | 222.33 | -51.14 | 99.86 | 0.7774 | 578.0 | 481.9 | |
| 0.62 | 2.30 | 0.49 | 1.81 | -11.60 | 222.19 | -51.28 | 100.31 | 0.7791 | 616.6 | 478.1 | |
| 0.00 | 0.97 | 0.00 | 0.78 | -13.06 | 221.34 | -52.14 | 102.13 | 0.7889 | 568.0 | 512.0 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -18.31 | 219.24 | -54.24 | 108.47 | 0.8144 | 450.0 | 347.5 | |
| 0.44 | 1.50 | 0.36 | 1.21 | -13.17 | 221.10 | -52.37 | 102.25 | 0.7914 | 469.0 | 419.4 | |
| 0.00 | 1.50 | 0.00 | 1.25 | -16.46 | 219.88 | -53.59 | 106.26 | 0.8062 | -274.0 | -214.3 | |
| 0.00 | 2.03 | 0.00 | 1.67 | -15.23 | 220.35 | -53.12 | 104.78 | 0.8004 | -383.0 | -265.5 | |
| 0.00 | 3.27 | 0.00 | 2.69 | -14.97 | 220.24 | -53.24 | 104.45 | 0.8014 | -231.0 | -292.1 | |
| 0.00 | 2.21 | 0.00 | 1.85 | -16.56 | 219.62 | -53.85 | 106.37 | 0.8089 | -447.0 | -433.2 | |
| 0.00 | 1.94 | 0.00 | 1.63 | -15.95 | 219.66 | -53.82 | 105.61 | 0.8080 | -240.0 | -307.0 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -16.53 | 219.21 | -54.27 | 106.28 | 0.8129 | 199.0 | 120.2 | |
| 0.00 | 2.30 | 0.00 | 2.10 | -21.34 | 216.49 | -56.99 | 111.74 | 0.8430 | -306.0 | -351.0 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -21.18 | 216.52 | -56.95 | 111.56 | 0.8425 | -664.0 | -571.8 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -13.32 | 219.92 | -53.56 | 102.36 | 0.8036 | 476.0 | 436.7 | |
| 0.00 | 2.56 | 0.00 | 2.17 | -15.56 | 219.06 | -54.41 | 105.07 | 0.8135 | -360.0 | -368.2 | |
| 4.42 | 15.90 | 3.78 | 13.57 | -16.27 | 218.72 | -54.76 | 105.92 | 0.8174 | -879.7 | -580.1 | |
| 3.09 | 5.04 | 2.86 | 4.65 | -21.37 | 216.11 | -57.37 | 111.72 | 0.8463 | -663.4 | -520.4 | |
| 0.00 | 1.33 | 0.00 | 1.15 | -17.69 | 218.09 | -55.38 | 107.57 | 0.8246 | -639.0 | -529.2 | |
| 0.00 | 2.39 | 0.00 | 2.06 | -16.64 | 218.23 | -55.24 | 106.32 | 0.8224 | -622.0 | -403.9 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -13.02 | 219.60 | -53.88 | 101.97 | 0.8067 | 450.0 | 385.5 | |
| 0.00 | 1.86 | 0.00 | 1.69 | -19.46 | 216.44 | -57.03 | 109.52 | 0.8414 | -490.0 | -411.2 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -16.55 | 217.54 | -55.93 | 106.15 | 0.8288 | -551.0 | -566.7 | |
| 0.62 | 2.12 | 0.57 | 1.96 | -19.55 | 215.92 | -57.55 | 109.56 | 0.8460 | -602.6 | -505.2 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -19.24 | 215.98 | -57.50 | 109.20 | 0.8453 | -614.0 | -561.3 | |
| 1.24 | 18.73 | 1.17 | 17.58 | -20.44 | 215.22 | -58.26 | 110.52 | 0.8530 | -840.1 | -627.1 | |
| 0.00 | 0.71 | 0.00 | 0.66 | -19.78 | 215.36 | -58.11 | 109.77 | 0.8511 | -652.0 | -613.2 | |
| 0.00 | 2.74 | 0.00 | 2.59 | -20.20 | 215.05 | -58.42 | 110.23 | 0.8541 | -671.0 | -593.6 | |
| 0.00 | 0.97 | 0.00 | 0.93 | -20.43 | 214.79 | -58.69 | 110.47 | 0.8566 | -476.0 | -383.3 | |
| 0.00 | 2.30 | 0.00 | 2.07 | -16.85 | 216.66 | -56.81 | 106.43 | 0.8372 | -672.0 | -433.3 | |
| 0.00 | 1.15 | 0.00 | 1.07 | -19.25 | 215.37 | -58.11 | 109.15 | 0.8506 | -545.0 | -431.7 | |
| 0.00 | 4.59 | 0.00 | 4.37 | -19.96 | 214.83 | -58.65 | 109.92 | 0.8558 | -614.0 | -575.7 | |
| 0.00 | 1.86 | 0.00 | 1.68 | -16.86 | 216.37 | -57.10 | 106.42 | 0.8398 | -558.0 | -473.5 | |
| 0.00 | 3.62 | 0.00 | 3.27 | -16.38 | 216.54 | -56.94 | 105.85 | 0.8380 | -607.0 | -507.2 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -16.65 | 216.41 | -57.06 | 106.16 | 0.8393 | -600.0 | -492.7 | |
| 1.77 | 9.72 | 1.70 | 9.41 | -20.21 | 214.42 | -59.05 | 110.17 | 0.8594 | -601.2 | -332.9 | |
| 17.14 | 59.18 | 16.19 | 55.89 | -18.87 | 214.97 | -58.50 | 108.66 | 0.8537 | -665.6 | -148.8 | |
| 0.88 | -70.00 | 0.86 | -70.00 | -20.43 | 214.03 | -59.44 | 110.38 | 0.8629 | -367.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.59 | -19.83 | 214.41 | -59.07 | 109.73 | 0.8593 | -552.0 | -491.4 | |
| 1.94 | -71.00 | 1.84 | -71.00 | -18.65 | 214.91 | -58.56 | 108.39 | 0.8540 | -581.2 | 999999 | |
| 0.00 | 3.62 | 0.00 | 3.56 | -20.60 | 213.73 | -59.74 | 110.54 | 0.8655 | 77.0 | 57.6 | |
| 0.00 | 0.35 | 0.00 | 0.33 | -17.22 | 215.48 | -57.99 | 106.77 | 0.8480 | -499.0 | -531.8 | |
| 0.00 | 1.15 | 0.00 | 1.11 | -19.53 | 214.15 | -59.32 | 109.35 | 0.8611 | -443.0 | -368.9 | |
| 0.00 | 0.44 | 0.00 | 0.43 | -19.83 | 213.59 | -59.89 | 109.64 | 0.8661 | -298.0 | -238.0 | |
| 0.00 | 1.06 | 0.00 | 1.03 | -18.81 | 213.82 | -59.65 | 108.48 | 0.8633 | -503.0 | -356.9 | |
| 0.00 | 0.88 | 0.00 | 0.88 | -19.15 | 213.10 | -60.37 | 108.82 | 0.8695 | -284.0 | -209.5 | |
| 0.00 | 0.62 | 0.00 | 0.61 | -17.55 | 213.46 | -60.01 | 107.00 | 0.8656 | -328.0 | -268.1 | |
| 0.00 | 1.41 | 0.00 | 1.43 | -18.81 | 212.46 | -61.02 | 108.38 | 0.8745 | -207.0 | -214.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
