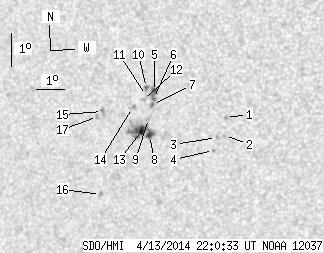

SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.05 | 62.04 | 6.39 | 35.87 | -9.52 | 242.40 | -31.07 | 98.97 | 0.5174 | 415.6 | 254.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 22:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.89 | -9.48 | 245.22 | -28.25 | 99.40 | 0.4752 | 769.0 | 654.6 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.02 | 245.14 | -28.34 | 100.51 | 0.4773 | 657.0 | 536.7 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -10.07 | 244.86 | -28.62 | 100.54 | 0.4817 | 708.0 | 571.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -10.46 | 244.71 | -28.76 | 101.31 | 0.4845 | 857.0 | 711.0 | |
| 2.12 | 6.36 | 1.22 | 3.66 | -8.58 | 242.82 | -30.65 | 97.19 | 0.5102 | 1034.0 | 852.5 | |
| 0.53 | -5.00 | 0.31 | -5.00 | -8.79 | 242.77 | -30.71 | 97.59 | 0.5112 | 985.5 | 999999 | |
| 0.53 | 1.86 | 0.31 | 1.07 | -8.97 | 242.71 | -30.76 | 97.94 | 0.5121 | 682.3 | 491.7 | |
| 2.92 | 30.92 | 1.68 | 17.91 | -9.89 | 242.51 | -30.96 | 99.71 | 0.5162 | -899.6 | -95.2 | |
| 0.00 | 2.92 | 0.00 | 1.68 | -9.38 | 242.53 | -30.94 | 98.72 | 0.5153 | -105.0 | -125.3 | |
| 0.71 | 2.74 | 0.41 | 1.58 | -8.45 | 242.55 | -30.93 | 96.90 | 0.5141 | 777.0 | 647.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -8.69 | 242.53 | -30.95 | 97.37 | 0.5146 | 741.0 | 679.4 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -8.80 | 242.41 | -31.07 | 97.57 | 0.5165 | 810.0 | 646.5 | |
| 4.24 | -8.00 | 2.46 | -8.00 | -9.73 | 242.25 | -31.23 | 99.34 | 0.5199 | -878.7 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.84 | -9.02 | 242.00 | -31.48 | 97.95 | 0.5228 | 841.0 | 559.7 | |
| 0.00 | 3.45 | 0.00 | 2.02 | -9.08 | 240.91 | -32.56 | 97.94 | 0.5387 | 882.0 | 656.4 | |
| 0.00 | 2.03 | 0.00 | 1.20 | -11.57 | 240.54 | -32.93 | 102.46 | 0.5476 | 739.0 | 603.2 | |
| 0.00 | 2.21 | 0.00 | 1.30 | -9.22 | 240.71 | -32.76 | 98.17 | 0.5417 | 706.0 | 533.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
