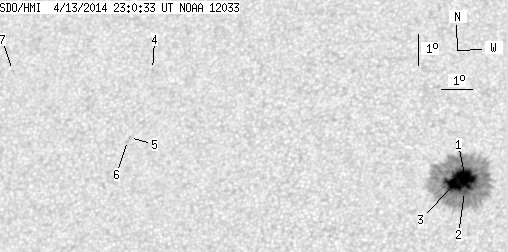

SDO HMI 2014-04-13 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.23 | 268.93 | 22.28 | 141.97 | 12.12 | 263.43 | -9.49 | 27.74 | 0.3468 | -1105.6 | -420.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-13 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.97 | 265.04 | 13.70 | 139.77 | 12.16 | 263.75 | -9.17 | 27.01 | 0.3447 | -1412.4 | -437.2 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 11.75 | 263.73 | -9.19 | 27.61 | 0.3388 | -1466.0 | 999999 | |
| 15.99 | -1.00 | 8.44 | -1.00 | 11.97 | 263.38 | -9.54 | 28.18 | 0.3448 | -1359.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.45 | 15.91 | 253.48 | -19.44 | 41.38 | 0.4861 | 605.0 | 512.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 13.75 | 252.93 | -19.99 | 45.40 | 0.4684 | 536.0 | 438.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 13.66 | 252.87 | -20.05 | 45.62 | 0.4680 | 596.0 | 490.4 | |
| 0.00 | 1.15 | 0.00 | 0.67 | 16.07 | 248.75 | -24.18 | 47.32 | 0.5374 | 595.0 | 454.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
