SDO HMI 2014-04-13 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.46 | 472.10 | 73.24 | 376.58 | -16.89 | 221.47 | -51.45 | 107.06 | 0.7823 | 73.9 | 105.3 | |
|
previous
or next observation for the same group /

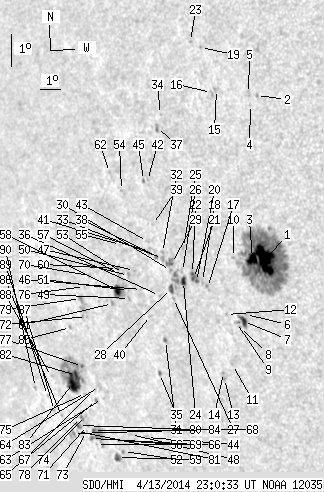

back to the solar disc SDO HMI 2014-04-13 23:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.07 | 225.64 | 23.30 | 164.13 | -15.92 | 226.06 | -46.87 | 106.46 | 0.7341 | 1139.9 | 386.6 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -10.96 | 226.96 | -45.97 | 99.74 | 0.7185 | 744.0 | 630.0 | |
| 8.92 | -1.00 | 6.55 | -1.00 | -15.88 | 225.52 | -47.41 | 106.32 | 0.7401 | 690.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -11.21 | 226.64 | -46.28 | 100.07 | 0.7224 | 434.0 | 402.2 | |
| 0.00 | 2.39 | 0.00 | 1.70 | -10.88 | 226.62 | -46.30 | 99.60 | 0.7224 | 754.0 | 582.3 | |
| 0.00 | 1.06 | 0.00 | 0.79 | -17.52 | 224.64 | -48.29 | 108.36 | 0.7523 | -575.0 | -426.2 | |
| 4.24 | 7.07 | 3.19 | 5.31 | -17.72 | 224.47 | -48.45 | 108.60 | 0.7545 | -682.5 | -366.3 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -17.89 | 224.21 | -48.71 | 108.78 | 0.7575 | -479.0 | -414.4 | |
| 0.00 | 1.59 | 0.00 | 1.20 | -17.73 | 224.13 | -48.79 | 108.55 | 0.7582 | -342.0 | -289.6 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.76 | 224.67 | -48.26 | 106.03 | 0.7495 | 446.0 | 347.0 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -18.99 | 223.45 | -49.48 | 110.06 | 0.7675 | 555.0 | 525.1 | |
| 0.00 | 1.15 | 0.00 | 0.87 | -17.45 | 223.75 | -49.17 | 108.12 | 0.7618 | 482.0 | 377.5 | |
| 0.00 | 1.59 | 0.00 | 1.24 | -19.39 | 222.89 | -50.04 | 110.47 | 0.7740 | 762.0 | 640.8 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -19.20 | 222.91 | -50.01 | 110.24 | 0.7734 | 494.0 | 528.2 | |
| 0.00 | 2.74 | 0.00 | 2.01 | -10.66 | 225.22 | -47.70 | 99.22 | 0.7387 | 695.0 | 550.6 | |
| 0.00 | 1.59 | 0.00 | 1.17 | -10.73 | 224.98 | -47.94 | 99.31 | 0.7416 | 610.0 | 482.8 | |
| 0.00 | 2.03 | 0.00 | 1.56 | -16.57 | 223.14 | -49.78 | 106.88 | 0.7671 | 597.0 | 475.3 | |
| 0.00 | 1.86 | 0.00 | 1.43 | -16.37 | 222.97 | -49.95 | 106.60 | 0.7687 | 529.0 | 543.6 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -9.35 | 224.75 | -48.17 | 97.44 | 0.7438 | 595.0 | 519.2 | |
| 0.88 | 6.71 | 0.68 | 5.21 | -16.35 | 222.68 | -50.24 | 106.53 | 0.7717 | 716.5 | 717.5 | |
| 1.06 | -20.00 | 0.82 | -20.00 | -16.25 | 222.57 | -50.35 | 106.38 | 0.7728 | 788.8 | 999999 | |
| 0.88 | -20.00 | 0.69 | -20.00 | -16.09 | 222.58 | -50.35 | 106.18 | 0.7725 | 827.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -9.13 | 224.33 | -48.59 | 97.14 | 0.7486 | 557.0 | 457.4 | |
| 3.00 | 14.22 | 2.36 | 11.21 | -16.30 | 222.06 | -50.87 | 106.38 | 0.7783 | 697.2 | 421.8 | |
| 0.00 | 1.59 | 0.00 | 1.24 | -15.28 | 222.41 | -50.51 | 105.11 | 0.7734 | 62.0 | 116.9 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -16.00 | 222.12 | -50.81 | 106.00 | 0.7773 | 386.0 | 471.0 | |
| 0.00 | 1.41 | 0.00 | 1.13 | -16.78 | 221.37 | -51.55 | 106.90 | 0.7859 | 376.0 | 270.1 | |
| 2.12 | 5.21 | 1.69 | 4.15 | -16.47 | 221.39 | -51.53 | 106.51 | 0.7854 | 380.5 | 300.6 | |
| 0.62 | 5.30 | 0.49 | 4.20 | -15.71 | 221.67 | -51.26 | 105.59 | 0.7817 | 697.6 | 539.4 | |
| 0.00 | 1.33 | 0.00 | 1.05 | -15.92 | 221.54 | -51.38 | 105.84 | 0.7832 | 427.0 | 320.1 | |
| 0.62 | 1.59 | 0.50 | 1.30 | -18.01 | 220.46 | -52.46 | 108.34 | 0.7966 | 552.7 | 467.3 | |
| 0.00 | 1.33 | 0.00 | 1.05 | -15.35 | 221.34 | -51.58 | 105.09 | 0.7848 | 480.0 | 402.7 | |
| 0.00 | 2.39 | 0.00 | 1.90 | -15.53 | 221.28 | -51.64 | 105.31 | 0.7856 | 379.0 | 295.8 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -11.21 | 222.47 | -50.46 | 99.84 | 0.7700 | 664.0 | 526.4 | |
| 0.53 | 1.86 | 0.44 | 1.54 | -18.99 | 219.71 | -53.21 | 109.44 | 0.8053 | 364.3 | 329.1 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -16.63 | 220.71 | -52.21 | 106.64 | 0.7925 | -320.0 | -273.4 | |
| 0.00 | 2.83 | 0.00 | 2.20 | -11.58 | 222.18 | -50.74 | 100.31 | 0.7733 | 707.0 | 511.1 | |
| 0.35 | 1.41 | 0.28 | 1.13 | -15.45 | 221.00 | -51.92 | 105.17 | 0.7884 | 325.0 | 292.5 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -14.47 | 221.14 | -51.79 | 103.95 | 0.7862 | 260.0 | 267.7 | |
| 0.00 | 1.77 | 0.00 | 1.45 | -17.20 | 220.02 | -52.90 | 107.26 | 0.8001 | -376.0 | -327.1 | |
| 0.00 | 2.56 | 0.00 | 2.07 | -15.27 | 220.71 | -52.21 | 104.92 | 0.7912 | -298.0 | -76.5 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -13.13 | 221.31 | -51.62 | 102.26 | 0.7834 | 548.0 | 443.2 | |
| 0.00 | 1.50 | 0.00 | 1.21 | -14.96 | 220.72 | -52.21 | 104.53 | 0.7909 | 339.0 | 277.9 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -20.87 | 218.05 | -54.88 | 111.49 | 0.8235 | 157.0 | 103.9 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -13.12 | 221.11 | -51.81 | 102.22 | 0.7855 | 481.0 | 488.5 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -16.38 | 219.88 | -53.04 | 106.23 | 0.8007 | -257.0 | -122.6 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -15.78 | 219.74 | -53.18 | 105.46 | 0.8015 | -190.0 | -195.1 | |
| 0.00 | 1.33 | 0.00 | 1.17 | -20.71 | 217.22 | -55.70 | 111.18 | 0.8308 | -186.0 | -179.5 | |
| 0.00 | 1.50 | 0.00 | 1.26 | -16.60 | 219.15 | -53.77 | 106.42 | 0.8081 | 121.0 | 91.2 | |
| 0.00 | 2.12 | 0.00 | 1.76 | -15.91 | 219.38 | -53.54 | 105.59 | 0.8053 | -661.0 | -484.9 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -16.36 | 219.20 | -53.72 | 106.12 | 0.8074 | -649.0 | -467.5 | |
| 0.00 | 1.33 | 0.00 | 1.20 | -21.19 | 216.54 | -56.38 | 111.66 | 0.8375 | -554.0 | -609.3 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -15.83 | 219.14 | -53.78 | 105.46 | 0.8075 | -220.0 | -229.2 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -13.33 | 219.92 | -53.00 | 102.42 | 0.7979 | 521.0 | 483.1 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -14.95 | 219.32 | -53.60 | 104.38 | 0.8051 | -203.0 | -191.5 | |
| 0.00 | 0.88 | 0.00 | 0.80 | -20.84 | 216.46 | -56.47 | 111.22 | 0.8378 | -601.0 | -577.8 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -15.81 | 218.89 | -54.04 | 105.41 | 0.8100 | -396.0 | -403.3 | |
| 5.39 | 14.93 | 4.56 | 12.60 | -16.31 | 218.63 | -54.29 | 106.01 | 0.8130 | -830.7 | -531.1 | |
| 2.83 | 4.86 | 2.58 | 4.43 | -21.35 | 216.09 | -56.83 | 111.78 | 0.8416 | -675.9 | -496.3 | |
| 0.00 | 1.50 | 0.00 | 1.26 | -15.65 | 218.89 | -54.03 | 105.22 | 0.8099 | -599.0 | -563.1 | |
| 0.00 | 1.68 | 0.00 | 1.44 | -16.68 | 218.20 | -54.72 | 106.42 | 0.8174 | -592.0 | -410.9 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -12.75 | 219.49 | -53.44 | 101.66 | 0.8021 | 433.0 | 315.9 | |
| 0.00 | 0.35 | 0.00 | 0.32 | -19.50 | 216.27 | -56.65 | 109.60 | 0.8380 | -592.0 | -566.0 | |
| 0.00 | 2.83 | 0.00 | 2.55 | -19.12 | 216.30 | -56.62 | 109.16 | 0.8374 | -396.0 | -355.8 | |
| 0.44 | 1.50 | 0.40 | 1.37 | -19.53 | 215.90 | -57.02 | 109.60 | 0.8413 | -648.6 | -576.7 | |
| 0.00 | 0.97 | 0.00 | 0.91 | -20.86 | 215.13 | -57.79 | 111.07 | 0.8494 | -514.0 | -412.2 | |
| 0.00 | 0.71 | 0.00 | 0.64 | -19.19 | 215.97 | -56.95 | 109.20 | 0.8404 | -547.0 | -476.4 | |
| 1.15 | 17.32 | 1.07 | 16.03 | -20.42 | 215.21 | -57.71 | 110.57 | 0.8482 | -894.5 | -634.5 | |
| 1.06 | -68.00 | 0.99 | -68.00 | -20.65 | 214.95 | -57.97 | 110.81 | 0.8507 | -512.2 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.54 | -15.74 | 217.33 | -55.59 | 105.20 | 0.8251 | -729.0 | -542.4 | |
| 0.00 | 1.33 | 0.00 | 1.24 | -20.24 | 214.96 | -57.97 | 110.33 | 0.8503 | -607.0 | -548.7 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -16.96 | 216.63 | -56.30 | 106.61 | 0.8325 | -605.0 | -523.0 | |
| 0.00 | 0.53 | 0.00 | 0.50 | -20.42 | 214.79 | -58.13 | 110.51 | 0.8519 | -456.0 | -345.5 | |
| 0.00 | 1.24 | 0.00 | 1.15 | -19.93 | 215.02 | -57.90 | 109.97 | 0.8495 | -683.0 | -527.4 | |
| 0.00 | 1.24 | 0.00 | 1.14 | -19.27 | 215.40 | -57.53 | 109.23 | 0.8456 | -401.0 | -394.9 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -16.05 | 216.92 | -56.00 | 105.54 | 0.8291 | -498.0 | -461.0 | |
| 0.71 | 58.40 | 0.65 | 54.38 | -18.44 | 215.66 | -57.26 | 108.28 | 0.8425 | -728.8 | -174.5 | |
| 0.71 | 3.00 | 0.66 | 2.82 | -19.97 | 214.75 | -58.17 | 109.99 | 0.8518 | -675.6 | -564.7 | |
| 0.53 | 10.34 | 0.47 | 9.20 | -16.39 | 216.54 | -56.38 | 105.92 | 0.8329 | -578.5 | -548.1 | |
| 1.24 | 2.56 | 1.17 | 2.43 | -20.20 | 214.43 | -58.49 | 110.21 | 0.8547 | -645.9 | -496.9 | |
| 0.00 | 2.12 | 0.00 | 2.02 | -20.37 | 214.26 | -58.66 | 110.40 | 0.8563 | -383.0 | -314.5 | |
| 4.68 | -77.00 | 4.34 | -77.00 | -18.68 | 215.18 | -57.75 | 108.52 | 0.8470 | -825.5 | 999999 | |
| 15.99 | -77.00 | 14.94 | -77.00 | -18.88 | 214.89 | -58.03 | 108.72 | 0.8496 | -573.2 | 999999 | |
| 0.44 | 5.65 | 0.42 | 5.44 | -20.41 | 213.99 | -58.94 | 110.42 | 0.8587 | -383.4 | -203.2 | |
| 0.00 | 1.33 | 0.00 | 1.21 | -17.21 | 215.58 | -57.34 | 106.82 | 0.8423 | -489.0 | -409.7 | |
| 0.00 | 0.88 | 0.00 | 0.86 | -19.81 | 213.60 | -59.32 | 109.68 | 0.8613 | -383.0 | -276.0 | |
| 0.00 | 0.97 | 0.00 | 0.95 | -19.63 | 213.27 | -59.65 | 109.43 | 0.8639 | -230.0 | -207.9 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -18.59 | 213.70 | -59.22 | 108.27 | 0.8596 | -276.0 | -268.8 | |
| 0.00 | 0.88 | 0.00 | 0.87 | -19.14 | 213.12 | -59.80 | 108.86 | 0.8648 | -263.0 | -208.5 | |
| 0.00 | 0.97 | 0.00 | 0.97 | -18.84 | 212.53 | -60.39 | 108.46 | 0.8694 | -346.0 | -243.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
