SDO HMI 2014-04-14 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.81 | 282.89 | 25.14 | 148.98 | 12.19 | 263.38 | -8.44 | 24.96 | 0.3403 | -1051.8 | -384.5 | |
|
previous
or next observation for the same group /

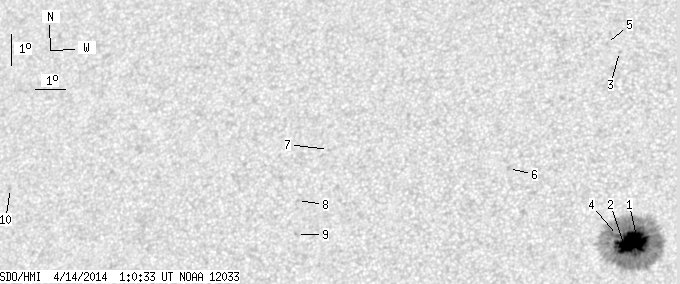

back to the solar disc SDO HMI 2014-04-14 01:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.16 | 274.67 | 15.33 | 144.43 | 12.15 | 263.77 | -8.05 | 24.12 | 0.3365 | -1396.9 | -400.1 | |
| 16.88 | -1.00 | 8.88 | -1.00 | 12.00 | 263.37 | -8.45 | 25.37 | 0.3370 | -1367.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 18.25 | 262.96 | -8.86 | 19.86 | 0.4324 | -698.0 | -500.4 | |
| 1.77 | -1.00 | 0.93 | -1.00 | 12.32 | 263.14 | -8.68 | 25.55 | 0.3433 | -625.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 18.52 | 262.53 | -9.29 | 20.51 | 0.4387 | -596.0 | -432.4 | |
| 0.00 | 1.86 | 0.00 | 1.00 | 14.52 | 259.62 | -12.20 | 30.76 | 0.4016 | -782.0 | -641.8 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 15.30 | 253.76 | -18.06 | 40.21 | 0.4651 | 593.0 | 414.7 | |
| 0.00 | 1.24 | 0.00 | 0.69 | 13.69 | 252.88 | -18.94 | 43.96 | 0.4562 | 656.0 | 487.1 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 12.61 | 252.93 | -18.89 | 45.61 | 0.4438 | 764.0 | 647.8 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 14.50 | 243.04 | -28.78 | 54.40 | 0.5754 | 394.0 | 287.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
