SDO HMI 2014-04-14 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.52 | 91.31 | 16.69 | 51.66 | -9.43 | 242.42 | -28.85 | 99.19 | 0.4843 | 249.6 | 193.1 | |
|
previous
or next observation for the same group /

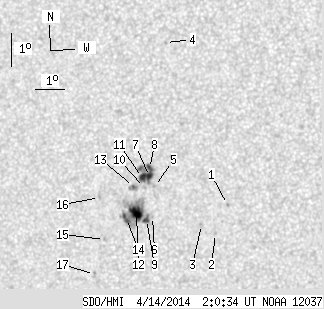

back to the solar disc SDO HMI 2014-04-14 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.63 | -9.64 | 245.39 | -25.88 | 100.33 | 0.4392 | 777.0 | 558.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | -10.50 | 244.91 | -26.36 | 102.11 | 0.4484 | 874.0 | 617.8 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -10.20 | 244.45 | -26.81 | 101.33 | 0.4546 | 665.0 | 539.6 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -4.68 | 243.60 | -27.66 | 89.18 | 0.4647 | 741.0 | 479.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -8.99 | 242.95 | -28.32 | 98.37 | 0.4756 | 698.0 | 492.5 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -9.89 | 242.79 | -28.47 | 100.22 | 0.4792 | -715.0 | -599.3 | |
| 4.24 | 22.27 | 2.39 | 12.56 | -8.68 | 242.80 | -28.47 | 97.70 | 0.4775 | 1062.8 | 697.3 | |
| 2.74 | -7.00 | 1.54 | -7.00 | -8.44 | 242.82 | -28.45 | 97.20 | 0.4769 | 1015.2 | 999999 | |
| 2.65 | 51.09 | 1.50 | 28.96 | -9.97 | 242.58 | -28.69 | 100.34 | 0.4826 | -866.2 | -107.2 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -9.00 | 242.60 | -28.67 | 98.34 | 0.4809 | 322.0 | 225.1 | |
| 4.42 | -7.00 | 2.49 | -7.00 | -8.70 | 242.55 | -28.71 | 97.70 | 0.4812 | 868.3 | 999999 | |
| 11.23 | -9.00 | 6.36 | -9.00 | -9.74 | 242.25 | -29.02 | 99.80 | 0.4871 | -905.0 | 999999 | |
| 0.88 | 4.95 | 0.50 | 2.80 | -8.95 | 242.22 | -29.05 | 98.18 | 0.4866 | 789.9 | 549.3 | |
| 3.36 | -9.00 | 1.91 | -9.00 | -9.90 | 241.88 | -29.38 | 100.06 | 0.4929 | 785.4 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -10.49 | 241.05 | -30.22 | 101.06 | 0.5063 | 792.0 | 666.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.22 | 241.00 | -30.27 | 98.54 | 0.5051 | 745.0 | 590.0 | |
| 0.00 | 2.12 | 0.00 | 1.22 | -11.53 | 240.57 | -30.70 | 102.96 | 0.5153 | 658.0 | 553.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
