SDO HMI 2014-04-14 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.37 | 549.13 | 81.31 | 415.19 | -16.86 | 221.47 | -48.70 | 107.44 | 0.7533 | 136.2 | 109.2 | |
|
previous
or next observation for the same group /

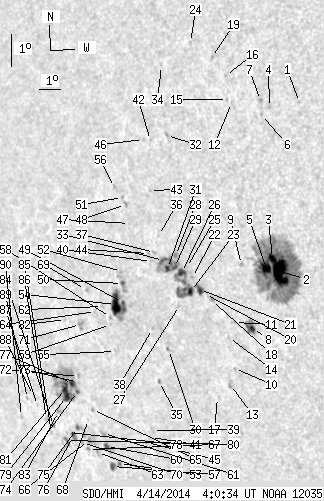

back to the solar disc SDO HMI 2014-04-14 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.76 | -10.95 | 228.24 | -41.92 | 100.07 | 0.6686 | 504.0 | 472.5 | |
| 27.67 | 242.24 | 19.12 | 167.75 | -15.99 | 226.30 | -43.87 | 107.13 | 0.6994 | 1231.0 | 382.0 | |
| 4.77 | -2.00 | 3.31 | -2.00 | -15.57 | 226.07 | -44.10 | 106.49 | 0.7015 | 1016.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -11.02 | 226.98 | -43.19 | 100.06 | 0.6846 | 707.0 | 650.9 | |
| 8.22 | -2.00 | 5.73 | -2.00 | -15.86 | 225.73 | -44.44 | 106.83 | 0.7060 | 792.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -11.21 | 226.61 | -43.56 | 100.30 | 0.6894 | 668.0 | 546.0 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -10.78 | 226.64 | -43.53 | 99.69 | 0.6886 | 810.0 | 721.5 | |
| 2.65 | 11.76 | 1.90 | 8.41 | -17.63 | 224.56 | -45.61 | 109.06 | 0.7228 | -753.9 | -429.0 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -15.66 | 224.67 | -45.49 | 106.36 | 0.7180 | 404.0 | 321.4 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -18.79 | 223.33 | -46.84 | 110.36 | 0.7389 | 545.0 | 426.9 | |
| 0.00 | 1.50 | 0.00 | 1.09 | -17.39 | 223.82 | -46.35 | 108.58 | 0.7308 | 642.0 | 442.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -10.76 | 225.41 | -44.76 | 99.56 | 0.7039 | 563.0 | 523.1 | |
| 0.00 | 3.54 | 0.00 | 2.61 | -19.27 | 222.97 | -47.20 | 110.91 | 0.7438 | 794.0 | 576.1 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -17.83 | 223.40 | -46.77 | 109.09 | 0.7363 | 491.0 | 431.9 | |
| 0.00 | 1.33 | 0.00 | 0.92 | -10.66 | 225.25 | -44.92 | 99.41 | 0.7057 | 426.0 | 380.8 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -9.93 | 225.30 | -44.87 | 98.38 | 0.7048 | 551.0 | 435.3 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -19.62 | 222.21 | -47.96 | 111.21 | 0.7527 | 493.0 | 493.4 | |
| 0.00 | 1.50 | 0.00 | 1.10 | -16.65 | 223.00 | -47.17 | 107.43 | 0.7387 | 636.0 | 507.5 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -9.35 | 224.79 | -45.38 | 97.53 | 0.7107 | 648.0 | 528.2 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -16.45 | 222.79 | -47.38 | 107.12 | 0.7408 | 600.0 | 611.4 | |
| 4.33 | 6.28 | 3.19 | 4.63 | -16.28 | 222.57 | -47.60 | 106.86 | 0.7430 | 836.7 | 650.6 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -15.90 | 222.36 | -47.81 | 106.31 | 0.7447 | 806.0 | 730.6 | |
| 3.80 | 60.21 | 2.83 | 45.13 | -16.31 | 222.13 | -48.04 | 106.83 | 0.7478 | 801.5 | 416.3 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -8.84 | 223.96 | -46.21 | 96.79 | 0.7207 | 618.0 | 489.5 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -15.58 | 222.18 | -47.99 | 105.85 | 0.7463 | 767.0 | 701.1 | |
| 4.16 | -23.00 | 3.10 | -23.00 | -15.71 | 221.91 | -48.26 | 105.99 | 0.7496 | 870.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.33 | -16.70 | 221.48 | -48.69 | 107.23 | 0.7556 | 455.0 | 312.5 | |
| 0.00 | 2.83 | 0.00 | 2.11 | -15.18 | 221.79 | -48.38 | 105.26 | 0.7502 | 741.0 | 634.7 | |
| 2.30 | -23.00 | 1.72 | -23.00 | -15.54 | 221.63 | -48.54 | 105.72 | 0.7524 | 699.0 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.02 | -17.99 | 220.48 | -49.69 | 108.76 | 0.7683 | 364.0 | 382.4 | |
| 2.48 | -23.00 | 1.87 | -23.00 | -15.54 | 221.30 | -48.87 | 105.68 | 0.7561 | 402.2 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -11.54 | 222.34 | -47.82 | 100.44 | 0.7406 | 742.0 | 681.8 | |
| 2.48 | -23.00 | 1.87 | -23.00 | -15.29 | 221.19 | -48.98 | 105.33 | 0.7570 | 279.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -9.43 | 222.55 | -47.62 | 97.59 | 0.7374 | 383.0 | 272.8 | |
| 0.00 | 1.59 | 0.00 | 1.25 | -18.93 | 219.65 | -50.52 | 109.82 | 0.7783 | 390.0 | 371.5 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -14.52 | 221.19 | -48.98 | 104.31 | 0.7561 | 370.0 | 389.9 | |
| 0.00 | 1.68 | 0.00 | 1.28 | -15.01 | 220.84 | -49.33 | 104.93 | 0.7604 | 418.0 | 284.7 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -17.30 | 219.95 | -50.22 | 107.78 | 0.7728 | -673.0 | -565.6 | |
| 0.00 | 2.12 | 0.00 | 1.71 | -20.39 | 218.64 | -51.53 | 111.49 | 0.7909 | 439.0 | 371.0 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -15.27 | 220.61 | -49.56 | 105.24 | 0.7632 | -369.0 | -335.0 | |
| 0.00 | 1.24 | 0.00 | 1.00 | -20.60 | 218.44 | -51.73 | 111.71 | 0.7933 | 453.0 | 418.4 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -11.64 | 221.58 | -48.59 | 100.52 | 0.7494 | 591.0 | 504.3 | |
| 0.00 | 1.06 | 0.00 | 0.80 | -13.13 | 221.15 | -49.01 | 102.48 | 0.7552 | 669.0 | 528.4 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -15.02 | 220.55 | -49.62 | 104.91 | 0.7636 | 169.0 | 112.3 | |
| 0.00 | 1.06 | 0.00 | 0.86 | -20.74 | 218.16 | -52.01 | 111.83 | 0.7962 | 188.0 | 170.4 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -11.59 | 221.27 | -48.90 | 100.43 | 0.7529 | 434.0 | 322.2 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -14.05 | 219.93 | -50.24 | 103.58 | 0.7694 | 438.0 | 450.3 | |
| 0.00 | 2.03 | 0.00 | 1.57 | -13.47 | 219.91 | -50.26 | 102.81 | 0.7692 | 590.0 | 518.8 | |
| 1.06 | 30.77 | 0.84 | 24.57 | -16.40 | 218.79 | -51.38 | 106.47 | 0.7838 | -880.8 | -590.9 | |
| 1.33 | 7.87 | 1.05 | 6.21 | -15.83 | 219.00 | -51.17 | 105.77 | 0.7810 | -852.1 | -610.8 | |
| 0.00 | 1.15 | 0.00 | 0.89 | -13.25 | 219.83 | -50.34 | 102.52 | 0.7699 | 354.0 | 331.8 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -15.47 | 219.08 | -51.09 | 105.31 | 0.7799 | -358.0 | -360.6 | |
| 0.88 | 2.48 | 0.75 | 2.10 | -21.27 | 216.44 | -53.73 | 112.18 | 0.8135 | -651.7 | -543.9 | |
| 14.41 | -49.00 | 11.53 | -49.00 | -16.44 | 218.42 | -51.75 | 106.47 | 0.7877 | -829.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -17.86 | 217.85 | -52.31 | 108.18 | 0.7951 | -635.0 | -566.2 | |
| 0.00 | 2.39 | 0.00 | 1.85 | -12.92 | 219.53 | -50.64 | 102.07 | 0.7729 | 571.0 | 385.1 | |
| 2.65 | 4.33 | 2.27 | 3.71 | -21.33 | 216.02 | -54.15 | 112.18 | 0.8176 | -659.5 | -493.5 | |
| 0.00 | 1.50 | 0.00 | 1.21 | -16.81 | 218.02 | -52.15 | 106.89 | 0.7922 | -471.0 | -380.8 | |
| 0.00 | 0.97 | 0.00 | 0.79 | -17.02 | 217.94 | -52.23 | 107.14 | 0.7933 | -452.0 | -378.6 | |
| 2.30 | 6.45 | 1.96 | 5.50 | -20.70 | 216.03 | -54.14 | 111.41 | 0.8166 | -794.5 | -634.5 | |
| 0.00 | 2.65 | 0.00 | 2.26 | -20.29 | 216.07 | -54.09 | 110.92 | 0.8156 | -737.0 | -620.7 | |
| 0.00 | 1.77 | 0.00 | 1.44 | -16.45 | 217.75 | -52.42 | 106.40 | 0.7945 | -481.0 | -420.9 | |
| 0.00 | 1.77 | 0.00 | 1.53 | -20.84 | 215.45 | -54.72 | 111.50 | 0.8221 | -718.0 | -620.7 | |
| 0.00 | 1.77 | 0.00 | 1.45 | -16.57 | 217.34 | -52.83 | 106.51 | 0.7988 | -484.0 | -515.2 | |
| 0.00 | 1.50 | 0.00 | 1.28 | -19.52 | 215.86 | -54.31 | 109.95 | 0.8166 | -598.0 | -552.1 | |
| 0.53 | 9.90 | 0.46 | 8.57 | -20.44 | 215.16 | -55.01 | 110.97 | 0.8243 | -855.7 | -650.5 | |
| 0.00 | 1.59 | 0.00 | 1.39 | -20.71 | 215.01 | -55.16 | 111.27 | 0.8260 | -618.0 | -517.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -19.80 | 215.50 | -54.67 | 110.25 | 0.8204 | -294.0 | -412.3 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -15.87 | 217.09 | -53.08 | 105.60 | 0.8007 | -508.0 | -521.9 | |
| 0.00 | 1.06 | 0.00 | 0.93 | -20.47 | 214.80 | -55.37 | 110.96 | 0.8276 | -412.0 | -366.8 | |
| 0.00 | 4.16 | 0.00 | 3.48 | -16.90 | 216.41 | -53.76 | 106.81 | 0.8084 | -730.0 | -590.5 | |
| 0.00 | 1.24 | 0.00 | 1.06 | -18.46 | 215.61 | -54.56 | 108.63 | 0.8178 | -710.0 | -614.4 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -18.64 | 215.52 | -54.65 | 108.84 | 0.8188 | -716.0 | -632.4 | |
| 1.06 | 60.83 | 0.91 | 53.10 | -18.91 | 215.33 | -54.84 | 109.14 | 0.8208 | -761.6 | -207.4 | |
| 1.33 | 6.98 | 1.16 | 6.10 | -20.00 | 214.78 | -55.39 | 110.38 | 0.8273 | -699.9 | -590.9 | |
| 2.39 | 4.24 | 2.11 | 3.75 | -20.22 | 214.43 | -55.74 | 110.60 | 0.8307 | -614.8 | -486.7 | |
| 3.54 | -74.00 | 3.06 | -74.00 | -18.65 | 215.18 | -54.99 | 108.80 | 0.8219 | -828.4 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -20.11 | 214.15 | -56.02 | 110.42 | 0.8331 | -263.0 | -269.8 | |
| 5.13 | -74.00 | 4.49 | -74.00 | -19.01 | 214.67 | -55.50 | 109.18 | 0.8272 | -562.9 | 999999 | |
| 1.77 | 6.37 | 1.58 | 5.71 | -20.34 | 213.96 | -56.21 | 110.68 | 0.8351 | -418.5 | -110.3 | |
| 4.69 | -74.00 | 4.10 | -74.00 | -18.77 | 214.73 | -55.44 | 108.89 | 0.8263 | -591.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -16.69 | 215.69 | -54.48 | 106.47 | 0.8152 | -393.0 | -349.3 | |
| 0.00 | 2.48 | 0.00 | 2.21 | -19.43 | 213.99 | -56.18 | 109.60 | 0.8338 | -568.0 | -509.2 | |
| 0.44 | 1.86 | 0.40 | 1.68 | -19.83 | 213.48 | -56.69 | 110.01 | 0.8388 | -296.8 | -246.1 | |
| 0.00 | 0.62 | 0.00 | 0.56 | -20.03 | 213.25 | -56.92 | 110.22 | 0.8410 | -217.0 | -209.3 | |
| 0.00 | 2.56 | 0.00 | 2.33 | -19.59 | 213.21 | -56.96 | 109.69 | 0.8410 | -326.0 | -305.3 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -19.15 | 212.91 | -57.26 | 109.14 | 0.8432 | -265.0 | -192.3 | |
| 0.00 | 0.44 | 0.00 | 0.41 | -18.83 | 212.85 | -57.32 | 108.76 | 0.8434 | -389.0 | -336.2 | |
| 0.00 | 1.06 | 0.00 | 0.98 | -18.90 | 212.46 | -57.71 | 108.79 | 0.8469 | -304.0 | -218.9 | |
| 0.00 | 1.95 | 0.00 | 1.83 | -19.41 | 211.80 | -58.36 | 109.32 | 0.8530 | -309.0 | -197.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
