SDO HMI 2014-04-14 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.20 | 0.00 | 6.38 | -8.31 | 286.13 | 17.06 | 259.48 | 0.3020 | -68.1 | -155.5 | |
|
previous
or next observation for the same group /

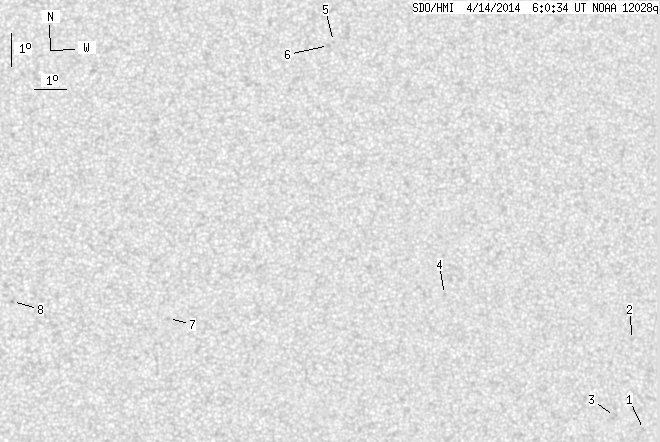

back to the solar disc SDO HMI 2014-04-14 06:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.86 | 0.00 | 1.01 | -12.09 | 292.84 | 23.77 | 253.09 | 0.4136 | -631.0 | -443.6 | |
| 0.00 | 1.50 | 0.00 | 0.81 | -9.39 | 292.25 | 23.18 | 259.41 | 0.3968 | 825.0 | 581.5 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -11.73 | 291.84 | 22.76 | 253.40 | 0.3970 | -434.0 | -558.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.23 | 286.09 | 17.02 | 260.43 | 0.2950 | 787.0 | 578.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -0.71 | 282.46 | 13.39 | 289.94 | 0.2474 | -688.0 | -599.5 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -0.83 | 282.31 | 13.24 | 289.68 | 0.2442 | -532.0 | -397.0 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -9.13 | 277.51 | 8.43 | 247.08 | 0.1579 | -871.0 | -681.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -8.66 | 272.72 | 3.65 | 230.33 | 0.0822 | 999.0 | 800.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
