group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12035	118.40	563.38	88.32	416.72	-16.77	221.52	-47.55	107.53	0.7406	171.2	81.9

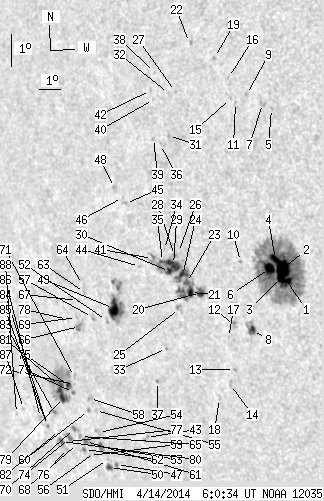

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-04-14 06:00:34 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	4.77	246.61	3.24	167.69	-16.28	226.46	-42.62	107.82	0.6850	1183.9	364.3
2	14.50	-1.00	9.83	-1.00	-15.84	226.40	-42.67	107.18	0.6848	1359.6	999999
3	7.52	-1.00	5.11	-1.00	-16.14	226.20	-42.88	107.56	0.6879	1094.8	999999
4	5.84	-1.00	3.97	-1.00	-15.58	226.13	-42.94	106.74	0.6876	1003.5	999999
5	0.00	1.33	0.00	0.88	-11.02	226.96	-42.11	100.17	0.6710	745.0	544.5
6	8.84	-1.00	6.05	-1.00	-15.83	225.80	-43.27	107.04	0.6920	800.4	999999
7	0.00	3.09	0.00	2.07	-10.84	226.62	-42.45	99.88	0.6752	642.0	606.5
8	3.89	10.26	2.73	7.20	-17.66	224.52	-44.55	109.35	0.7108	-752.7	-408.0
9	0.00	1.50	0.00	1.02	-10.53	226.01	-43.07	99.37	0.6827	720.0	604.7
10	0.00	1.15	0.00	0.80	-15.54	224.62	-44.45	106.39	0.7056	495.0	385.8
11	0.00	1.15	0.00	0.78	-10.74	225.50	-43.57	99.63	0.6892	612.0	492.2
12	0.00	3.71	0.00	2.64	-17.46	223.78	-45.29	108.90	0.7189	405.0	422.6
13	0.00	1.24	0.00	0.89	-18.80	223.33	-45.74	110.63	0.7267	594.0	444.2
14	0.00	2.56	0.00	1.86	-19.24	222.99	-46.08	111.15	0.7315	753.0	637.6
15	0.00	1.33	0.00	0.91	-10.60	225.32	-43.76	99.42	0.6914	549.0	384.3
16	0.00	0.80	0.00	0.54	-9.97	225.34	-43.73	98.50	0.6907	471.0	452.0
17	0.00	0.80	0.00	0.57	-17.80	223.40	-45.67	109.29	0.7239	668.0	550.0
18	0.00	1.24	0.00	0.91	-19.63	222.33	-46.74	111.52	0.7396	487.0	380.1
19	0.00	1.33	0.00	0.91	-9.33	224.85	-44.22	97.56	0.6965	648.0	593.3
20	4.33	8.40	3.13	6.07	-16.35	222.59	-46.48	107.15	0.7305	830.7	527.5
21	3.45	66.05	2.51	48.42	-16.32	222.14	-46.93	107.03	0.7355	788.0	385.5
22	0.00	0.88	0.00	0.62	-8.80	223.86	-45.21	96.78	0.7086	506.0	549.7
23	2.30	-21.00	1.68	-21.00	-16.01	222.06	-47.01	106.59	0.7360	857.8	999999
24	7.34	-21.00	5.36	-21.00	-15.78	221.94	-47.13	106.27	0.7370	800.7	999999
25	0.00	4.60	0.00	3.39	-16.77	221.49	-47.59	107.52	0.7436	308.0	289.4
26	0.00	0.35	0.00	0.26	-15.07	221.97	-47.10	105.32	0.7357	632.0	642.2
27	0.00	0.80	0.00	0.57	-10.23	223.00	-46.07	98.75	0.7194	549.0	439.1
28	0.00	2.39	0.00	1.75	-15.15	221.76	-47.31	105.39	0.7382	734.0	674.1
29	10.08	-21.00	7.40	-21.00	-15.42	221.64	-47.44	105.73	0.7400	698.7	999999
30	3.98	-21.00	2.93	-21.00	-15.62	221.39	-47.68	105.96	0.7430	415.7	999999
31	0.00	1.33	0.00	0.95	-11.53	222.42	-46.65	100.51	0.7270	711.0	510.3
32	0.00	0.97	0.00	0.70	-10.27	222.68	-46.39	98.79	0.7232	517.0	431.3
33	0.00	0.80	0.00	0.60	-17.94	220.46	-48.61	108.89	0.7567	547.0	513.0
34	0.00	0.88	0.00	0.65	-14.94	221.36	-47.71	105.05	0.7424	392.0	398.4
35	1.50	-21.00	1.11	-21.00	-15.29	221.16	-47.91	105.50	0.7451	99.8	999999
36	0.00	0.44	0.00	0.32	-11.77	222.01	-47.06	100.82	0.7320	514.0	490.0
37	0.00	1.50	0.00	1.16	-18.91	219.65	-49.43	110.00	0.7670	582.0	430.6
38	0.00	1.06	0.00	0.76	-9.59	222.18	-46.89	97.84	0.7289	444.0	326.8
39	0.00	1.33	0.00	0.97	-11.57	221.74	-47.34	100.52	0.7350	428.0	402.1
40	0.00	0.71	0.00	0.51	-10.40	221.98	-47.09	98.94	0.7316	502.0	457.2
41	0.00	5.13	0.00	3.83	-15.17	220.73	-48.34	105.27	0.7498	-9.0	-171.4
42	0.00	1.06	0.00	0.77	-10.12	221.90	-47.17	98.55	0.7324	491.0	390.8
43	0.00	2.03	0.00	1.61	-20.57	218.37	-50.70	111.88	0.7830	409.0	362.6
44	0.00	0.80	0.00	0.60	-15.37	220.05	-49.02	105.44	0.7575	248.0	170.7
45	0.00	1.95	0.00	1.47	-13.42	219.97	-49.10	102.87	0.7565	710.0	526.5
46	0.00	0.80	0.00	0.60	-13.23	219.88	-49.19	102.61	0.7573	497.0	345.4
47	0.80	2.03	0.66	1.68	-21.28	216.46	-52.61	112.40	0.8030	-681.4	-574.9
48	0.00	1.59	0.00	1.21	-12.91	219.59	-49.48	102.15	0.7603	613.0	497.2
49	11.94	41.12	9.35	32.06	-16.54	218.38	-50.69	106.74	0.7768	-917.1	-649.3
50	2.48	4.16	2.07	3.47	-21.35	216.05	-53.02	112.41	0.8070	-670.5	-541.8
51	0.00	0.80	0.00	0.66	-21.10	216.08	-53.00	112.10	0.8064	-685.0	-606.1
52	0.00	2.03	0.00	1.61	-16.88	217.91	-51.17	107.11	0.7822	-590.0	-468.3
53	1.95	4.42	1.62	3.69	-20.67	215.92	-53.16	111.55	0.8073	-879.4	-737.5
54	0.00	3.54	0.00	2.94	-20.24	216.03	-53.05	111.04	0.8056	-816.0	-641.4
55	0.00	1.33	0.00	1.10	-19.56	216.20	-52.88	110.22	0.8029	-666.0	-593.9
56	0.00	0.71	0.00	0.60	-20.83	215.51	-53.56	111.68	0.8114	-513.0	-524.2
57	0.00	2.65	0.00	2.13	-16.73	217.25	-51.82	106.84	0.7888	-650.0	-526.2
58	0.00	3.18	0.00	2.64	-19.17	216.06	-53.01	109.72	0.8037	-616.0	-476.9
59	0.00	1.15	0.00	0.98	-20.90	215.20	-53.87	111.71	0.8144	-514.0	-458.2
60	0.00	1.50	0.00	1.25	-19.53	215.84	-53.24	110.13	0.8064	-680.0	-567.6
61	1.50	6.45	1.27	5.46	-20.46	215.21	-53.86	111.17	0.8137	-828.7	-667.4
62	0.71	1.86	0.60	1.58	-20.70	215.03	-54.04	111.44	0.8157	-520.0	-430.8
63	0.00	1.50	0.00	1.21	-15.95	217.14	-51.93	105.84	0.7891	-509.0	-466.8
64	0.00	0.62	0.00	0.50	-15.70	217.13	-51.94	105.52	0.7890	-452.0	-424.7
65	0.00	1.77	0.00	1.51	-20.29	215.02	-54.05	110.93	0.8152	-636.0	-613.5
66	0.00	5.22	0.00	4.26	-16.95	216.49	-52.58	107.03	0.7967	-710.0	-577.2
67	0.00	0.97	0.00	0.79	-16.16	216.70	-52.37	106.06	0.7938	-466.0	-359.9
68	0.00	0.62	0.00	0.53	-20.49	214.76	-54.32	111.14	0.8180	-433.0	-342.7
69	0.00	1.50	0.00	1.23	-16.67	216.45	-52.62	106.67	0.7969	-533.0	-470.6
70	1.15	3.45	0.98	2.94	-20.02	214.83	-54.24	110.58	0.8166	-690.9	-616.2
71	0.00	1.95	0.00	1.62	-18.44	215.59	-53.48	108.76	0.8074	-670.0	-569.1
72	0.00	0.80	0.00	0.67	-18.68	215.48	-53.59	109.04	0.8087	-673.0	-588.6
73	0.71	61.45	0.60	52.31	-18.92	215.32	-53.76	109.31	0.8106	-774.5	-198.2
74	1.24	4.42	1.07	3.82	-20.30	214.41	-54.67	110.86	0.8210	-627.6	-539.3
75	2.12	-73.00	1.79	-73.00	-18.69	215.15	-53.92	109.00	0.8119	-839.8	999999
76	0.00	1.24	0.00	1.08	-20.59	214.14	-54.93	111.17	0.8238	-149.0	-124.4
77	0.00	0.27	0.00	0.23	-20.38	214.25	-54.82	110.93	0.8225	-260.0	-315.3
78	0.00	0.27	0.00	0.22	-16.70	215.97	-53.10	106.64	0.8017	-576.0	-512.7
79	6.45	-73.00	5.51	-73.00	-19.03	214.72	-54.36	109.36	0.8165	-634.9	999999
80	2.12	5.31	1.85	4.64	-20.36	213.93	-55.14	110.86	0.8255	-436.1	-250.4
81	6.01	-73.00	5.13	-73.00	-18.68	214.67	-54.41	108.93	0.8165	-563.8	999999
82	0.00	1.15	0.00	1.00	-20.01	214.00	-55.08	110.45	0.8244	-416.0	-298.8
83	0.53	2.92	0.46	2.54	-19.45	214.01	-55.06	109.77	0.8236	-600.2	-475.2
84	0.35	1.33	0.31	1.17	-19.81	213.43	-55.65	110.13	0.8294	-431.8	-370.3
85	0.00	1.15	0.00	1.01	-19.65	213.40	-55.68	109.93	0.8295	-439.0	-363.3
86	0.00	2.12	0.00	1.88	-19.54	213.17	-55.90	109.77	0.8314	-347.0	-298.3
87	0.00	1.41	0.00	1.28	-19.19	212.37	-56.70	109.26	0.8383	-287.0	-239.1
88	0.00	1.06	0.00	0.97	-19.31	211.90	-57.18	109.34	0.8426	-306.0	-254.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
