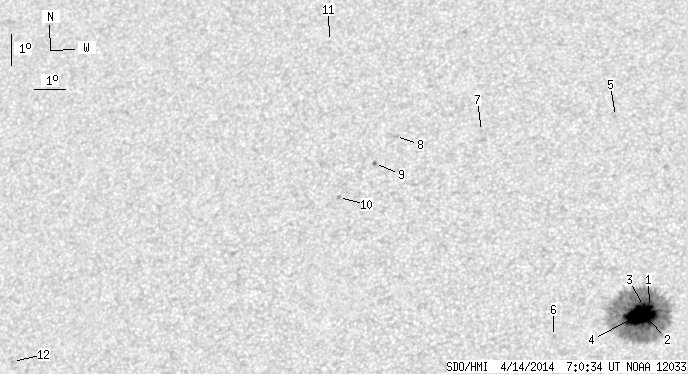

SDO HMI 2014-04-14 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.57 | 274.72 | 24.85 | 143.82 | 12.27 | 263.25 | -5.28 | 16.04 | 0.3228 | -1133.5 | -405.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.71 | 264.03 | 1.94 | 137.91 | 12.34 | 263.84 | -4.69 | 14.49 | 0.3205 | -1291.9 | -421.8 | |
| 23.79 | -1.00 | 12.42 | -1.00 | 12.09 | 263.72 | -4.81 | 15.05 | 0.3170 | -1548.9 | 999999 | |
| 2.83 | -1.00 | 1.48 | -1.00 | 12.37 | 263.65 | -4.87 | 15.01 | 0.3219 | -1151.6 | 999999 | |
| 16.80 | -1.00 | 8.77 | -1.00 | 12.00 | 263.32 | -5.21 | 16.32 | 0.3173 | -1467.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 18.52 | 262.62 | -5.91 | 13.41 | 0.4226 | -824.0 | -656.5 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 11.46 | 260.89 | -7.64 | 23.91 | 0.3228 | -706.0 | -588.8 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 18.09 | 258.35 | -10.18 | 22.70 | 0.4371 | -688.0 | -565.2 | |
| 0.00 | 1.50 | 0.00 | 0.83 | 17.99 | 255.58 | -12.95 | 28.11 | 0.4542 | -849.0 | -627.4 | |
| 0.44 | 1.95 | 0.24 | 1.08 | 17.12 | 254.96 | -13.56 | 30.22 | 0.4472 | 882.2 | 744.2 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 16.04 | 253.88 | -14.65 | 33.51 | 0.4420 | 903.0 | 775.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 21.21 | 253.12 | -15.41 | 28.89 | 0.5148 | -725.0 | -452.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 11.20 | 243.54 | -24.98 | 55.84 | 0.5027 | 880.0 | 727.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
