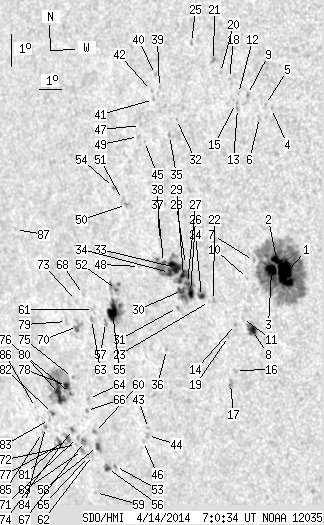

SDO HMI 2014-04-14 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.98 | 550.79 | 88.53 | 403.13 | -16.69 | 221.58 | -46.94 | 107.52 | 0.7339 | 193.6 | 99.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 07:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.62 | 232.73 | 17.90 | 156.83 | -16.00 | 226.41 | -42.12 | 107.54 | 0.6784 | 1272.2 | 373.5 | |
| 5.92 | -1.00 | 4.00 | -1.00 | -15.55 | 226.14 | -42.38 | 106.82 | 0.6808 | 1000.0 | 999999 | |
| 9.28 | -1.00 | 6.29 | -1.00 | -15.87 | 225.85 | -42.68 | 107.22 | 0.6850 | 799.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -10.99 | 226.91 | -41.61 | 100.18 | 0.6646 | 764.0 | 652.2 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -10.85 | 226.69 | -41.83 | 99.95 | 0.6674 | 742.0 | 614.4 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -11.22 | 226.38 | -42.15 | 100.48 | 0.6717 | 473.0 | 495.0 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -15.52 | 225.17 | -43.36 | 106.57 | 0.6925 | 466.0 | 316.8 | |
| 4.07 | 9.02 | 2.83 | 6.28 | -17.63 | 224.52 | -44.01 | 109.44 | 0.7045 | -705.0 | -402.1 | |
| 0.00 | 1.77 | 0.00 | 1.18 | -10.50 | 226.01 | -42.52 | 99.37 | 0.6758 | 768.0 | 585.2 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -16.04 | 224.77 | -43.76 | 107.25 | 0.6983 | 228.0 | 216.6 | |
| 0.00 | 0.80 | 0.00 | 0.56 | -17.24 | 224.20 | -44.33 | 108.81 | 0.7074 | -349.0 | -274.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -10.45 | 225.64 | -42.89 | 99.26 | 0.6804 | 630.0 | 572.7 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -10.89 | 225.52 | -43.01 | 99.91 | 0.6823 | 558.0 | 465.3 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -17.40 | 223.84 | -44.69 | 108.96 | 0.7119 | 776.0 | 622.7 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -10.74 | 225.46 | -43.06 | 99.68 | 0.6829 | 453.0 | 494.9 | |
| 0.00 | 1.68 | 0.00 | 1.20 | -18.80 | 223.37 | -45.15 | 110.78 | 0.7202 | 563.0 | 474.0 | |
| 0.00 | 3.89 | 0.00 | 2.79 | -19.18 | 223.01 | -45.51 | 111.21 | 0.7251 | 725.0 | 627.3 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -9.97 | 225.34 | -43.18 | 98.55 | 0.6839 | 680.0 | 566.8 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -17.75 | 223.41 | -45.11 | 109.34 | 0.7175 | 607.0 | 568.8 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -9.77 | 225.00 | -43.53 | 98.23 | 0.6881 | 504.0 | 379.9 | |
| 0.00 | 2.65 | 0.00 | 1.81 | -9.39 | 224.76 | -43.76 | 97.66 | 0.6909 | 656.0 | 553.5 | |
| 0.00 | 1.59 | 0.00 | 1.13 | -16.61 | 223.10 | -45.43 | 107.70 | 0.7189 | 647.0 | 577.2 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -16.63 | 222.91 | -45.61 | 107.69 | 0.7211 | 536.0 | 572.0 | |
| 2.03 | 6.10 | 1.46 | 4.37 | -16.45 | 222.61 | -45.92 | 107.39 | 0.7243 | 828.5 | 733.9 | |
| 0.00 | 1.24 | 0.00 | 0.86 | -8.78 | 223.92 | -44.61 | 96.77 | 0.7012 | 553.0 | 508.8 | |
| 5.13 | 80.64 | 3.70 | 58.55 | -16.29 | 222.15 | -46.37 | 107.10 | 0.7292 | 806.7 | 320.3 | |
| 1.77 | -26.00 | 1.28 | -26.00 | -16.01 | 222.10 | -46.42 | 106.70 | 0.7293 | 898.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -15.43 | 222.19 | -46.34 | 105.93 | 0.7275 | 657.0 | 597.5 | |
| 6.90 | -26.00 | 4.98 | -26.00 | -15.79 | 221.99 | -46.54 | 106.38 | 0.7303 | 821.4 | 999999 | |
| 3.09 | -26.00 | 2.25 | -26.00 | -16.21 | 221.77 | -46.76 | 106.91 | 0.7334 | 583.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -16.71 | 221.42 | -47.10 | 107.53 | 0.7381 | 330.0 | 258.0 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -11.04 | 222.87 | -45.66 | 99.92 | 0.7149 | 497.0 | 332.9 | |
| 10.52 | -26.00 | 7.64 | -26.00 | -15.49 | 221.71 | -46.81 | 105.93 | 0.7330 | 762.8 | 999999 | |
| 3.27 | -26.00 | 2.39 | -26.00 | -15.62 | 221.40 | -47.13 | 106.06 | 0.7368 | 358.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 1.01 | -11.50 | 222.46 | -46.06 | 100.53 | 0.7201 | 662.0 | 510.9 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -17.94 | 220.48 | -48.04 | 109.00 | 0.7506 | 574.0 | 475.9 | |
| 1.06 | -26.00 | 0.78 | -26.00 | -15.30 | 221.22 | -47.31 | 105.60 | 0.7384 | 295.6 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -14.63 | 221.23 | -47.30 | 104.69 | 0.7374 | 468.0 | 280.9 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -10.03 | 222.31 | -46.21 | 98.48 | 0.7211 | 516.0 | 404.1 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -9.63 | 222.21 | -46.32 | 97.92 | 0.7222 | 469.0 | 399.5 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -10.37 | 221.98 | -46.55 | 98.94 | 0.7252 | 520.0 | 402.4 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -10.10 | 221.94 | -46.58 | 98.55 | 0.7255 | 494.0 | 358.4 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -20.28 | 218.66 | -49.86 | 111.69 | 0.7740 | 648.0 | 508.2 | |
| 0.00 | 2.21 | 0.00 | 1.73 | -20.50 | 218.52 | -50.01 | 111.93 | 0.7759 | 541.0 | 445.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -11.60 | 221.32 | -47.21 | 100.59 | 0.7336 | 559.0 | 480.2 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -20.66 | 218.24 | -50.28 | 112.08 | 0.7790 | 303.0 | 234.9 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -11.11 | 221.24 | -47.28 | 99.91 | 0.7342 | 473.0 | 321.0 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -15.34 | 220.08 | -48.44 | 105.49 | 0.7511 | 315.0 | 220.2 | |
| 0.00 | 1.86 | 0.00 | 1.35 | -11.43 | 221.08 | -47.44 | 100.34 | 0.7362 | 301.0 | 294.4 | |
| 0.00 | 2.39 | 0.00 | 1.78 | -13.43 | 220.03 | -48.50 | 102.95 | 0.7497 | 687.0 | 538.9 | |
| 0.00 | 1.50 | 0.00 | 1.12 | -13.27 | 219.89 | -48.64 | 102.71 | 0.7512 | 545.0 | 343.1 | |
| 0.62 | 10.43 | 0.48 | 8.03 | -15.96 | 218.78 | -49.75 | 106.12 | 0.7661 | -871.4 | -575.6 | |
| 0.00 | 1.86 | 0.00 | 1.52 | -21.32 | 216.48 | -52.05 | 112.56 | 0.7977 | -658.0 | -567.1 | |
| 0.00 | 1.77 | 0.00 | 1.33 | -12.88 | 219.57 | -48.96 | 102.17 | 0.7544 | 584.0 | 497.1 | |
| 12.82 | 30.33 | 9.94 | 23.45 | -16.61 | 218.36 | -50.17 | 106.91 | 0.7714 | -925.2 | -638.9 | |
| 2.21 | 4.69 | 1.82 | 3.87 | -21.35 | 216.04 | -52.49 | 112.51 | 0.8020 | -695.5 | -551.8 | |
| 0.00 | 2.39 | 0.00 | 1.87 | -16.91 | 217.90 | -50.63 | 107.24 | 0.7767 | -618.0 | -484.5 | |
| 2.03 | 6.63 | 1.68 | 5.47 | -20.64 | 215.86 | -52.66 | 111.61 | 0.8025 | -877.7 | -589.9 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -22.04 | 215.02 | -53.50 | 113.17 | 0.8127 | -601.0 | -495.7 | |
| 0.00 | 1.68 | 0.00 | 1.38 | -20.20 | 215.92 | -52.61 | 111.07 | 0.8013 | -796.0 | -737.7 | |
| 0.00 | 1.50 | 0.00 | 1.19 | -16.48 | 217.46 | -51.07 | 106.62 | 0.7807 | -474.0 | -464.5 | |
| 0.00 | 2.21 | 0.00 | 1.84 | -20.90 | 215.47 | -53.06 | 111.85 | 0.8067 | -511.0 | -501.4 | |
| 0.00 | 1.77 | 0.00 | 1.40 | -16.77 | 217.25 | -51.28 | 106.97 | 0.7833 | -745.0 | -614.1 | |
| 0.00 | 1.15 | 0.00 | 0.94 | -19.15 | 216.10 | -52.42 | 109.79 | 0.7979 | -615.0 | -599.2 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -20.91 | 215.24 | -53.28 | 111.83 | 0.8088 | -509.0 | -461.7 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -19.50 | 215.83 | -52.69 | 110.19 | 0.8011 | -693.0 | -565.5 | |
| 0.00 | 4.16 | 0.00 | 3.48 | -20.44 | 215.27 | -53.26 | 111.25 | 0.8079 | -892.0 | -739.5 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -15.99 | 217.13 | -51.39 | 105.95 | 0.7836 | -561.0 | -480.9 | |
| 0.53 | 2.30 | 0.45 | 1.93 | -20.70 | 215.03 | -53.50 | 111.54 | 0.8106 | -590.3 | -437.6 | |
| 0.00 | 6.63 | 0.00 | 5.35 | -16.93 | 216.47 | -52.05 | 107.06 | 0.7914 | -781.0 | -569.0 | |
| 0.00 | 1.77 | 0.00 | 1.49 | -20.29 | 214.97 | -53.56 | 111.02 | 0.8106 | -703.0 | -568.2 | |
| 0.00 | 0.97 | 0.00 | 0.82 | -20.50 | 214.80 | -53.72 | 111.25 | 0.8124 | -361.0 | -343.5 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -16.14 | 216.72 | -51.80 | 106.10 | 0.7880 | -413.0 | -283.4 | |
| 0.80 | 2.30 | 0.67 | 1.94 | -20.02 | 214.83 | -53.70 | 110.67 | 0.8115 | -717.2 | -632.2 | |
| 0.00 | 1.33 | 0.00 | 1.09 | -18.45 | 215.57 | -52.95 | 108.84 | 0.8022 | -646.0 | -573.8 | |
| 0.71 | 60.13 | 0.59 | 50.60 | -18.93 | 215.25 | -53.28 | 109.39 | 0.8060 | -793.2 | -188.9 | |
| 1.77 | 5.57 | 1.51 | 4.75 | -20.31 | 214.46 | -54.06 | 110.97 | 0.8154 | -620.0 | -480.0 | |
| 3.89 | -76.00 | 3.24 | -76.00 | -18.67 | 215.15 | -53.37 | 109.05 | 0.8066 | -813.0 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.80 | -16.74 | 215.98 | -52.54 | 106.76 | 0.7962 | -604.0 | -471.3 | |
| 11.85 | -76.00 | 9.99 | -76.00 | -18.88 | 214.68 | -53.85 | 109.25 | 0.8115 | -602.1 | 999999 | |
| 1.68 | 6.01 | 1.45 | 5.18 | -20.40 | 213.92 | -54.61 | 110.99 | 0.8206 | -452.2 | -255.2 | |
| 0.97 | 2.56 | 0.83 | 2.20 | -19.46 | 214.01 | -54.51 | 109.86 | 0.8185 | -609.9 | -463.8 | |
| 0.00 | 1.50 | 0.00 | 1.30 | -19.63 | 213.76 | -54.76 | 110.03 | 0.8210 | -433.0 | -395.8 | |
| 0.44 | 1.33 | 0.38 | 1.15 | -19.85 | 213.42 | -55.10 | 110.26 | 0.8245 | -442.8 | -382.0 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -19.99 | 213.18 | -55.35 | 110.39 | 0.8269 | -255.0 | -186.9 | |
| 0.00 | 0.88 | 0.00 | 0.77 | -19.20 | 213.19 | -55.33 | 109.44 | 0.8258 | -469.0 | -396.7 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -13.77 | 214.40 | -54.13 | 102.92 | 0.8097 | -136.0 | -144.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
