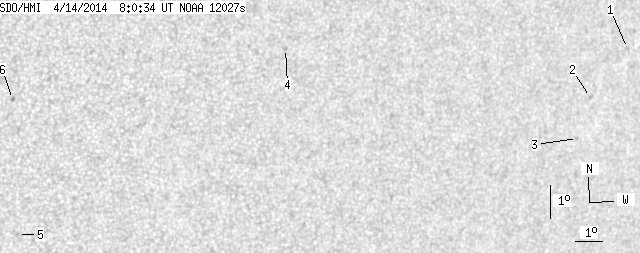

SDO HMI 2014-04-14 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.76 | 0.00 | 5.37 | -14.19 | 302.51 | 34.53 | 251.67 | 0.5734 | -89.5 | -80.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.92 | -11.93 | 312.80 | 44.82 | 258.76 | 0.7055 | 689.0 | 565.8 | |
| 0.00 | 1.77 | 0.00 | 1.21 | -13.51 | 311.54 | 43.57 | 256.34 | 0.6919 | 668.0 | 506.0 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -14.78 | 311.29 | 43.31 | 254.47 | 0.6907 | 579.0 | 520.4 | |
| 0.00 | 1.86 | 0.00 | 1.08 | -12.71 | 299.48 | 31.50 | 254.97 | 0.5298 | -826.0 | -626.4 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -18.78 | 290.90 | 22.92 | 237.58 | 0.4387 | -747.0 | -543.3 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -14.66 | 290.22 | 22.24 | 245.96 | 0.4027 | -900.0 | -726.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
