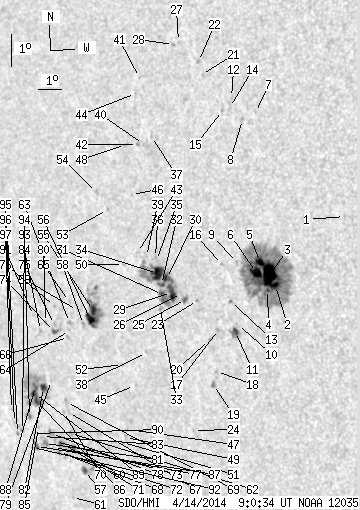

SDO HMI 2014-04-14 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.46 | 549.85 | 81.30 | 394.35 | -16.79 | 221.66 | -45.77 | 107.90 | 0.7208 | 193.7 | 94.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.67 | -14.37 | 229.84 | -37.59 | 106.16 | 0.6174 | 626.0 | 519.2 | |
| 3.18 | 238.02 | 2.10 | 157.61 | -16.29 | 226.62 | -40.81 | 108.30 | 0.6630 | 1153.4 | 366.2 | |
| 22.19 | -2.00 | 14.67 | -2.00 | -15.94 | 226.46 | -40.97 | 107.74 | 0.6642 | 1233.8 | 999999 | |
| 1.77 | -2.00 | 1.17 | -2.00 | -16.39 | 226.27 | -41.17 | 108.35 | 0.6677 | 710.0 | 999999 | |
| 4.95 | -2.00 | 3.28 | -2.00 | -15.55 | 226.19 | -41.25 | 107.09 | 0.6668 | 964.8 | 999999 | |
| 8.93 | -2.00 | 5.95 | -2.00 | -15.85 | 225.95 | -41.49 | 107.47 | 0.6704 | 816.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -11.02 | 226.92 | -40.51 | 100.36 | 0.6505 | 572.0 | 490.4 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -11.20 | 226.36 | -41.07 | 100.56 | 0.6579 | 730.0 | 639.8 | |
| 0.00 | 1.50 | 0.00 | 1.01 | -15.49 | 225.24 | -42.20 | 106.79 | 0.6784 | 365.0 | 272.8 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -17.37 | 224.72 | -42.71 | 109.39 | 0.6886 | -299.0 | -318.8 | |
| 3.27 | 7.87 | 2.23 | 5.38 | -17.58 | 224.58 | -42.86 | 109.65 | 0.6908 | -758.4 | -456.4 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -10.51 | 226.03 | -41.40 | 99.49 | 0.6616 | 798.0 | 592.4 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -16.65 | 224.63 | -42.80 | 108.34 | 0.6882 | 533.0 | 454.6 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -10.80 | 225.90 | -41.53 | 99.92 | 0.6635 | 665.0 | 474.6 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -10.87 | 225.60 | -41.83 | 100.00 | 0.6674 | 564.0 | 451.8 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -15.51 | 224.59 | -42.84 | 106.68 | 0.6863 | 470.0 | 362.7 | |
| 0.00 | 2.12 | 0.00 | 1.47 | -17.47 | 223.87 | -43.56 | 109.32 | 0.6989 | 721.0 | 543.5 | |
| 0.00 | 1.50 | 0.00 | 1.05 | -18.74 | 223.38 | -44.05 | 110.99 | 0.7076 | 652.0 | 490.7 | |
| 0.00 | 2.92 | 0.00 | 2.05 | -19.13 | 223.11 | -44.32 | 111.46 | 0.7115 | 843.0 | 685.6 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -17.75 | 223.39 | -44.04 | 109.60 | 0.7051 | 728.0 | 645.6 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -9.73 | 224.92 | -42.51 | 98.25 | 0.6753 | 481.0 | 502.2 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -9.34 | 224.86 | -42.58 | 97.65 | 0.6759 | 717.0 | 596.6 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -16.53 | 223.23 | -44.20 | 107.85 | 0.7045 | 740.0 | 677.2 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -20.48 | 221.72 | -45.72 | 112.92 | 0.7305 | 586.0 | 468.4 | |
| 1.50 | 3.09 | 1.05 | 2.17 | -16.46 | 222.72 | -44.71 | 107.66 | 0.7104 | 851.1 | 701.5 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -16.27 | 222.60 | -44.83 | 107.36 | 0.7114 | 716.0 | 627.2 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -8.68 | 224.12 | -43.31 | 96.66 | 0.6851 | 656.0 | 613.6 | |
| 0.00 | 1.41 | 0.00 | 0.96 | -8.76 | 223.90 | -43.53 | 96.77 | 0.6879 | 681.0 | 561.9 | |
| 8.31 | 78.78 | 5.88 | 56.07 | -16.21 | 222.17 | -45.26 | 107.20 | 0.7163 | 863.2 | 320.3 | |
| 3.71 | -29.00 | 2.63 | -29.00 | -15.77 | 222.08 | -45.35 | 106.57 | 0.7167 | 983.3 | 999999 | |
| 2.12 | -29.00 | 1.51 | -29.00 | -16.24 | 221.76 | -45.67 | 107.16 | 0.7211 | 584.1 | 999999 | |
| 2.12 | -29.00 | 1.51 | -29.00 | -15.94 | 221.80 | -45.63 | 106.75 | 0.7201 | 562.3 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.90 | -16.66 | 221.54 | -45.89 | 107.70 | 0.7244 | 344.0 | 274.4 | |
| 12.20 | -29.00 | 8.69 | -29.00 | -15.59 | 221.73 | -45.71 | 106.26 | 0.7205 | 725.0 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -15.20 | 221.79 | -45.64 | 105.72 | 0.7191 | 708.0 | 653.9 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -15.10 | 221.78 | -45.66 | 105.59 | 0.7192 | 638.0 | 580.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -11.45 | 222.48 | -44.95 | 100.56 | 0.7067 | 683.0 | 563.8 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -17.95 | 220.47 | -46.96 | 109.23 | 0.7387 | 395.0 | 425.7 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -15.05 | 221.39 | -46.04 | 105.45 | 0.7236 | 478.0 | 466.8 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -11.67 | 222.09 | -45.35 | 100.83 | 0.7116 | 481.0 | 345.6 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.65 | 222.30 | -45.13 | 97.99 | 0.7079 | 488.0 | 451.7 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -11.65 | 221.83 | -45.61 | 100.78 | 0.7147 | 600.0 | 476.1 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -14.90 | 221.02 | -46.41 | 105.19 | 0.7276 | 463.0 | 391.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -10.11 | 222.04 | -45.39 | 98.64 | 0.7112 | 336.0 | 333.4 | |
| 0.00 | 0.53 | 0.00 | 0.40 | -18.91 | 219.55 | -47.88 | 110.33 | 0.7506 | 417.0 | 485.5 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -13.13 | 221.22 | -46.21 | 102.79 | 0.7232 | 537.0 | 494.8 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -20.23 | 218.68 | -48.75 | 111.86 | 0.7624 | 540.0 | 538.7 | |
| 0.00 | 1.86 | 0.00 | 1.32 | -11.61 | 221.30 | -46.13 | 100.69 | 0.7209 | 541.0 | 543.8 | |
| 0.00 | 2.03 | 0.00 | 1.56 | -20.47 | 218.48 | -48.95 | 112.13 | 0.7650 | 474.0 | 411.0 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -15.21 | 220.29 | -47.14 | 105.51 | 0.7364 | 400.0 | 306.2 | |
| 0.00 | 1.06 | 0.00 | 0.82 | -20.61 | 218.27 | -49.16 | 112.27 | 0.7674 | 255.0 | 182.2 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -18.24 | 219.24 | -48.20 | 109.37 | 0.7528 | 368.0 | 348.7 | |
| 0.00 | 1.50 | 0.00 | 1.10 | -13.51 | 220.03 | -47.40 | 103.17 | 0.7373 | 682.0 | 564.8 | |
| 0.00 | 2.21 | 0.00 | 1.62 | -12.96 | 219.67 | -47.76 | 102.39 | 0.7410 | 568.0 | 470.8 | |
| 4.86 | 40.94 | 3.68 | 30.97 | -16.50 | 218.47 | -48.96 | 106.96 | 0.7584 | -952.2 | -668.6 | |
| 6.19 | -55.00 | 4.71 | -55.00 | -16.76 | 218.23 | -49.20 | 107.26 | 0.7613 | -839.9 | 999999 | |
| 2.30 | 8.40 | 1.85 | 6.75 | -21.33 | 216.01 | -51.42 | 112.70 | 0.7916 | -679.2 | -550.0 | |
| 0.00 | 2.92 | 0.00 | 2.24 | -16.89 | 217.85 | -49.58 | 107.37 | 0.7656 | -588.0 | -420.1 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -16.45 | 217.71 | -49.72 | 106.77 | 0.7664 | -504.0 | -452.4 | |
| 1.95 | 3.63 | 1.57 | 2.93 | -20.62 | 215.79 | -51.64 | 111.77 | 0.7925 | -840.9 | -681.5 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -22.11 | 214.98 | -52.45 | 113.46 | 0.8030 | -562.0 | -403.5 | |
| 0.00 | 2.39 | 0.00 | 1.92 | -20.15 | 215.85 | -51.58 | 111.19 | 0.7911 | -814.0 | -707.0 | |
| 0.00 | 1.86 | 0.00 | 1.44 | -16.78 | 217.20 | -50.23 | 107.13 | 0.7723 | -702.0 | -592.0 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -17.02 | 217.11 | -50.32 | 107.43 | 0.7736 | -546.0 | -492.9 | |
| 0.00 | 1.86 | 0.00 | 1.43 | -16.15 | 217.43 | -50.00 | 106.34 | 0.7691 | -133.0 | -175.8 | |
| 0.00 | 1.95 | 0.00 | 1.52 | -17.23 | 216.99 | -50.45 | 107.68 | 0.7752 | -579.0 | -481.0 | |
| 0.00 | 1.41 | 0.00 | 1.13 | -19.50 | 216.05 | -51.39 | 110.42 | 0.7882 | -651.0 | -613.0 | |
| 0.00 | 3.98 | 0.00 | 3.24 | -20.81 | 215.38 | -52.05 | 111.93 | 0.7969 | -589.0 | -507.7 | |
| 0.00 | 2.65 | 0.00 | 2.12 | -19.19 | 216.08 | -51.35 | 110.03 | 0.7873 | -597.0 | -607.1 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -19.45 | 215.81 | -51.62 | 110.31 | 0.7904 | -571.0 | -530.1 | |
| 1.95 | 3.36 | 1.59 | 2.75 | -20.42 | 215.25 | -52.18 | 111.42 | 0.7975 | -833.4 | -681.6 | |
| 0.62 | 1.59 | 0.51 | 1.31 | -20.69 | 215.02 | -52.41 | 111.71 | 0.8002 | -534.3 | -445.7 | |
| 0.00 | 1.95 | 0.00 | 1.60 | -20.33 | 214.98 | -52.45 | 111.27 | 0.8000 | -586.0 | -553.4 | |
| 1.59 | 4.95 | 1.26 | 3.90 | -17.00 | 216.37 | -51.06 | 107.29 | 0.7813 | -649.3 | -572.2 | |
| 0.00 | 1.33 | 0.00 | 1.05 | -16.79 | 216.45 | -50.98 | 107.03 | 0.7802 | -548.0 | -535.9 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -16.24 | 216.65 | -50.78 | 106.37 | 0.7775 | -548.0 | -462.3 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -20.51 | 214.79 | -52.64 | 111.45 | 0.8021 | -423.0 | -347.8 | |
| 0.00 | 3.45 | 0.00 | 2.84 | -20.08 | 214.89 | -52.54 | 110.93 | 0.8005 | -741.0 | -634.4 | |
| 0.00 | 1.41 | 0.00 | 1.14 | -18.47 | 215.62 | -51.81 | 109.04 | 0.7909 | -643.0 | -559.9 | |
| 0.00 | 1.06 | 0.00 | 0.84 | -16.69 | 216.04 | -51.40 | 106.86 | 0.7844 | -560.0 | -439.5 | |
| 0.00 | 5.13 | 0.00 | 4.27 | -20.35 | 214.38 | -53.05 | 111.19 | 0.8058 | -540.0 | -410.8 | |
| 4.07 | 51.73 | 3.31 | 42.55 | -18.65 | 215.13 | -52.30 | 109.20 | 0.7961 | -787.4 | -136.6 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -20.13 | 214.39 | -53.05 | 110.92 | 0.8055 | -503.0 | -470.2 | |
| 0.00 | 1.59 | 0.00 | 1.28 | -16.91 | 215.70 | -51.74 | 107.10 | 0.7882 | -425.0 | -375.9 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -19.84 | 214.31 | -53.12 | 110.55 | 0.8057 | -529.0 | -478.8 | |
| 5.04 | -82.00 | 4.15 | -82.00 | -19.05 | 214.63 | -52.80 | 109.62 | 0.8015 | -668.7 | 999999 | |
| 1.95 | 4.42 | 1.64 | 3.72 | -20.41 | 213.92 | -53.51 | 111.19 | 0.8103 | -461.1 | -318.2 | |
| 2.30 | -82.00 | 1.89 | -82.00 | -18.59 | 214.74 | -52.69 | 109.06 | 0.7999 | -611.9 | 999999 | |
| 3.98 | -82.00 | 3.28 | -82.00 | -18.79 | 214.59 | -52.84 | 109.30 | 0.8016 | -604.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.89 | -20.00 | 213.96 | -53.47 | 110.69 | 0.8093 | -367.0 | -302.2 | |
| 0.00 | 1.06 | 0.00 | 0.85 | -16.44 | 215.52 | -51.91 | 106.47 | 0.7894 | -318.0 | -280.8 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -20.43 | 213.70 | -53.73 | 111.17 | 0.8125 | -122.0 | -149.3 | |
| 0.88 | 2.92 | 0.74 | 2.44 | -19.47 | 214.01 | -53.42 | 110.05 | 0.8082 | -530.6 | -464.5 | |
| 0.53 | 2.83 | 0.45 | 2.40 | -19.87 | 213.43 | -54.00 | 110.44 | 0.8142 | -397.7 | -366.5 | |
| 0.00 | 1.41 | 0.00 | 1.21 | -19.94 | 213.12 | -54.31 | 110.48 | 0.8172 | -254.0 | -195.2 | |
| 0.00 | 1.06 | 0.00 | 0.91 | -19.59 | 213.13 | -54.30 | 110.06 | 0.8167 | -389.0 | -320.8 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -19.19 | 213.17 | -54.26 | 109.57 | 0.8158 | -483.0 | -415.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
