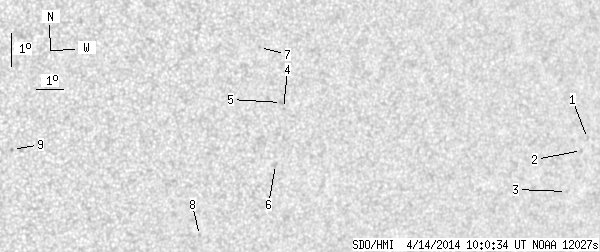

SDO HMI 2014-04-14 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.11 | 0.00 | 7.54 | -13.82 | 303.13 | 36.24 | 253.84 | 0.5952 | -261.8 | -154.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.68 | 0.00 | 1.17 | -13.11 | 311.74 | 44.85 | 257.08 | 0.7071 | 427.0 | 411.9 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -13.48 | 311.56 | 44.68 | 256.52 | 0.7054 | 600.0 | 485.4 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -14.76 | 311.22 | 44.34 | 254.66 | 0.7031 | 618.0 | 546.5 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -12.91 | 299.61 | 32.73 | 254.97 | 0.5477 | -500.0 | -463.5 | |
| 0.00 | 1.95 | 0.00 | 1.15 | -12.74 | 299.51 | 32.63 | 255.26 | 0.5459 | -809.0 | -633.8 | |
| 0.00 | 2.21 | 0.00 | 1.31 | -14.62 | 299.58 | 32.70 | 251.89 | 0.5521 | -670.0 | -543.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -11.12 | 298.50 | 31.61 | 257.98 | 0.5279 | -654.0 | -456.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -16.92 | 297.19 | 30.30 | 246.68 | 0.5278 | -515.0 | -371.4 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -14.57 | 290.29 | 23.41 | 247.05 | 0.4193 | -853.0 | -685.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
