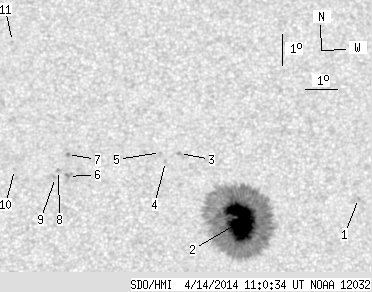

SDO HMI 2014-04-14 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.96 | 401.97 | 36.21 | 211.14 | 11.70 | 274.96 | 8.62 | 333.72 | 0.3334 | -1116.5 | -391.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.76 | 12.42 | 278.84 | 12.50 | 325.54 | 0.3753 | -760.0 | -565.3 | |
| 68.96 | 386.07 | 36.21 | 202.75 | 11.63 | 275.12 | 8.78 | 333.21 | 0.3331 | -1478.6 | -424.4 | |
| 0.00 | 1.94 | 0.00 | 1.03 | 13.76 | 273.29 | 6.95 | 340.50 | 0.3535 | -833.0 | -631.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 13.50 | 272.84 | 6.51 | 341.41 | 0.3471 | -806.0 | -637.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.79 | 272.69 | 6.36 | 342.07 | 0.3508 | -683.0 | -536.4 | |
| 0.00 | 4.33 | 0.00 | 2.27 | 13.00 | 269.82 | 3.49 | 349.50 | 0.3267 | 1050.0 | 790.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 13.70 | 269.80 | 3.47 | 349.95 | 0.3380 | 947.0 | 801.1 | |
| 0.00 | 1.59 | 0.00 | 0.83 | 13.19 | 269.52 | 3.18 | 350.51 | 0.3289 | 898.0 | 699.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 12.97 | 269.42 | 3.08 | 350.67 | 0.3250 | 733.0 | 632.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 13.22 | 268.16 | 1.82 | 354.54 | 0.3264 | 725.0 | 592.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 17.34 | 268.14 | 1.80 | 355.61 | 0.3935 | 676.0 | 538.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
