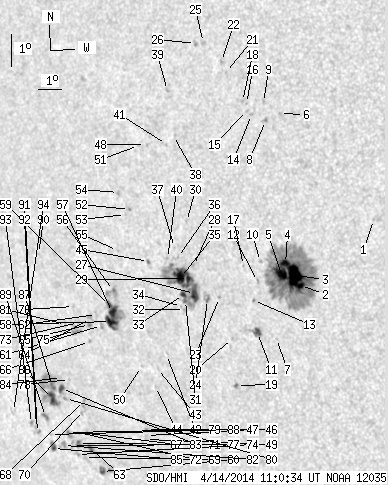

SDO HMI 2014-04-14 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.13 | 558.90 | 75.90 | 393.11 | -16.68 | 221.73 | -44.61 | 108.00 | 0.7072 | 186.9 | 90.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 11:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.55 | -14.44 | 229.99 | -36.35 | 106.61 | 0.6012 | 663.0 | 511.9 | |
| 3.80 | 239.93 | 2.47 | 156.30 | -16.26 | 226.69 | -39.64 | 108.58 | 0.6484 | 1158.3 | 351.4 | |
| 22.54 | -2.00 | 14.66 | -2.00 | -15.95 | 226.53 | -39.81 | 108.05 | 0.6498 | 1192.8 | 999999 | |
| 5.48 | -2.00 | 3.57 | -2.00 | -15.56 | 226.25 | -40.09 | 107.39 | 0.6523 | 968.7 | 999999 | |
| 8.84 | -2.00 | 5.79 | -2.00 | -15.88 | 226.01 | -40.33 | 107.82 | 0.6561 | 823.5 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -11.02 | 226.91 | -39.43 | 100.50 | 0.6362 | 697.0 | 479.3 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -17.81 | 225.29 | -41.04 | 110.49 | 0.6697 | -579.0 | -454.2 | |
| 0.00 | 1.41 | 0.00 | 0.91 | -11.20 | 226.32 | -40.01 | 100.70 | 0.6442 | 783.0 | 667.8 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -10.65 | 226.33 | -40.00 | 99.85 | 0.6435 | 650.0 | 533.2 | |
| 0.00 | 1.50 | 0.00 | 0.99 | -15.43 | 225.25 | -41.09 | 106.96 | 0.6646 | 567.0 | 362.1 | |
| 3.45 | 7.78 | 2.32 | 5.23 | -17.58 | 224.56 | -41.78 | 109.95 | 0.6780 | -742.1 | -422.5 | |
| 0.00 | 2.03 | 0.00 | 1.35 | -16.03 | 224.98 | -41.36 | 107.79 | 0.6693 | 417.0 | 234.2 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -16.60 | 224.66 | -41.68 | 108.54 | 0.6744 | 604.0 | 484.9 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -10.98 | 225.80 | -40.54 | 100.30 | 0.6509 | 651.0 | 564.0 | |
| 0.00 | 1.41 | 0.00 | 0.92 | -10.85 | 225.62 | -40.72 | 100.08 | 0.6531 | 520.0 | 439.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -10.64 | 225.65 | -40.69 | 99.76 | 0.6524 | 709.0 | 563.1 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -15.51 | 224.52 | -41.82 | 106.91 | 0.6738 | 487.0 | 427.0 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -10.57 | 225.50 | -40.84 | 99.64 | 0.6543 | 613.0 | 515.1 | |
| 0.62 | 1.77 | 0.43 | 1.22 | -19.14 | 223.17 | -43.16 | 111.79 | 0.6983 | 768.1 | 640.3 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -17.70 | 223.45 | -42.88 | 109.82 | 0.6915 | 641.0 | 578.1 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -9.65 | 224.95 | -41.38 | 98.20 | 0.6608 | 598.0 | 495.7 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -9.31 | 224.84 | -41.50 | 97.68 | 0.6621 | 675.0 | 615.9 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -16.41 | 223.26 | -43.08 | 107.94 | 0.6909 | 772.0 | 691.6 | |
| 0.71 | 5.83 | 0.49 | 4.02 | -16.44 | 222.73 | -43.60 | 107.86 | 0.6973 | 801.4 | 708.7 | |
| 0.00 | 2.12 | 0.00 | 1.41 | -8.69 | 224.19 | -42.15 | 96.72 | 0.6702 | 717.0 | 501.1 | |
| 0.00 | 2.48 | 0.00 | 1.66 | -8.70 | 223.86 | -42.48 | 96.72 | 0.6745 | 675.0 | 511.1 | |
| 9.19 | 80.71 | 6.38 | 56.38 | -16.22 | 222.23 | -44.11 | 107.45 | 0.7028 | 876.5 | 324.9 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -15.37 | 222.42 | -43.92 | 106.28 | 0.6990 | 736.0 | 662.4 | |
| 2.56 | -27.00 | 1.78 | -27.00 | -15.75 | 222.10 | -44.24 | 106.75 | 0.7035 | 988.6 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -14.02 | 222.46 | -43.87 | 104.36 | 0.6964 | 259.0 | 218.9 | |
| 0.97 | -27.00 | 0.68 | -27.00 | -16.41 | 221.78 | -44.56 | 107.61 | 0.7085 | 462.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -16.68 | 221.66 | -44.68 | 107.97 | 0.7104 | 407.0 | 325.4 | |
| 2.65 | -27.00 | 1.86 | -27.00 | -16.22 | 221.75 | -44.59 | 107.35 | 0.7085 | 497.8 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -16.58 | 221.55 | -44.78 | 107.81 | 0.7114 | 205.0 | 166.6 | |
| 7.78 | -27.00 | 5.43 | -27.00 | -15.70 | 221.76 | -44.57 | 106.61 | 0.7074 | 763.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -15.08 | 221.80 | -44.54 | 105.76 | 0.7060 | 669.0 | 561.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -14.77 | 221.75 | -44.59 | 105.31 | 0.7061 | 553.0 | 508.3 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -11.40 | 222.48 | -43.86 | 100.59 | 0.6933 | 593.0 | 559.3 | |
| 0.00 | 1.86 | 0.00 | 1.27 | -10.03 | 222.48 | -43.86 | 98.61 | 0.6924 | 614.0 | 528.9 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -15.08 | 221.36 | -44.98 | 105.68 | 0.7112 | 507.0 | 427.5 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -11.65 | 222.13 | -44.21 | 100.92 | 0.6978 | 327.0 | 367.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -17.99 | 220.43 | -45.91 | 109.51 | 0.7271 | 507.0 | 531.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -18.38 | 219.88 | -46.46 | 109.93 | 0.7340 | 534.0 | 356.9 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -18.93 | 219.59 | -46.75 | 110.59 | 0.7383 | 537.0 | 473.4 | |
| 0.00 | 1.77 | 0.00 | 1.26 | -15.12 | 220.50 | -45.83 | 105.59 | 0.7213 | 386.0 | 311.2 | |
| 0.00 | 1.50 | 0.00 | 1.12 | -20.21 | 218.67 | -47.67 | 112.08 | 0.7510 | 657.0 | 566.5 | |
| 0.00 | 0.71 | 0.00 | 0.53 | -20.39 | 218.59 | -47.74 | 112.31 | 0.7522 | 454.0 | 425.1 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -11.59 | 221.23 | -45.10 | 100.75 | 0.7087 | 359.0 | 464.2 | |
| 0.00 | 0.88 | 0.00 | 0.66 | -20.51 | 218.49 | -47.84 | 112.44 | 0.7535 | 417.0 | 373.1 | |
| 0.00 | 0.44 | 0.00 | 0.33 | -18.27 | 219.17 | -47.16 | 109.63 | 0.7416 | 557.0 | 492.8 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -11.60 | 220.92 | -45.41 | 100.73 | 0.7124 | 471.0 | 374.5 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -13.49 | 220.09 | -46.25 | 103.29 | 0.7241 | 683.0 | 579.7 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -13.63 | 219.87 | -46.47 | 103.45 | 0.7268 | 343.0 | 302.0 | |
| 0.00 | 2.03 | 0.00 | 1.46 | -12.95 | 219.73 | -46.61 | 102.49 | 0.7277 | 584.0 | 503.3 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -14.69 | 219.22 | -47.12 | 104.81 | 0.7355 | 376.0 | 276.4 | |
| 0.53 | 9.99 | 0.39 | 7.38 | -15.88 | 218.67 | -47.66 | 106.34 | 0.7432 | -840.5 | -547.2 | |
| 5.30 | 34.04 | 3.94 | 25.26 | -16.54 | 218.41 | -47.92 | 107.18 | 0.7471 | -991.2 | -657.5 | |
| 7.43 | -57.00 | 5.53 | -57.00 | -16.81 | 218.23 | -48.11 | 107.50 | 0.7495 | -809.0 | 999999 | |
| 2.03 | -57.00 | 1.51 | -57.00 | -16.32 | 218.35 | -47.99 | 106.87 | 0.7475 | -679.0 | 999999 | |
| 1.86 | 8.31 | 1.47 | 6.54 | -21.34 | 216.00 | -50.34 | 112.95 | 0.7809 | -679.0 | -622.0 | |
| 0.00 | 2.74 | 0.00 | 2.06 | -16.90 | 217.77 | -48.57 | 107.55 | 0.7547 | -644.0 | -406.6 | |
| 0.00 | 2.65 | 0.00 | 2.00 | -16.55 | 217.65 | -48.68 | 107.07 | 0.7554 | -514.0 | -412.6 | |
| 2.21 | 3.54 | 1.75 | 2.80 | -20.60 | 215.74 | -50.60 | 111.95 | 0.7821 | -830.5 | -722.2 | |
| 0.00 | 3.36 | 0.00 | 2.55 | -16.65 | 217.33 | -49.01 | 107.15 | 0.7591 | -670.0 | -548.4 | |
| 0.44 | 1.59 | 0.34 | 1.21 | -16.83 | 217.22 | -49.12 | 107.36 | 0.7605 | -701.8 | -602.8 | |
| 0.00 | 1.33 | 0.00 | 1.01 | -17.34 | 217.04 | -49.30 | 108.01 | 0.7633 | -611.0 | -508.3 | |
| 0.00 | 1.59 | 0.00 | 1.26 | -20.13 | 215.80 | -50.54 | 111.37 | 0.7806 | -831.0 | -735.9 | |
| 0.00 | 1.33 | 0.00 | 1.04 | -19.11 | 216.09 | -50.24 | 110.13 | 0.7759 | -731.0 | -659.2 | |
| 0.00 | 2.03 | 0.00 | 1.62 | -20.85 | 215.31 | -51.02 | 112.18 | 0.7868 | -546.0 | -495.3 | |
| 0.00 | 3.71 | 0.00 | 2.92 | -19.41 | 215.91 | -50.42 | 110.48 | 0.7783 | -636.0 | -608.7 | |
| 1.77 | 4.16 | 1.41 | 3.32 | -20.40 | 215.22 | -51.12 | 111.60 | 0.7870 | -827.8 | -711.7 | |
| 0.00 | 1.15 | 0.00 | 0.91 | -20.06 | 215.37 | -50.97 | 111.20 | 0.7849 | -638.0 | -548.5 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -16.73 | 216.72 | -49.61 | 107.16 | 0.7657 | -581.0 | -498.8 | |
| 0.00 | 2.48 | 0.00 | 1.99 | -20.73 | 215.01 | -51.33 | 111.98 | 0.7896 | -616.0 | -446.0 | |
| 0.00 | 6.37 | 0.00 | 4.91 | -16.96 | 216.49 | -49.84 | 107.43 | 0.7685 | -724.0 | -642.6 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -16.23 | 216.66 | -49.68 | 106.50 | 0.7658 | -457.0 | -412.5 | |
| 0.00 | 3.45 | 0.00 | 2.78 | -20.44 | 214.89 | -51.45 | 111.58 | 0.7903 | -402.0 | -418.3 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -18.42 | 215.63 | -50.71 | 109.17 | 0.7797 | -551.0 | -555.6 | |
| 0.88 | 3.80 | 0.71 | 3.05 | -20.03 | 214.88 | -51.46 | 111.07 | 0.7898 | -688.8 | -643.5 | |
| 0.00 | 1.33 | 0.00 | 1.06 | -18.98 | 215.19 | -51.15 | 109.80 | 0.7850 | -764.0 | -688.1 | |
| 0.00 | 1.68 | 0.00 | 1.30 | -16.74 | 216.08 | -50.26 | 107.08 | 0.7726 | -445.0 | -399.2 | |
| 0.00 | 4.51 | 0.00 | 3.66 | -20.40 | 214.44 | -51.90 | 111.46 | 0.7947 | -515.0 | -437.7 | |
| 2.74 | 6.45 | 2.18 | 5.14 | -18.66 | 215.12 | -51.22 | 109.39 | 0.7852 | -806.8 | -684.7 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -18.33 | 215.26 | -51.08 | 108.99 | 0.7833 | -217.0 | -253.9 | |
| 1.68 | 5.04 | 1.38 | 4.14 | -20.46 | 213.89 | -52.45 | 111.43 | 0.8002 | -392.7 | -356.4 | |
| 7.96 | 42.43 | 6.42 | 34.24 | -18.93 | 214.54 | -51.79 | 109.64 | 0.7914 | -615.0 | -72.5 | |
| 2.30 | -86.00 | 1.85 | -86.00 | -18.57 | 214.70 | -51.64 | 109.20 | 0.7893 | -606.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.58 | -20.02 | 213.94 | -52.40 | 110.89 | 0.7990 | -376.0 | -335.1 | |
| 1.41 | 3.36 | 1.16 | 2.75 | -19.45 | 213.94 | -52.39 | 110.19 | 0.7981 | -594.9 | -463.5 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -14.51 | 215.51 | -50.82 | 104.13 | 0.7762 | -214.0 | -262.3 | |
| 0.00 | 1.94 | 0.00 | 1.62 | -19.91 | 213.30 | -53.03 | 110.65 | 0.8050 | -339.0 | -323.2 | |
| 0.00 | 1.68 | 0.00 | 1.39 | -19.75 | 213.32 | -53.01 | 110.46 | 0.8046 | -424.0 | -412.7 | |
| 0.00 | 1.94 | 0.00 | 1.62 | -19.61 | 213.12 | -53.21 | 110.25 | 0.8063 | -433.0 | -386.0 | |
| 0.00 | 2.56 | 0.00 | 2.17 | -19.17 | 212.36 | -53.97 | 109.60 | 0.8131 | -270.0 | -217.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
