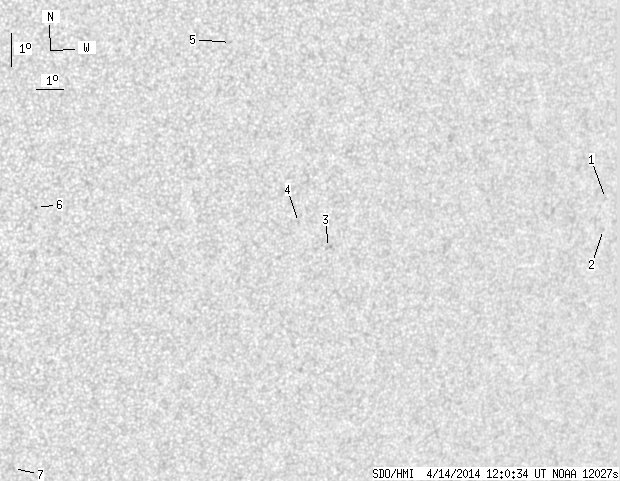

SDO HMI 2014-04-14 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.67 | 0.00 | 5.31 | -15.15 | 300.51 | 34.72 | 250.84 | 0.5814 | -336.3 | -296.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.69 | -13.21 | 311.73 | 45.94 | 257.06 | 0.7201 | 559.0 | 474.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -14.15 | 311.87 | 46.09 | 255.78 | 0.7229 | 486.0 | 424.4 | |
| 0.00 | 2.74 | 0.00 | 1.67 | -15.38 | 300.84 | 35.05 | 251.41 | 0.5864 | -648.0 | -557.2 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -14.69 | 299.58 | 33.79 | 252.17 | 0.5673 | -660.0 | -523.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -9.38 | 296.39 | 30.60 | 261.12 | 0.5104 | -689.0 | -491.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -14.65 | 290.23 | 24.44 | 247.60 | 0.4348 | -804.0 | -609.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -22.72 | 290.67 | 24.88 | 232.12 | 0.4937 | -598.0 | -399.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
