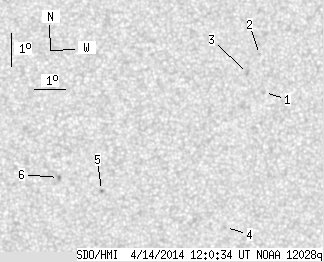

SDO HMI 2014-04-14 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.49 | 0.00 | 4.43 | -9.65 | 283.78 | 18.00 | 255.60 | 0.3171 | 228.0 | 163.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.23 | 286.21 | 20.42 | 261.59 | 0.3506 | 552.0 | 513.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.09 | 285.99 | 20.20 | 264.82 | 0.3456 | 776.0 | 558.7 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -7.67 | 285.63 | 19.84 | 263.04 | 0.3403 | 920.0 | 723.5 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -12.34 | 285.20 | 19.41 | 249.44 | 0.3483 | -798.0 | -590.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -11.33 | 281.15 | 15.36 | 248.49 | 0.2803 | 790.0 | 688.9 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -10.97 | 279.76 | 13.98 | 248.07 | 0.2568 | -872.0 | -752.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
