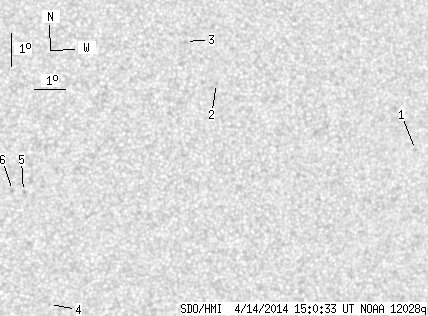

SDO HMI 2014-04-14 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.02 | 0.00 | 3.19 | -9.42 | 284.79 | 20.65 | 257.23 | 0.3592 | -22.8 | 81.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.75 | -9.27 | 292.56 | 28.42 | 260.95 | 0.4775 | 648.0 | 449.3 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -7.55 | 285.76 | 21.62 | 263.75 | 0.3690 | 711.0 | 570.3 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -6.32 | 284.69 | 20.55 | 267.06 | 0.3509 | 842.0 | 686.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -14.38 | 280.78 | 16.64 | 240.68 | 0.3196 | -784.0 | -675.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -10.98 | 279.73 | 15.59 | 249.91 | 0.2822 | -683.0 | -574.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -10.96 | 279.38 | 15.24 | 249.60 | 0.2766 | -871.0 | -654.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
