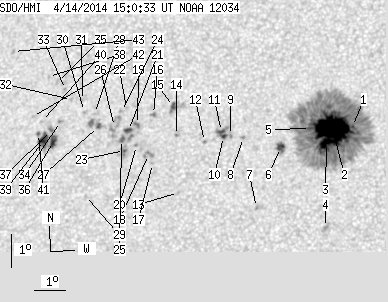

SDO HMI 2014-04-14 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105.44 | 592.03 | 55.99 | 313.93 | 4.05 | 245.90 | -18.24 | 61.94 | 0.3541 | -401.5 | -200.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-14 15:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.71 | 449.54 | 0.37 | 235.93 | 4.12 | 248.16 | -15.98 | 58.86 | 0.3222 | -1160.0 | -408.6 | |
| 64.51 | -1.00 | 33.84 | -1.00 | 4.08 | 247.53 | -16.61 | 59.96 | 0.3308 | -1447.5 | 999999 | |
| 10.34 | -1.00 | 5.42 | -1.00 | 3.63 | 247.35 | -16.79 | 61.42 | 0.3297 | -1287.1 | 999999 | |
| 0.00 | 4.60 | 0.00 | 2.39 | 1.08 | 247.35 | -16.79 | 68.64 | 0.3115 | -947.0 | -728.0 | |
| 2.39 | -1.00 | 1.26 | -1.00 | 4.10 | 246.84 | -17.30 | 60.93 | 0.3409 | -869.6 | 999999 | |
| 3.98 | 9.28 | 2.10 | 4.90 | 3.55 | 245.90 | -18.24 | 63.62 | 0.3502 | -1036.3 | -703.8 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 1.75 | 245.16 | -18.97 | 69.20 | 0.3492 | -812.0 | -708.7 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 3.89 | 244.72 | -19.42 | 64.22 | 0.3700 | -1076.0 | -876.5 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 3.97 | 244.30 | -19.84 | 64.53 | 0.3767 | -919.0 | -754.1 | |
| 1.59 | 9.99 | 0.85 | 5.35 | 3.95 | 244.07 | -20.07 | 64.84 | 0.3798 | -1011.8 | -650.5 | |
| 1.86 | -10.00 | 0.99 | -10.00 | 4.10 | 244.01 | -20.13 | 64.55 | 0.3819 | -829.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.81 | 3.82 | 243.47 | -20.67 | 65.82 | 0.3878 | -577.0 | -469.4 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 2.30 | 242.66 | -21.48 | 70.25 | 0.3905 | 777.0 | 617.3 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 4.03 | 242.56 | -21.58 | 66.27 | 0.4026 | 781.0 | 582.2 | |
| 1.86 | 7.95 | 1.01 | 4.31 | 4.92 | 242.43 | -21.71 | 64.40 | 0.4104 | 1007.5 | 757.1 | |
| 0.00 | 2.30 | 0.00 | 1.25 | 4.70 | 241.79 | -22.35 | 65.55 | 0.4181 | 1045.0 | 869.5 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 3.21 | 241.80 | -22.34 | 68.88 | 0.4086 | 813.0 | 567.8 | |
| 0.00 | 5.57 | 0.00 | 3.02 | 3.49 | 241.66 | -22.48 | 68.37 | 0.4123 | 815.0 | 844.5 | |
| 0.00 | 3.00 | 0.00 | 1.64 | 4.42 | 241.27 | -22.87 | 66.67 | 0.4237 | 921.0 | 819.5 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 3.78 | 241.26 | -22.88 | 68.08 | 0.4200 | 919.0 | 825.6 | |
| 2.30 | 7.51 | 1.26 | 4.11 | 4.25 | 240.98 | -23.16 | 67.31 | 0.4269 | 1045.6 | 889.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 4.95 | 240.89 | -23.25 | 65.88 | 0.4326 | 748.0 | 608.4 | |
| 0.53 | 5.92 | 0.29 | 3.24 | 3.64 | 240.87 | -23.27 | 68.73 | 0.4249 | 1111.3 | 841.5 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 4.84 | 240.73 | -23.41 | 66.28 | 0.4342 | 894.0 | 726.9 | |
| 0.00 | 4.06 | 0.00 | 2.23 | 3.98 | 240.76 | -23.38 | 68.08 | 0.4285 | 946.0 | 814.8 | |
| 0.00 | 14.23 | 0.00 | 7.82 | 4.39 | 240.52 | -23.62 | 67.43 | 0.4345 | 758.0 | 681.0 | |
| 0.97 | 10.52 | 0.54 | 5.81 | 4.41 | 239.99 | -24.15 | 67.84 | 0.4423 | 1035.6 | 788.0 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 4.81 | 239.84 | -24.30 | 67.13 | 0.4468 | 701.0 | 578.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 2.33 | 239.61 | -24.53 | 72.61 | 0.4365 | 528.0 | 394.8 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 4.89 | 239.51 | -24.63 | 67.27 | 0.4521 | 733.0 | 576.2 | |
| 0.00 | 1.59 | 0.00 | 0.88 | 5.23 | 239.43 | -24.71 | 66.64 | 0.4553 | 734.0 | 572.4 | |
| 0.00 | 1.59 | 0.00 | 0.89 | 5.28 | 239.06 | -25.08 | 66.87 | 0.4609 | 792.0 | 638.2 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 5.59 | 238.85 | -25.29 | 66.43 | 0.4659 | 681.0 | 647.9 | |
| 0.00 | 1.86 | 0.00 | 1.04 | 4.62 | 238.72 | -25.42 | 68.47 | 0.4618 | 987.0 | 790.4 | |
| 0.00 | 2.30 | 0.00 | 1.29 | 5.85 | 238.57 | -25.57 | 66.16 | 0.4714 | 583.0 | 558.7 | |
| 5.21 | 23.24 | 2.91 | 12.99 | 4.02 | 238.51 | -25.63 | 69.86 | 0.4616 | 1060.7 | 620.1 | |
| 0.44 | 3.27 | 0.25 | 1.83 | 4.36 | 238.43 | -25.71 | 69.23 | 0.4646 | 944.6 | 758.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 6.02 | 238.26 | -25.88 | 66.10 | 0.4768 | 579.0 | 460.0 | |
| 8.22 | -36.00 | 4.60 | -36.00 | 4.06 | 238.17 | -25.97 | 70.02 | 0.4667 | 917.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 4.65 | 238.08 | -26.06 | 68.92 | 0.4712 | 700.0 | 540.8 | |
| 0.53 | 1.59 | 0.30 | 0.89 | 4.28 | 237.99 | -26.15 | 69.71 | 0.4704 | 675.5 | 544.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 4.81 | 237.77 | -26.37 | 68.83 | 0.4766 | 636.0 | 494.6 | |
| 0.00 | 1.68 | 0.00 | 0.96 | 6.84 | 237.03 | -27.11 | 65.57 | 0.4990 | 736.0 | 546.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
